EV20056-J-00A

Active

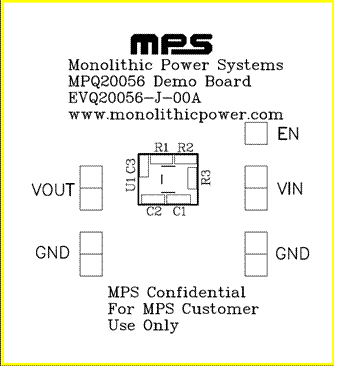

Fast Transient Response, Ultra-Small 250mA Linear Regulator EV Board

  • Quantity Price
  • 1
    $25.00 /unit
In stock

Arrives 3-4 business days.
Shipping only $5 per order.

Talk to an Engineer or get a Quote

Datasheet (EN)

You have a basic account.
A myMPS+ account is needed.

Upgrade to myMPS+

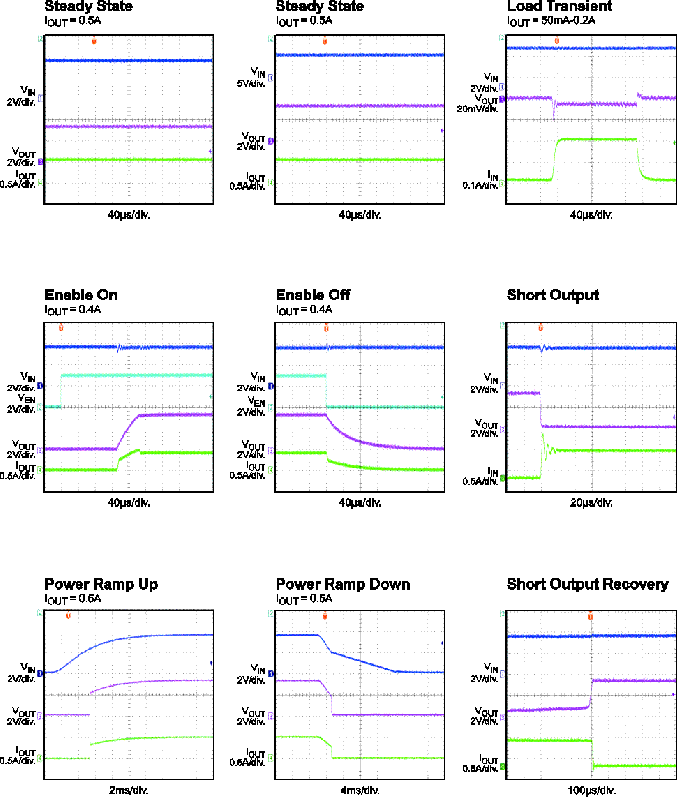

Product Description

The EV20056-J-00A evaluation board demonstrates the performance of MP20056-33, a low noise, low dropout and high PSRR linear regulator. It operates from a 3.7V to 5.5V input voltage and the output voltage is preset internallyat 3.3V.

The EV20056-J-00A can supply up to 250mA of load current, and features current limiting, over temperature protection.

An internal PMOS pass element is used to allow a low 150uA ground current, making the MP20056-J suitable for battery-power devices.

Product Features

  • Up to 250mA Output Current
  • Low 100mV Dropout at 250mA
  • Fast Transient Response
  • 70dB PSRR at 1kHz
  • 13μVRMS Low Noise Output
  • Fixed output voltage 3.3V
  • Current Limit and Thermal Protection

Parametrics

  • IC Supported 1MP2005

MP2005


800mA High PSRR, ULDO Linear Regulator
