EV20051-Q-00A

EV20051-Q-00A

Low Noise, High PSRR, 1A Linear Regulator EV Board

Datasheet

Description

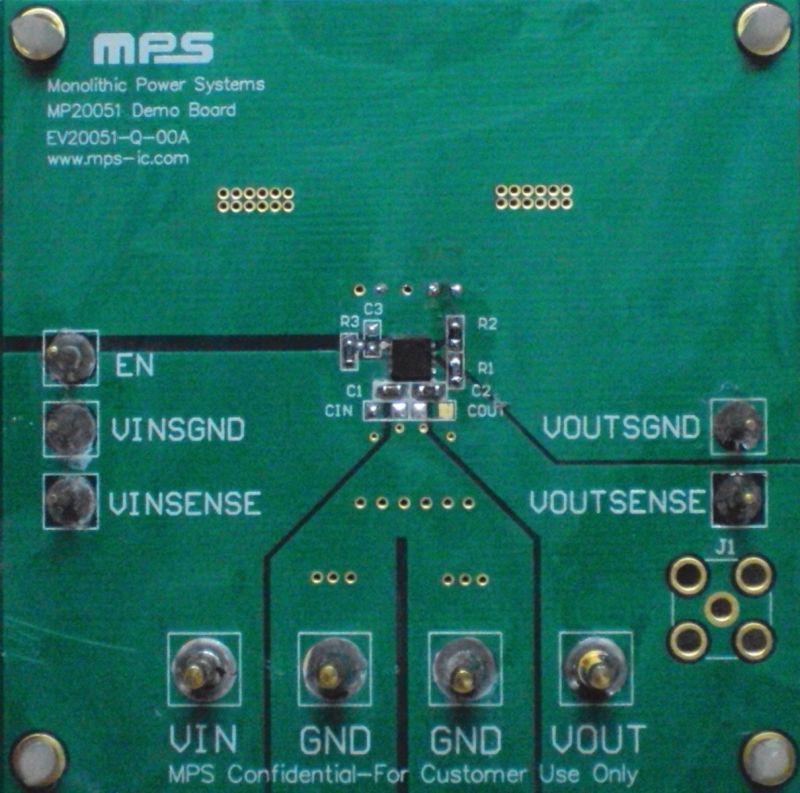

The EV20051-Q-00A evaluation board demonstrates the performance of MP20051, a low noise, low dropout and high PSRR linear regulator. It operates from a 2.5V to 5.5V input voltage and the output voltage can be set externally which ranges from 0.8V to 5V.

The EV20051-Q-00A can supply up to 1A of load current, and features current limiting, over temperature protection.

An internal PMOS pass element is used to allow a low 110μA ground current, marking the MP20051 suitable for battery-power devices.

Product Evaluated

Features & Benefits

Up to 1A Output Current
Low 140mV Dropout at 1A
Adjustable Output from 0.8V to 5V
63dB PSRR at 1kHz
13μVRMS Low Noise Output
Very Fast Transient Responses
Current Limit and Thermal Protection

Active Part Numbers:

EV20051-Q-00A

Buy direct from MPS

Standard Pricing

Quantity Price
1

$25.00 /unit

In stock

Arrives 3-4 business days. Shipping only $5 per order.

Quantity

100 Max per Company.
Limited Inventory to support product development.
