EV1W0505A-Y-00A

EV1W0505A-Y-00A

1W, Semi-Regulated, 3kV_DC Isolated DC/DC Converter Evaluation Board

Description

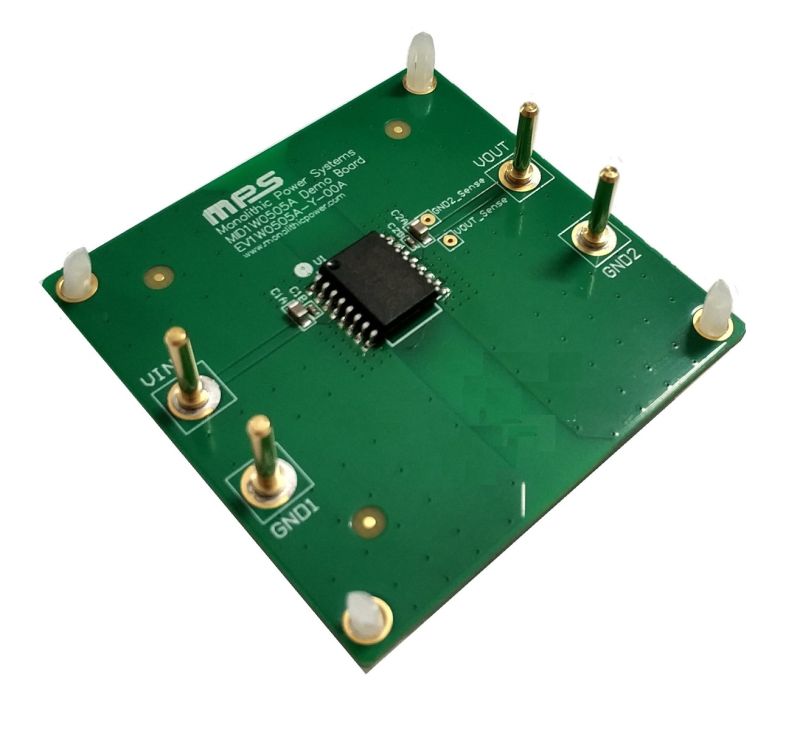

The EV1W0505A-Y-00A is an evaluation board designed to demonstrate the capabilities of the MID1W0505A-3, a semi-regulated, isolated DC/DC converter. The MID1W0505A-3 supports a 3kV_DC isolation voltage.

The device integrates a power MOSFET, transformer, and feedback circuit in one chip. The DC/DC converter is a compact solution with reliable operation compared to traditional isolated power modules.

It is recommended to read the datasheet for the MID1W0505A-3 prior to making any changes to the EV1W0505A-Y-00A.

Product Evaluated

MID1W0505AGY-3S

1W, Semi-Regulated, 3kV_DC Isolated DC/DC Converter

Features & Benefits

4.5V to 5.5V Operating Input Voltage (V_IN) Range
3kV_DC Isolation Voltage
Up to 1W Output Power (P_OUT)
54% Max Efficiency with Full Loads
0.4% Load Regulation
1.5% Line Regulation
Excellent Transient Response
Short-Circuit Protection (SCP) with Hiccup Mode
Over-Temperature Protection (OTP)
Meets CISPR32 Class B Emissions
CB Certification According to IEC62368-1 (In Progress)
-40°C to +125° Operating Temperature Range
Available in an SOICW-16 Package

Active Part Numbers:

EV1W0505A-Y-00A
