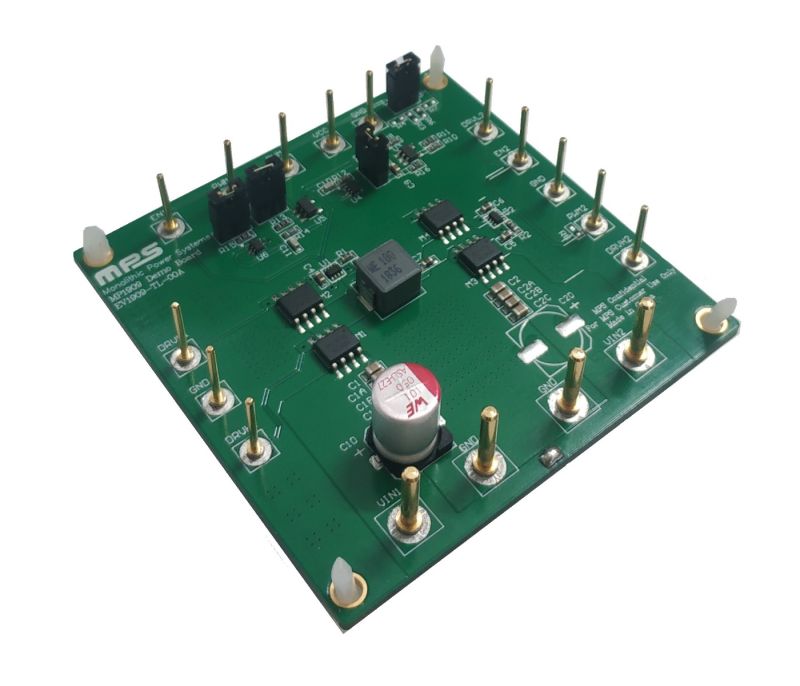

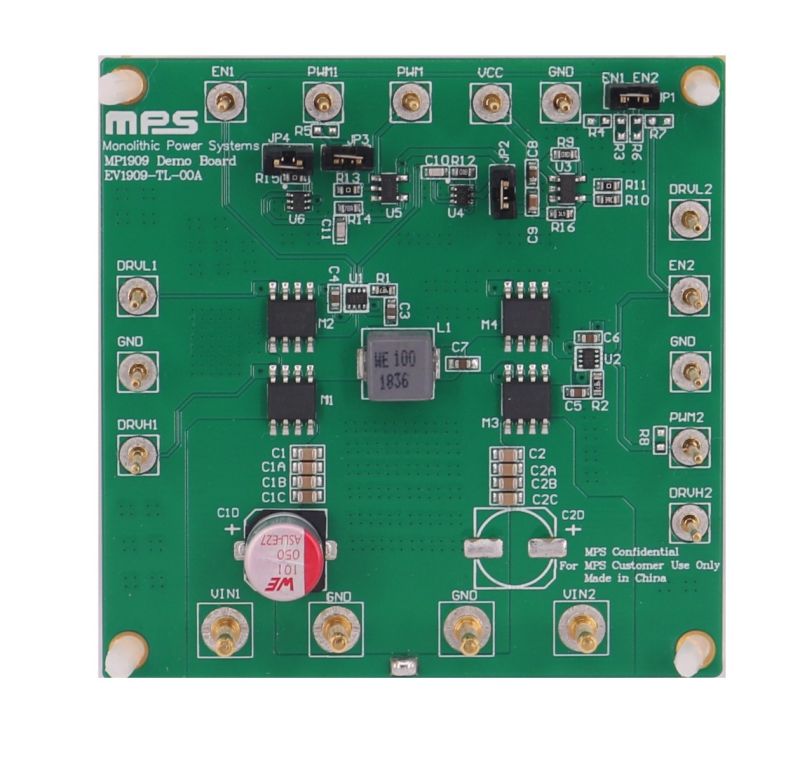

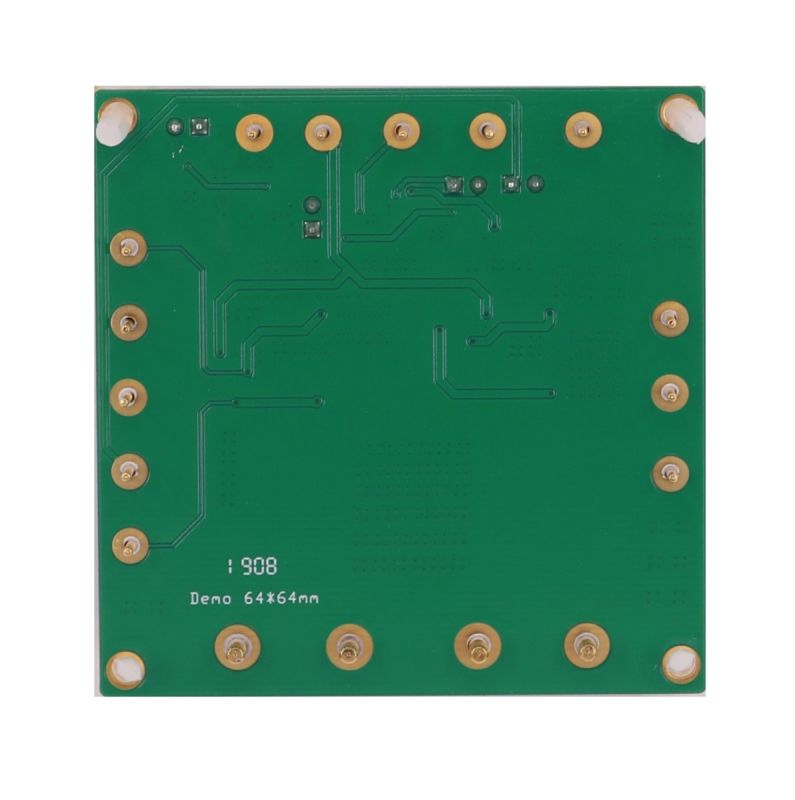

The EV1909-TL-00A is an evaluation board designed to demonstrate the capabilities of the MP1909, a high-frequency, half-bridge, N-channel power MOSFET gate driver. Its high-side (HS) and low-side (LS) driver channels are controlled via a signal input. If the enable (EN) pin is pulled low, both the HS and LS outputs are disabled.

Internal dead-time (DT) control reduces switching power losses and prevents shoot-through. The integrated bootstrap (BST) diode reduces the external component count. Full protection features include under-voltage lockout (UVLO) protection and thermal shutdown.

The MP1909 is available in an SOT583-8 (1.6mmx2.1mm) package.
