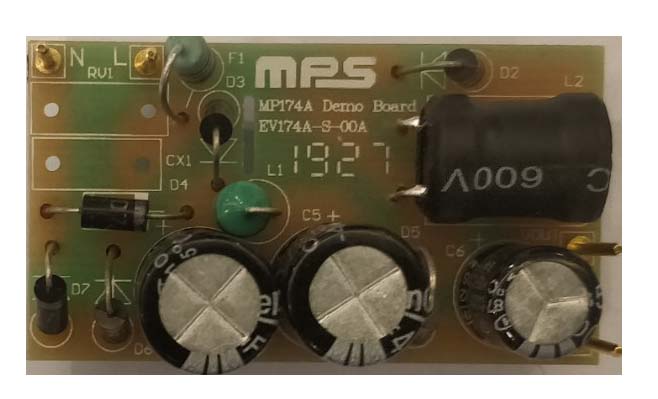

The EV174-S-00A Evaluation Board is designed to demonstrate the capabilities of MP174. The MP174 is a primary-side constant voltage regulator providing accurate constant voltage (CV) regulation without Opto-coupler. It supports Buck, Buck-Boost, Boost and Flyback topologies.
The EV174-S-00A Evaluation Board is designed as Buck application. EV174-S-00A typically drives a 3.6W with a 12V/300mA load from 85VAC to 265VAC, at 60/50Hz.
The EV174-S-00A has an excellent efficiency and meets IEC61000-4-5 surge immunity and EN55022 conducted EMI requirements. MP174 features various protections, including thermal shutdown (TSD), VCC under-voltage lockout (UVLO), over-load protection (OLP), short- circuit protection (SCP), and open loop protection.
MP174GS is available in SOIC8 package
Show moreShow less
Log in to your account
Create New Account
Forgot Password
Log in to continue
myMPS+
A Plus account is required to perform this action.
Log in to your myMPS+ account or create one now.
Don’t have a myMPS+ account yet?
Get early access to new products, datasheets, and free samples.
""• Primary-Side non-isolated Constant Voltage (CV) Control • Integrated 700V13.5? MOSFET • < 100mW No-load power consumption • Up to 3.6W output power • Peak-Current Control with Peak Current Compression • Low Vcc operating current • Limited Maximum Frequency • Frequency Foldback • Multiple Protections: SCP, OCP, OTP, and VCC UVLO • Low Cost and Simple External circuit • Internal high-voltage current source""
Show moreShow less
Active Part Numbers:
EV174-S-00A
