EV174-J-00A

NOT RECOMMENDED FOR NEW DESIGNS

Universal Input, Non-Isolated Off-line Regulator Evaluation Board for TSOT23-5 package

ALTERNATIVE PART

NRFND Datasheet

The EV174A-J-00A continues to be in production for existing customers. Please consider this alternative for new designs:

EV174A-J-00A

Universal Input, Non-Isolated Off-Line Regulator With Improved EMI Performance Evaluation Board

Features & Benefits

Primary-Side non-isolated Constant Voltage (CV) Control
< 30mW No-load power consumption
Up to 3.6W output power
Good EMI performance
Limited Maximum Frequency
Multiple Protections: SCP, OCP, OTP, OLD and VCC UVLO
Low Cost and Simple External circuit

… and many more!

Description

The EV174-J-00A Evaluation Board is designed to demonstrate the capabilities of MP174. The MP174 is a primary-side constant voltage regulator providing accurate constant voltage (CV) regulation without Opto-coupler. It supports Buck, Buck-Boost, Boost and Flyback topologies.

The EV174-J-00A Evaluation Board is designed as Buck application. EV174-J-00A typically drives a 3.6W with a 12V/300mA load from 85VAC to 265VAC, at 60/50Hz.

The EV174-J-00A has an excellent efficiency and meets IEC61000-4-5 surge immunity and EN55022 conducted EMI requirements. MP174 features various protections, including thermal shutdown (TSD), VCC under-voltage lockout (UVLO), over-load protection (OLP), short- circuit protection (SCP), and open loop protection.

MP174GJ is available in TSOT23-5 package.

Product Evaluated

MP174

700V Non-Isolated Regulator up to 400mA Output Current

Features & Benefits

""• Primary-Side non-isolated Constant Voltage (CV) Control • Integrated 700V13.5? MOSFET • < 100mW No-load power consumption • Up to 3.6W output power • Peak-Current Control with Peak Current Compression • Low Vcc operating current • Limited Maximum Frequency • Frequency Foldback • Multiple Protections: SCP, OCP, OTP, and VCC UVLO • Low Cost and Simple External circuit • Internal high-voltage current source""

Active Part Numbers:

EV174-J-00A

Buy direct from MPS

Quantity Price
1

$25.00 /unit

In stock

Arrives 3-4 business days.
Shipping only $5 per order.

Quantity

100 Max per Company.
Limited Inventory to support product development.

Talk to an Engineer or get a Quote

SEE ALL BUYING OPTIONS

View distributor pricing and availability

EV174-J-00A

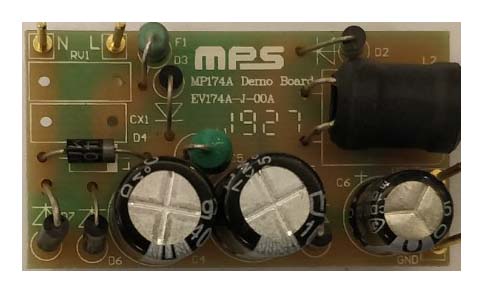

EV174A-J-00A
