EV1720DQ-12-00A

EV1720DQ-12-00A

2.7W Mono Class D Low-EMI Audio Amplifier EV Board

Datasheet

Description

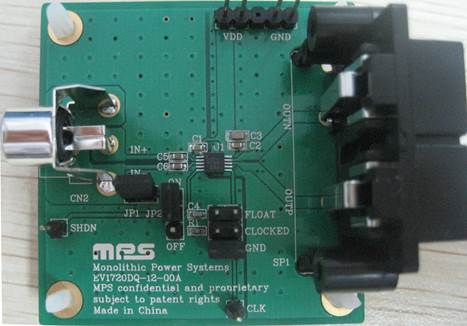

The EV1720DQ-12-00A is the evaluation board for the MP1720DQ-012, a low-power mono BTL class-D audio amplifier. MP1720DQ-012 is one of MPS’ products, which is low EMI, high efficiency, and full bridge output.

The EV board can also be used to evaluate the MP1720DQ-003, MP1720DQ-006, MP1720DQ-009, and MP1720DQ-216 (with IC replacement).

Product Evaluated

Features & Benefits

Pass FCC-Radiated Emissions Standards with 24inch Cable without output filter
2.7W Into 4Ω with 5 V VIN @ 10% THD+N
Up to 90% Efficiency
Flexible Switching Frequency setting
2.5V~5.5V Operation from a Single Supply
Low Noise (53μV Typical) with 3.3 V VIN
Low Quiescent Current (4mA @3.3 V)

Active Part Numbers:

EV1720DQ-12-00A

Buy direct from MPS

Standard Pricing

Quantity Price
1

$50.00 /unit

In stock

Arrives 3-4 business days. Shipping only $5 per order.

Quantity

100 Max per Company.
Limited Inventory to support product development.
