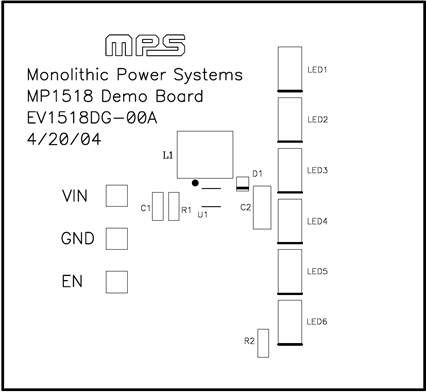

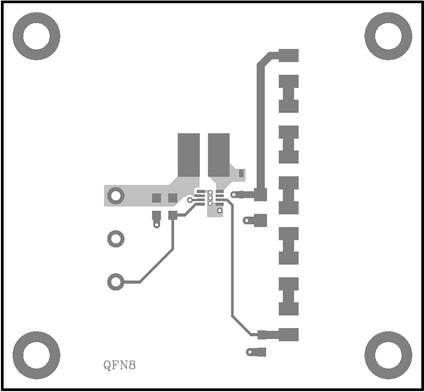

The EV1518DG-00A is an evaluation board for the MP1518, a step-up converter designed for driving up to 6 series white LEDs from a single cell Lithium Ion battery. The MP1518 uses current mode, fixed frequency architecture to regulate the LED current, which is measured through an external current sense resistor. Its low 104mV feedback voltage reduces power loss and improves efficiency. The OV pin monitors the output voltage and turns off the converter if an over-voltage condition is present due to an open circuit condition.
The MP1518 includes under-voltage lockout, current limiting and thermal overload protection preventing damage in the event of an output overload.
Show moreShow less
Log in to your account
Your email must be verified before you can log in. A message with a link to complete the verification process has been sent to your email address.
Create New Account
Forgot Password
Log in to continue
myMPS+
A Plus account is required to perform this action.
Log in to your myMPS+ account or create one now.
Don’t have a myMPS+ account yet?
Get early access to new products, datasheets, and free samples.
""• On Board Power MOSFET • Drives up to 6 Series White LEDs • Up to 87% Efficiency • Over 1MHz Fixed Switching Frequency • Open Load Shutdown • Low 104mV Feedback Voltage • Soft Start/PWM Dimming • UVLO, Thermal Shutdown • Internal Current Limit""
