EV-EVK-RD-01A

EV-EVK-RD-01A

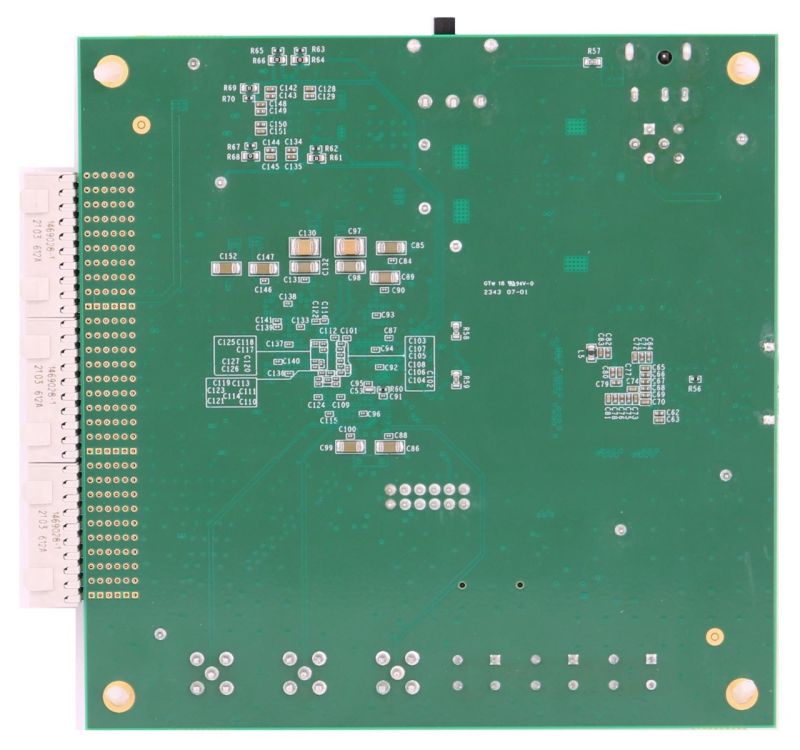

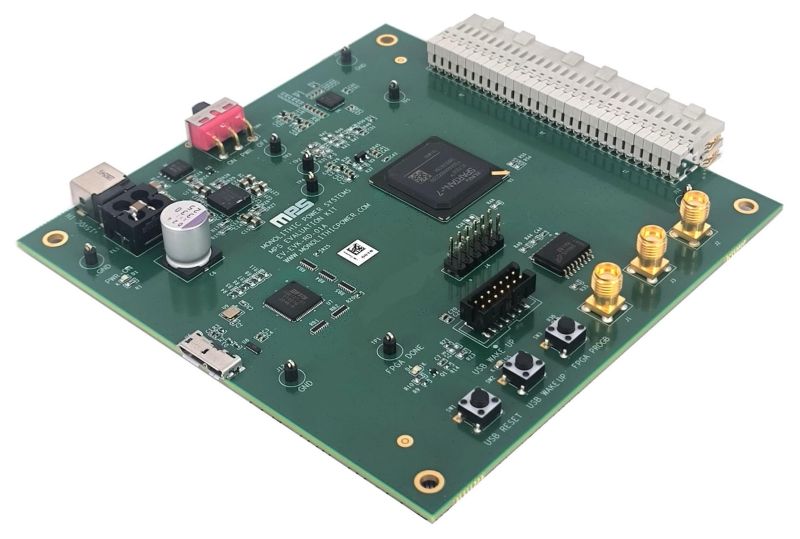

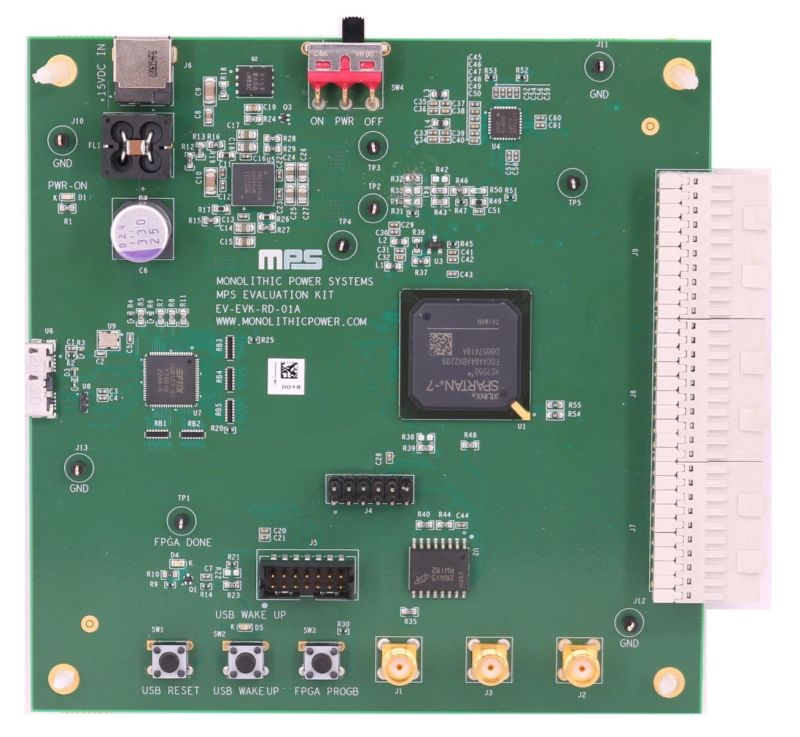

MPS Ultrasound Controller Board

Datasheet

Description

The EV-EVK-RD-01A is an ultrasound controller board that forms a key component of the MPS ultrasound IC evaluation kit, which includes the controller board and a compatible MPS ultrasound IC evaluation board.

Designed for versatility, the EV-EVK-RD-01A supports multiple evaluation board configurations. It connects to a PC via USB, and facilitates communication between the evaluation system and the PC using the MPS Ultrasound Test Bench software.

The EV-EVK-RD-01A user guide provides step-by-step instructions for setting up the controller board and establishing a reliable connection with the PC to enable seamless evaluation and testing of MPS ultrasound ICs.

Product Evaluated

MP4865AGBD

64-Channel, High-Voltage Analog Switch with Output Bleed Resistors and 5V Bias

MP4835AGRD

32-Channel, High-Voltage Analog Switch with Output Bleed Resistors and 5V Bias

MP4895A

96-Channel, High-Voltage Analog Switch with Output Bleed Resistors and 5V Bias

MP4898A

128-Channel, High-Voltage Analog Switch with Output Bleed Resistors and 5V Bias

Features & Benefits

Advanced Field-Programmable Gate Array (FPGA) Control Powered by the Spartan-7 XC7S50-2FGGA484C FPGA
Delivers Precise and Reliable Control Signals for Seamless Integration with MPS Ultrasound IC Evaluation Boards
Intuitive PC-Based Operation Enables Full System Control via a User-Friendly PC Graphical User Interface (GUI)
Communication Is Established through a High-Speed USB Interface, Streamlining Evaluation, Configuration, and Data Acquisition

Active Part Numbers:

EV-EVK-RD-01A

Buy direct from MPS

Standard Pricing

Quantity Price
1

$349.00 /unit

In stock

Ships after May 5th, Then arrives 3-4 business days. Shipping only $5 per order.

Quantity

100 Max per Company.
Limited Inventory to support product development.
