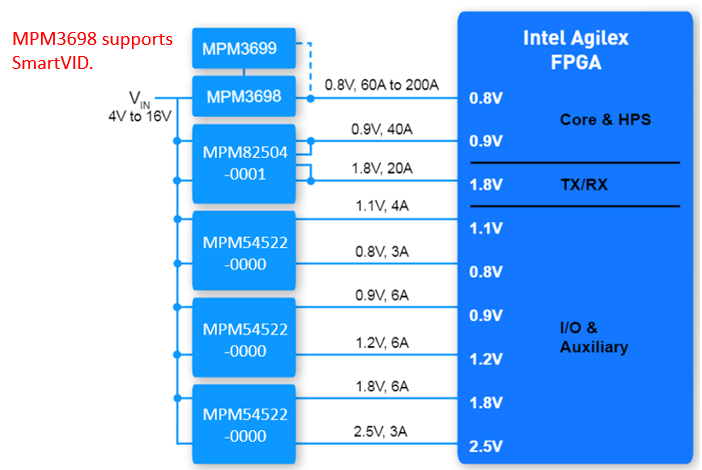

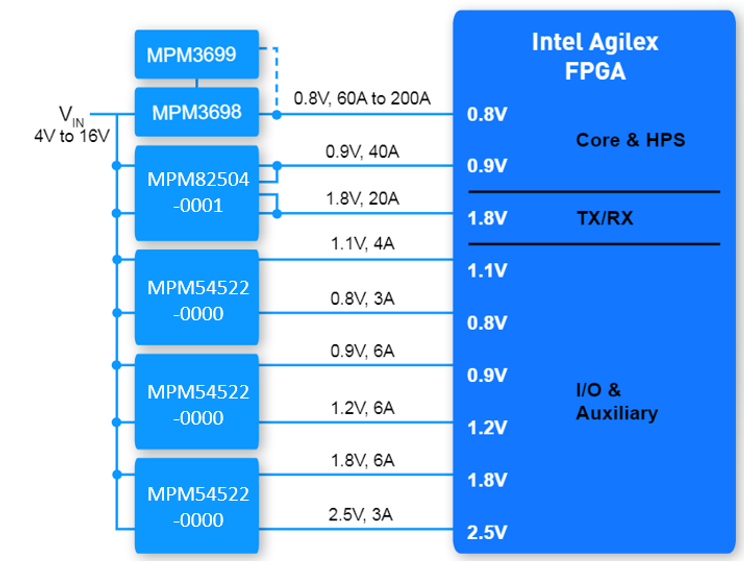

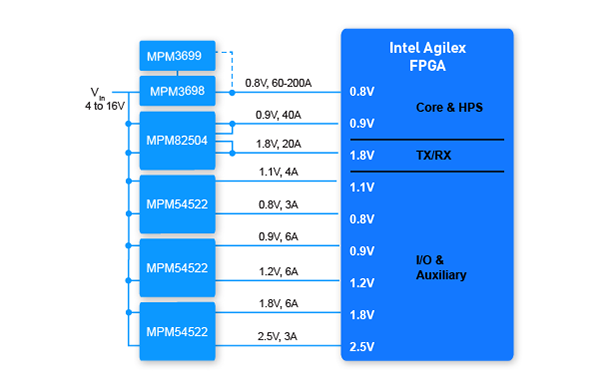

MPS Reference Designs for Intel FPGAs

Agilex part numbers

  • AGI 019
  • AGI 022
  • AGI 023
  • AGI 027
  • AGF 004
  • AGF 006
  • AGF 008
  • AGF 012
  • AGF 014
  • AGF 019
  • AGF 022
  • AGF 023
  • AGF 027

VIN  (V)

IOUT Max (A)

Recommended MPS Part Number



4 to 16 160A

MPM3699

4 to 16 120A

MPM3698

4 to 16 4 x 25A

MPM82504

4 to 16 2 x 6A

MPM54522
