EVMPC22157-2891-Split-02A

EVMPC22157-2891-Split-02A

130A, 8mm, Dual-Phase Intelli-Module^TM Evaluation Board

Datasheet

Description

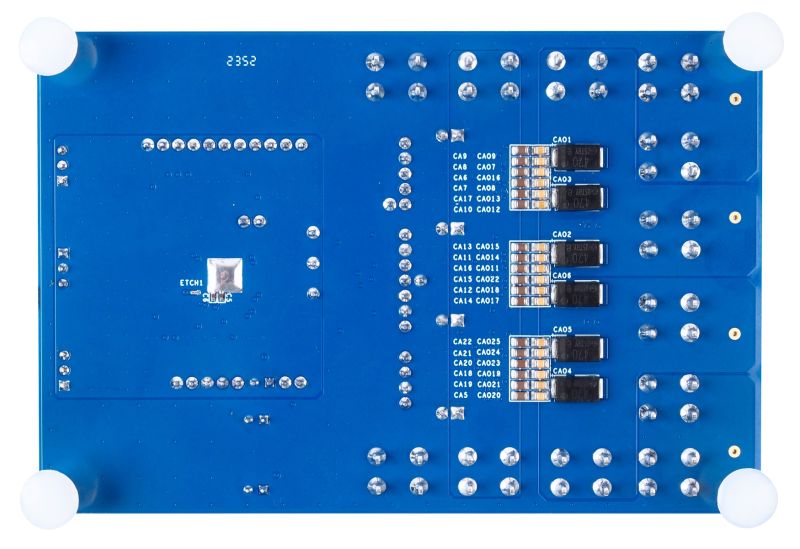

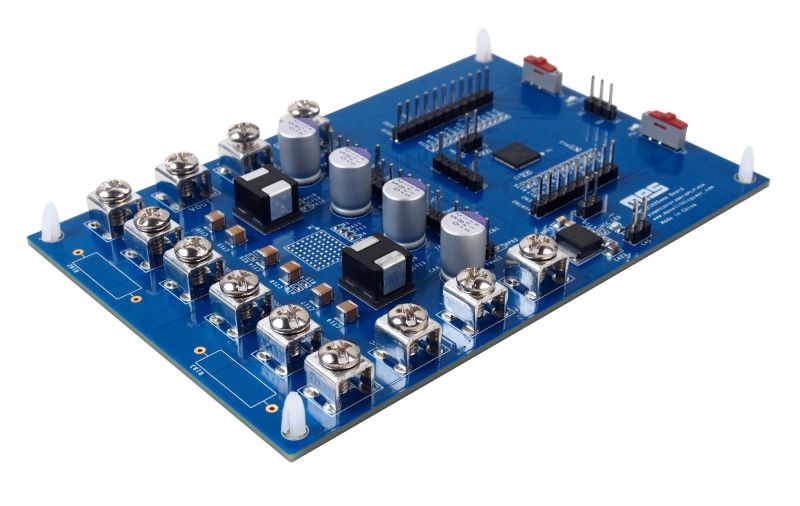

The EVMPC22157-2891-Split-02A is an evaluation board designed to demonstrate the capabilities of the MPC22157-130, a 130A, dual-phase Intelli-Module^TM with Quiet Switcher^TM technology (QST).

The EVMPC22157-2891-Split-02A can deliver up to 130A of load current across a wide operating input voltage (V_IN) range. High efficiency can be achieved across a wide output current (I_OUT) load range.

The EVMPC22157-2891-Split-02A employs one MP2891 device and two MPC22157-130 devices, which form two power supply rails that can be run independently.

The EVMPC22157-2891-Split-02A can monitor the MPC22157-130’s V_IN, output voltage (V_OUT), I_OUT, and temperature. Full protection features include integrated, configurable V_IN under-voltage lockout (UVLO) protection, as well as V_OUT over-voltage protection (OVP), under-voltage protection (UVP), over-current limit (OCL), and over-current protection (OCP).

Product Evaluated

130A, 8mm, Dual-Phase Intelli-Module^TM with Double-Side Cooling Capability

Features & Benefits

10V to 16V Input Voltage (V_IN) Range
Configurable 0.4V to 2V Output Voltage (V_OUT) Range
Supports Up to 130A of Continuous Output Current (I_OUT) per Module
PMBus/I²C Compliant
V_IN, V_OUT, Temperature, Total I_OUT, and Current Monitoring for Each Phase
V_IN Under-Voltage Lockout (UVLO) and Over-Voltage Protection (OVP)
Output OVP and Under-Voltage Protection (UVP)
Output Over-Current Protection (OCP)
Over-Temperature Protection (OTP)
Total Current and Per-Phase Current Limit
Fault Reporting
Configurable 1-Rail or 2-Rail Operation
Supports Up to 1-Rail, 4-Phase Operation after Connecting the Outputs Together
Available in a 122mmx80mm Demo Board Size

Active Part Numbers:

EVMPC22157-2891-Split-02A
