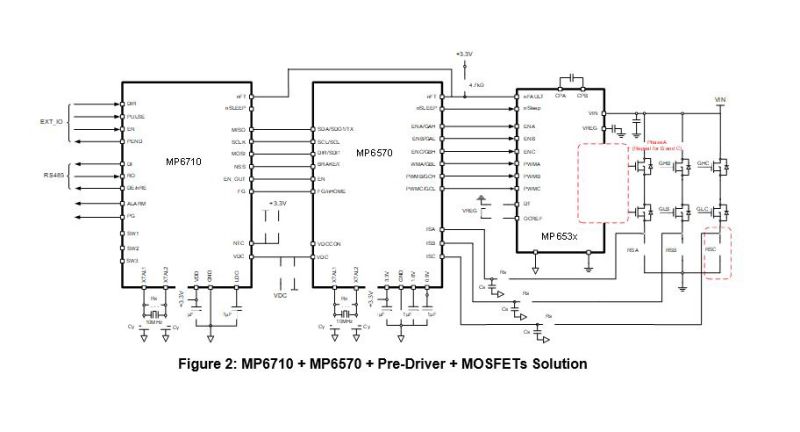

The MP6710 is a high-performance motion controller incorporating proportion-integral-differential (PID) algorithms, a curve-planning algorithm, and rich protection functions. It is used for applications with three-phase PMSM and BLDC motors together with the MP6570 to achieve better dynamic response.
The operation of the MP6710 supports three modes: speed mode, position mode, and torque mode. The reference command comes from either the digital interface or the PULSE/DIR input pin. A 12-bit ADC is employed for accurate sampling of the DC voltage and temperature.
Non-volatile memory is employed in the MP6710 to store parameters programmed through the selectable RS485 digital interface.
Application design is aided by MPS’s eMotion SystemTM Virtual Bench online developer tool.
Robust failure protection modes include over-current protection, long-time overload protection, rotor-lock protection, and input bus over-voltage and over-current protection.
The MP6710 is available in a TQFN-32 (4mmx4mm) package.
