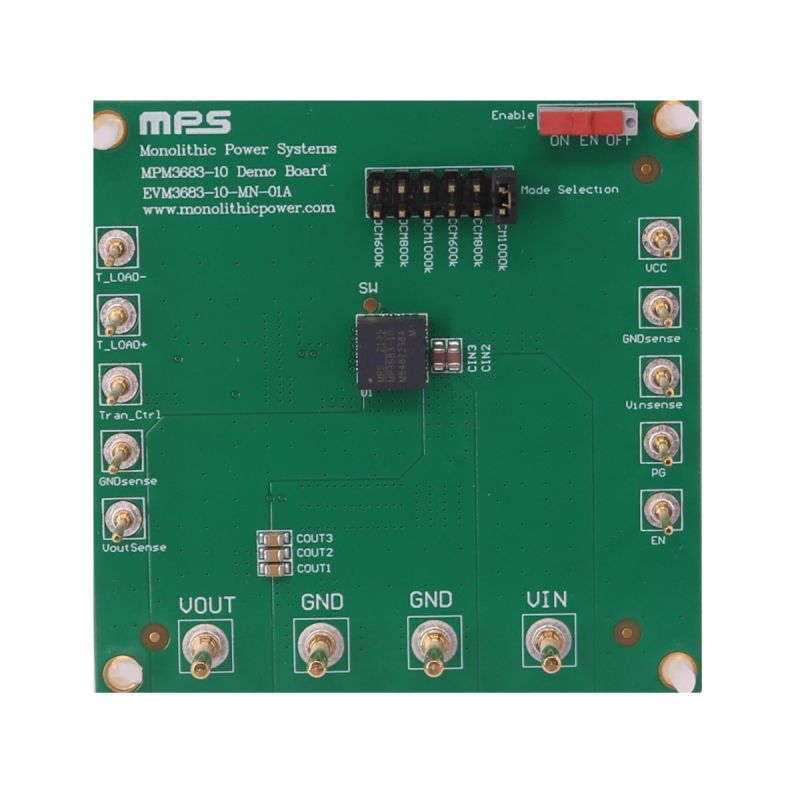

MPM3683-10

MPM3683-10

2.7V to 16V, 10A, Step-Down Power Module

概要

The MPM3683-10 is an easy-to-use, fully integrated step-down DC/DC power module that integrates a DC/DC converter, power inductor, and passive components. It can achieve up to 10A of continuous output current (I_OUT) across a wide input voltage (V_IN) range, with excellent load and line regulation.

Constant-on-time (COT) control provides fast transient response and eases loop stabilization. The selectable switching frequency (f_SW) can be set to 600kHz, 800kHz, or 1000kHz via the MODE pin. This allows the MPM3683-10 to maintain a constant f_SW, regardless of V_IN and the output voltage (V_OUT).

The MPM3683-10 features a configurable soft-start time (t_SS) and a power good (PG) signal that indicates whether V_OUT is within the nominal voltage range. Fully integrated, non-latch protection features include over-current protection (OCP), over-voltage protection (OVP), and thermal shutdown.

The MPM3683-10 is available in a compact LGA-29 (7mmx7mmx4.4mm) package.

機能と利点

Wide Input Voltage (V_IN) Range:
- 2.7V to 16V with External 3.3V Bias
- 4V to 16V with Internal Bias or External 3.3V Bias
0.6V to 5.5V Output Voltage (V_OUT) Range
Differential V_OUT Remote Sense
Adaptive Constant-on-Time (COT) Control for Fast Transient Response
Stable with Zero-ESR Output Capacitor
Selectable Pulse-Skip Mode (PSM) or Forced Continuous Conduction Mode (FCCM)
V_OUT Tracking
V_OUT Discharge
PG Active-Clamped Low during Power Failure
Configurable Soft-Start Time (t_SS)
Pre-Biased Start-Up
600kHz, 800kHz, and 1000kHz Selectable Switching Frequency (f_SW)
Non-Latch Protections:
- Over-Current Protection (OCP)
- Over-Voltage Protection (OVP)
- Under-Voltage Lockout (UVLO) Protection
- Thermal Shutdown
Available in an LGA-29 (7mmx7mmx4.4mm) Package
