mEZDPD1620AS

変更可能
新商品
mEZDPD1620AS

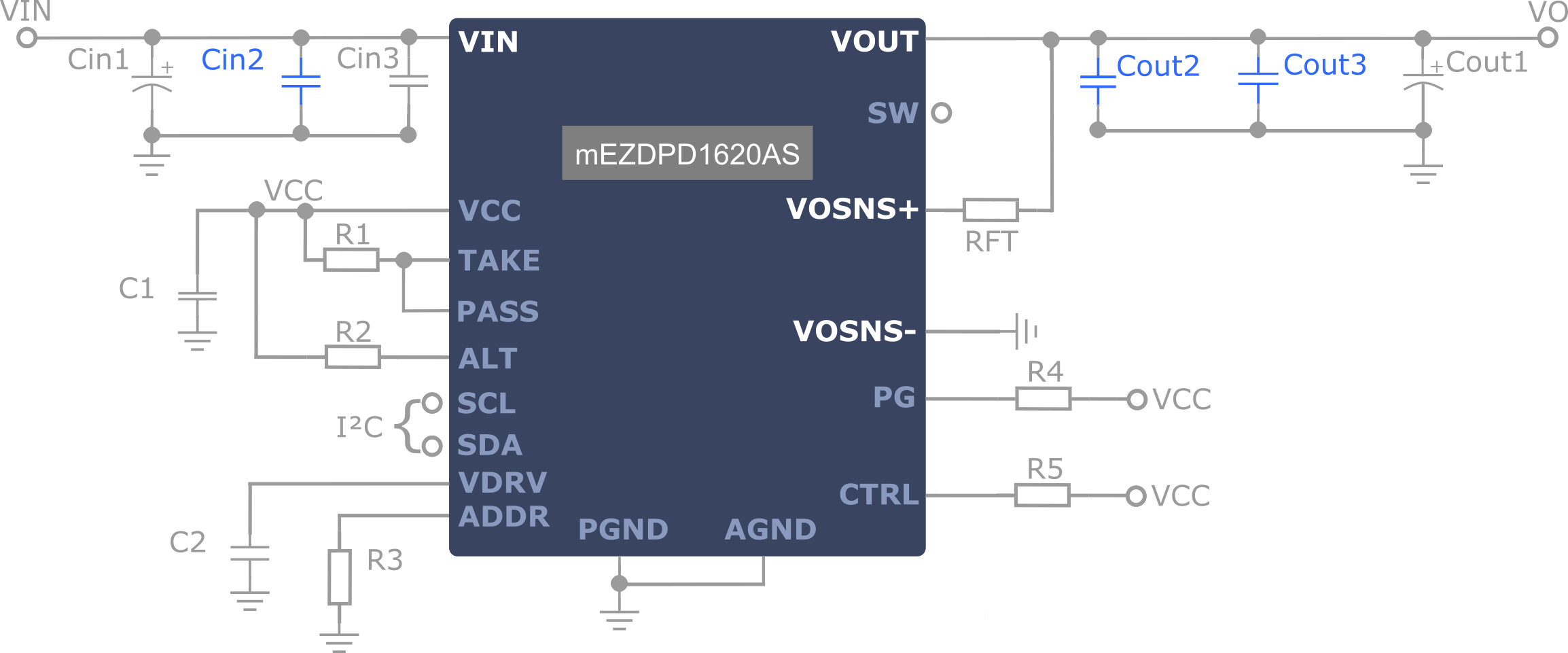

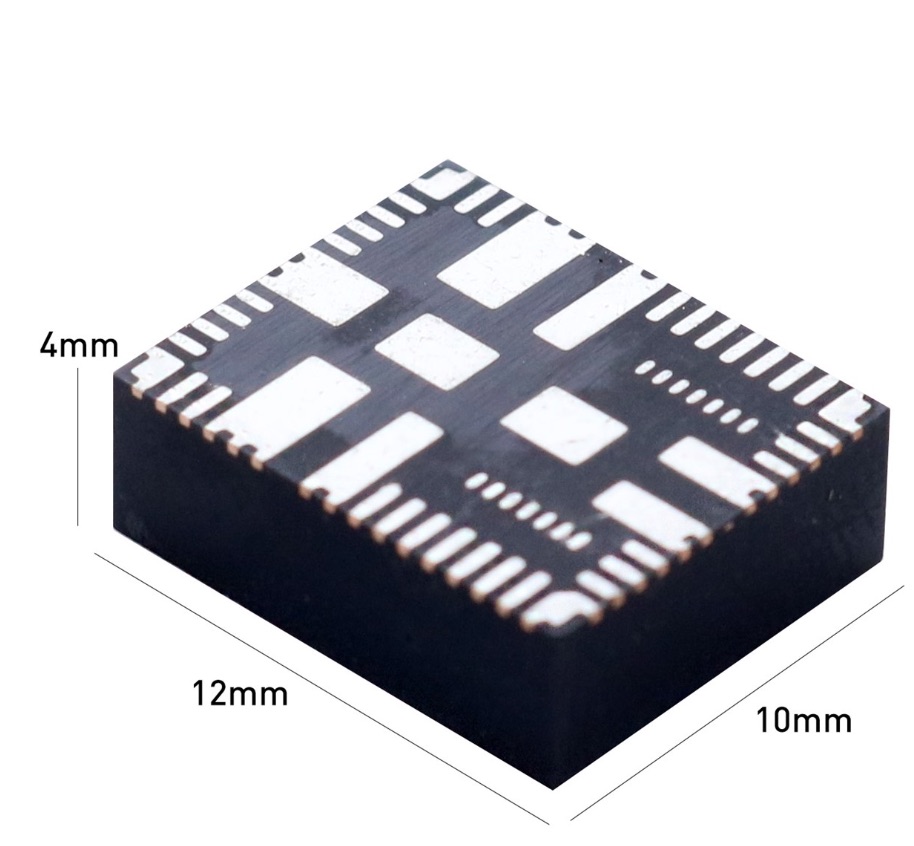

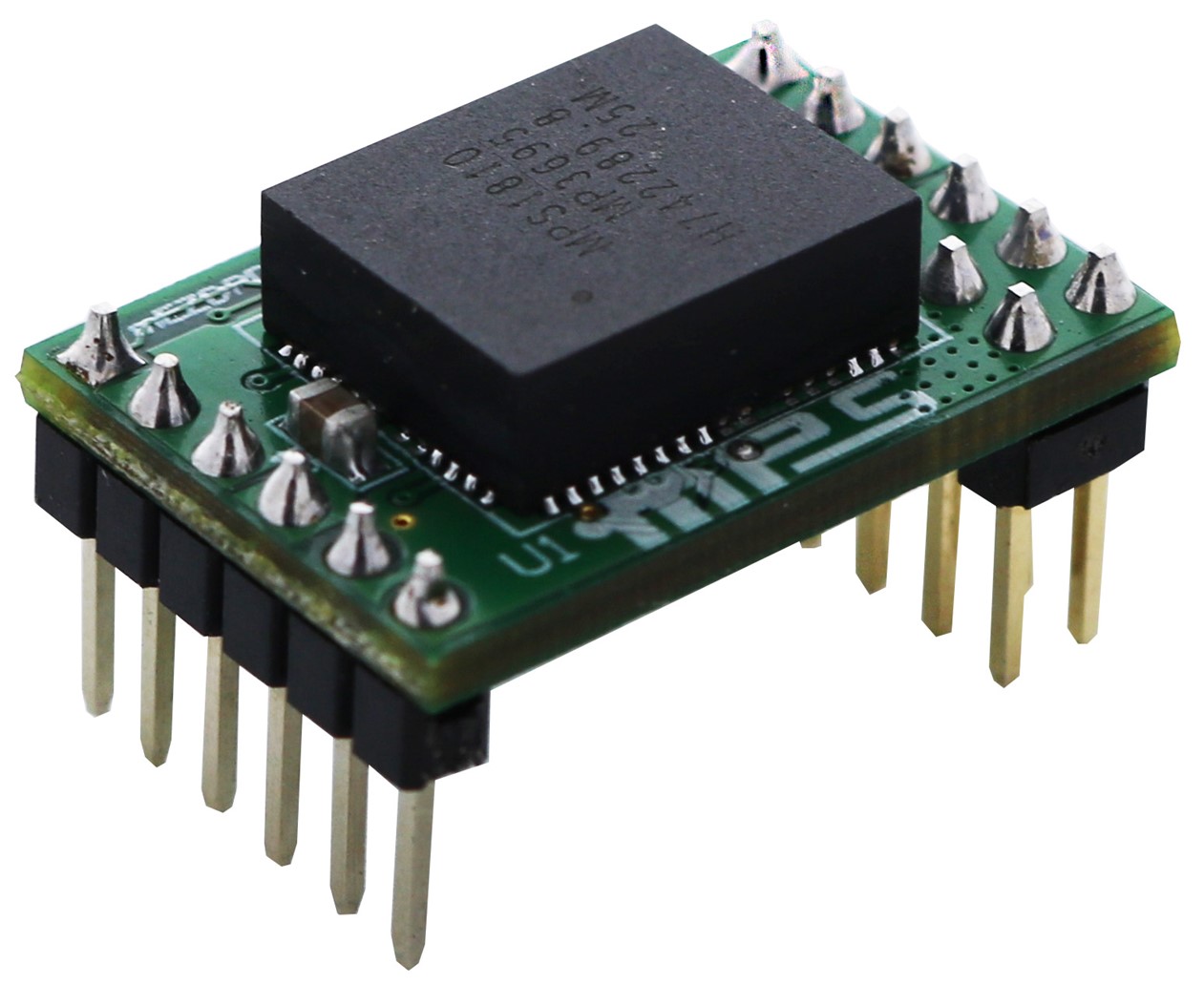

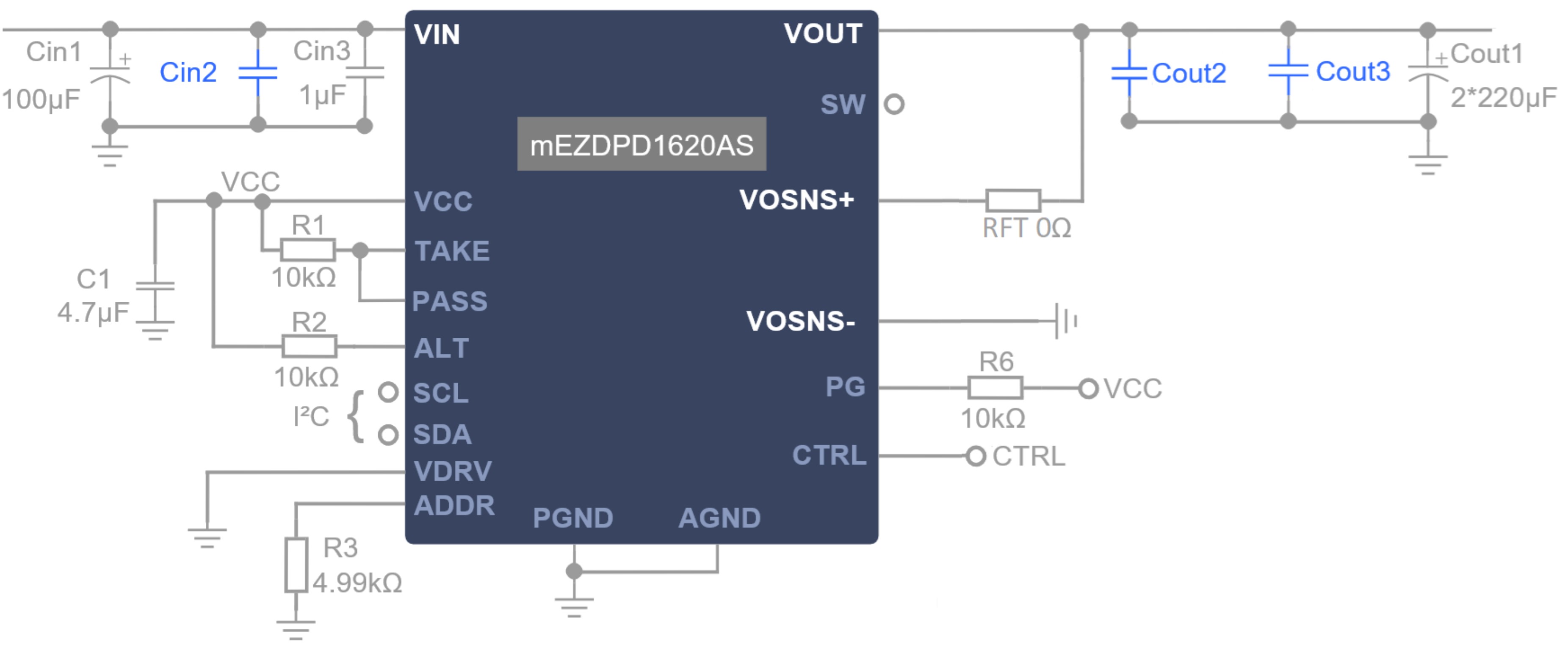

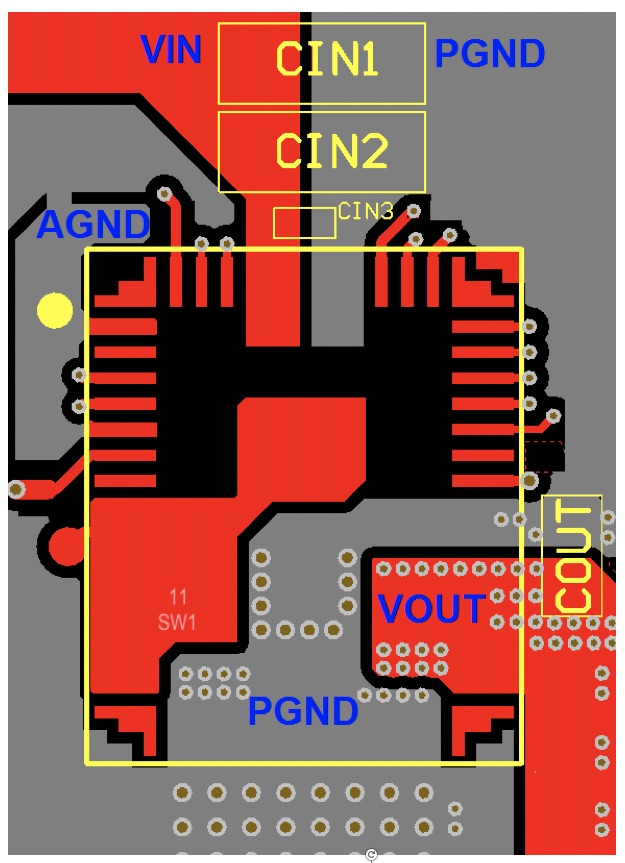

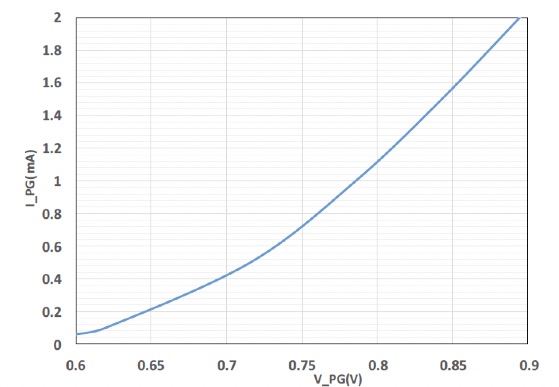

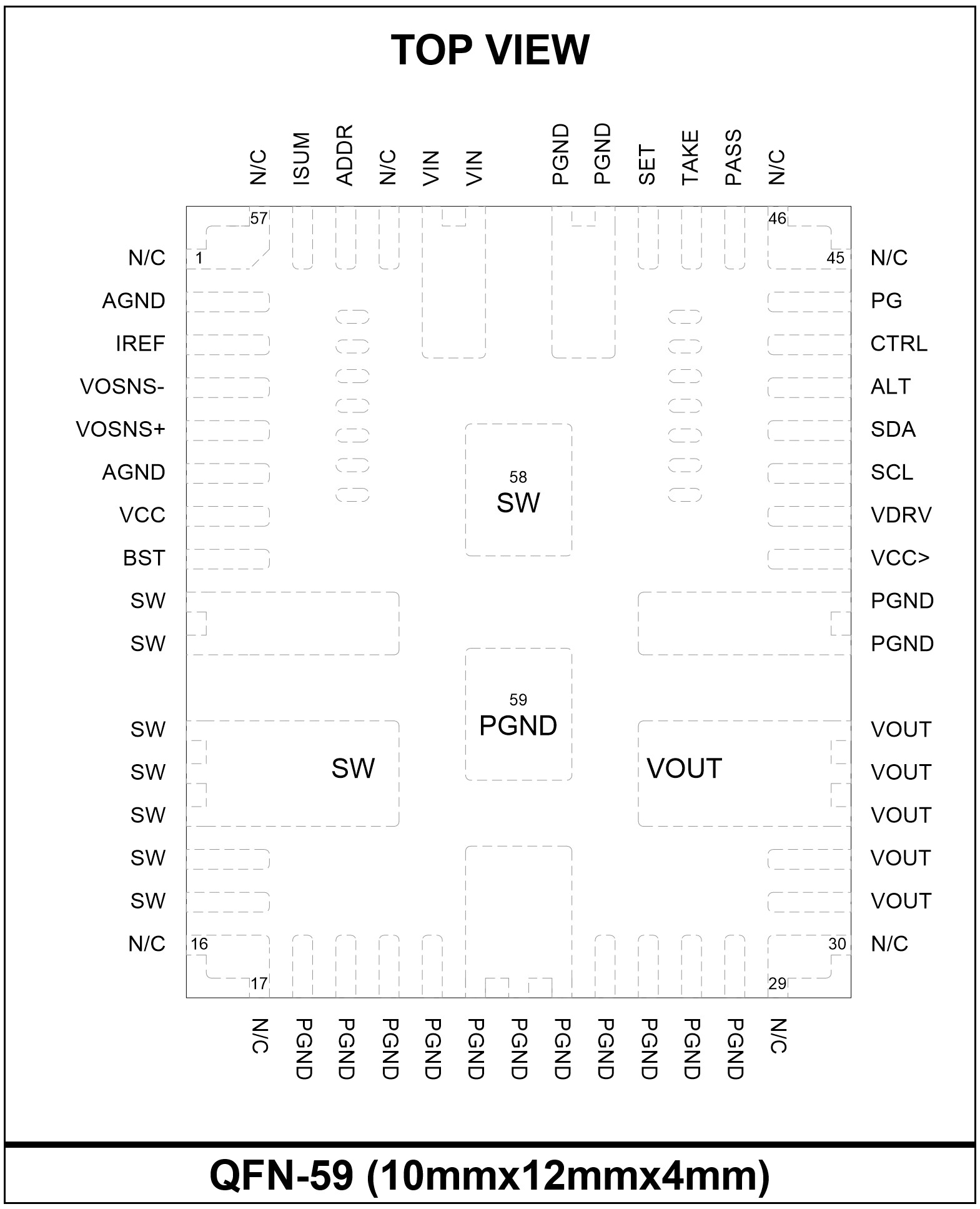

The mEZDPD1620AS is a configurable DC/DC step-down power module up to 25A peak and 16V input voltage. This part has a multiple time programmable memory and a simple GUI to program. Comes in a convenient QFN Package (10mmx12mmx4mm).

Need to configure a different VIN, IOUT?

Up to 3A
Up to 6A

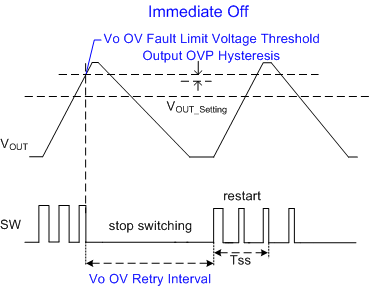

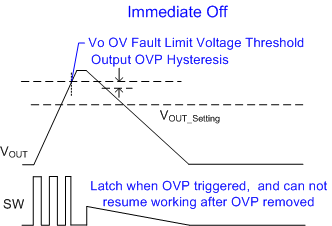

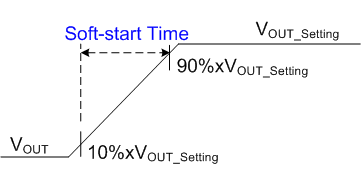

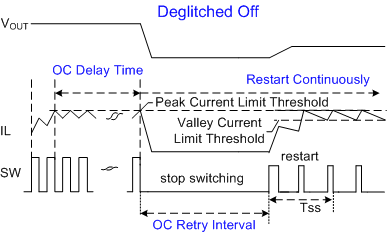

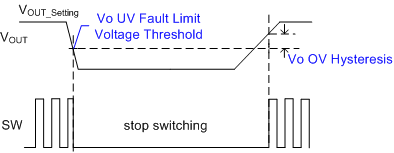

Choose Your Output Voltage, Your Module Delivered in 7 days Feeling lucky? Simulate waveforms by viewing datasheet Show me how
Step 1: Input your custom specs & View Custom Datasheet




Enter Specs

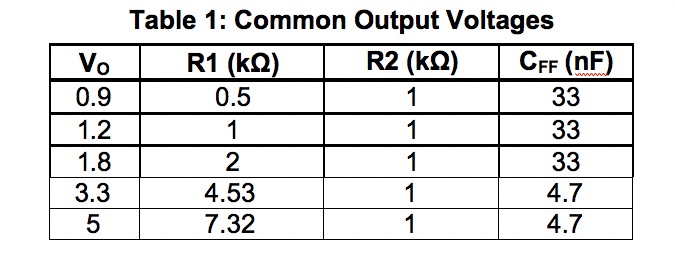

VOUT 0.5V-5V
Optional
(only needed for simulation)

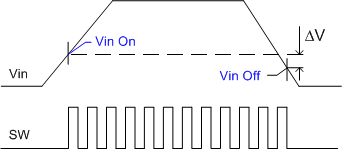

VIN Typ. 4V-16V
VIN Min 4V-16V
VIN Max 4V-16V

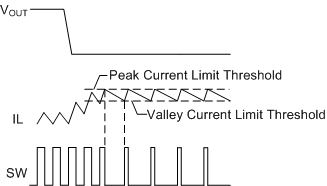

IOUT Up to 20A
Step 2: Save Design to Your Account
Step 3: Order your custom evaluation board or module. 7 Day Delivery

Sale Price

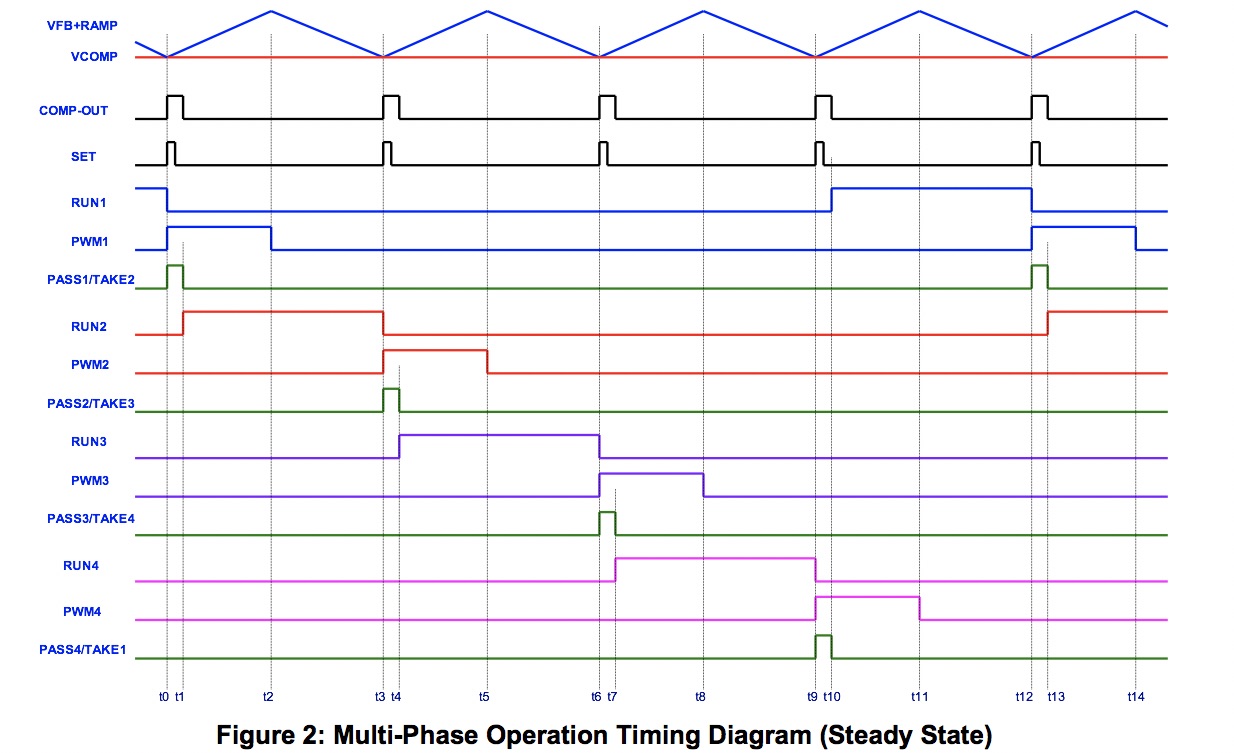

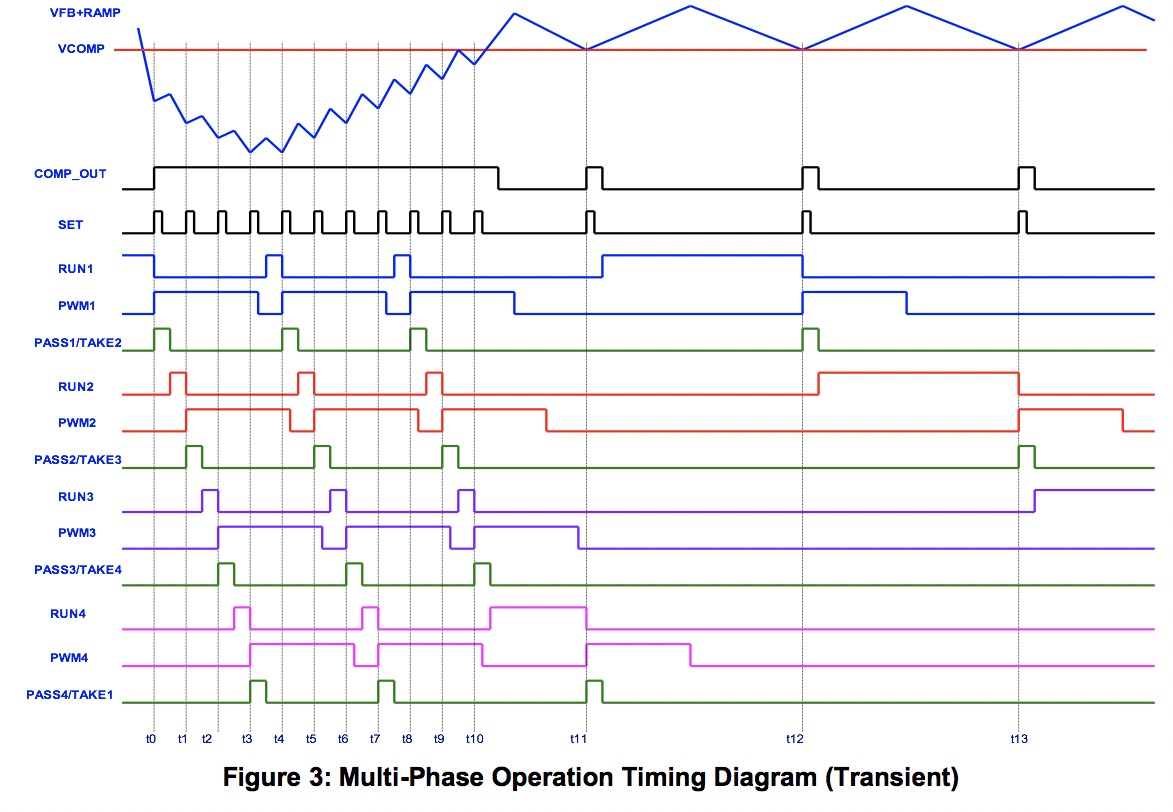

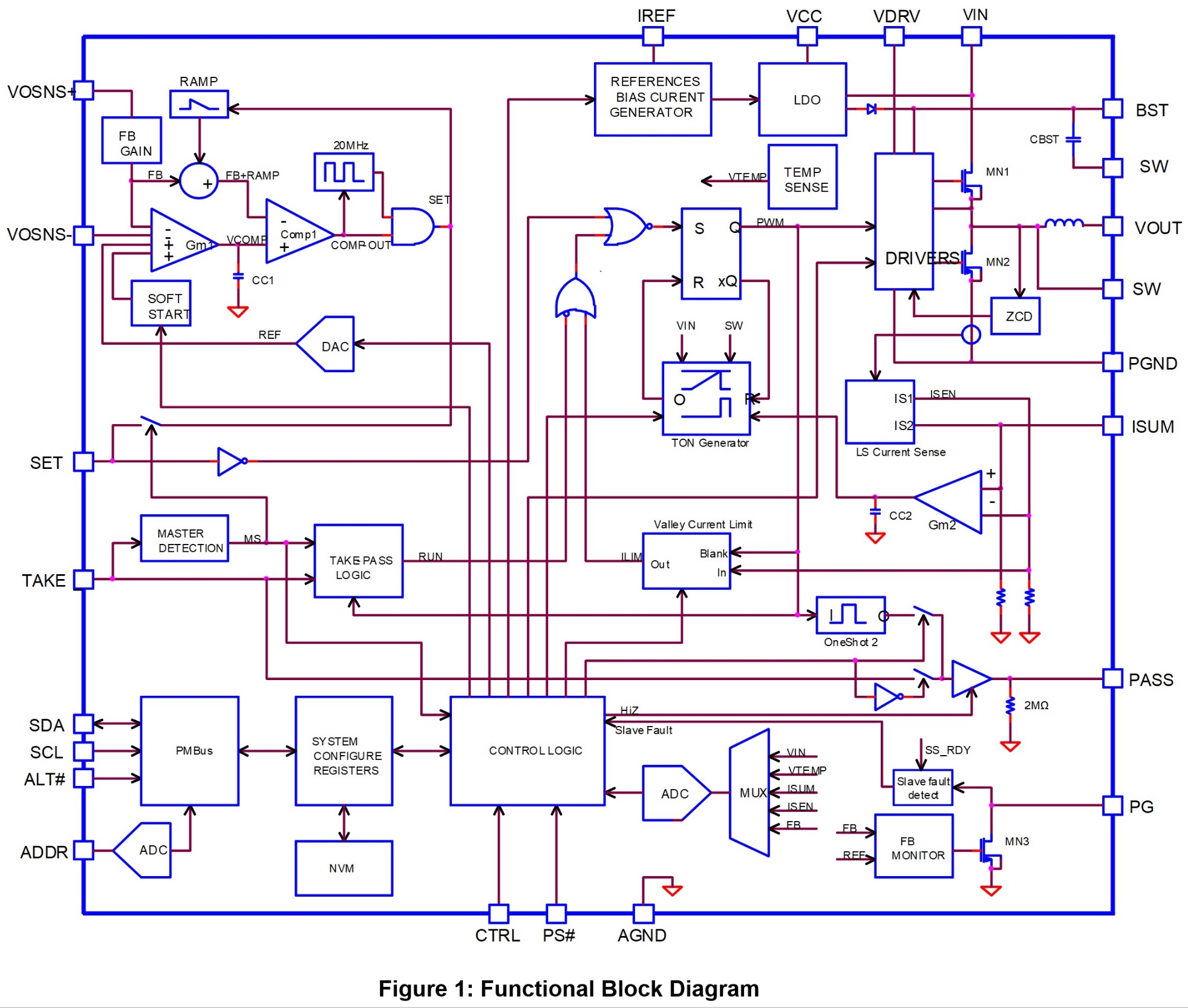

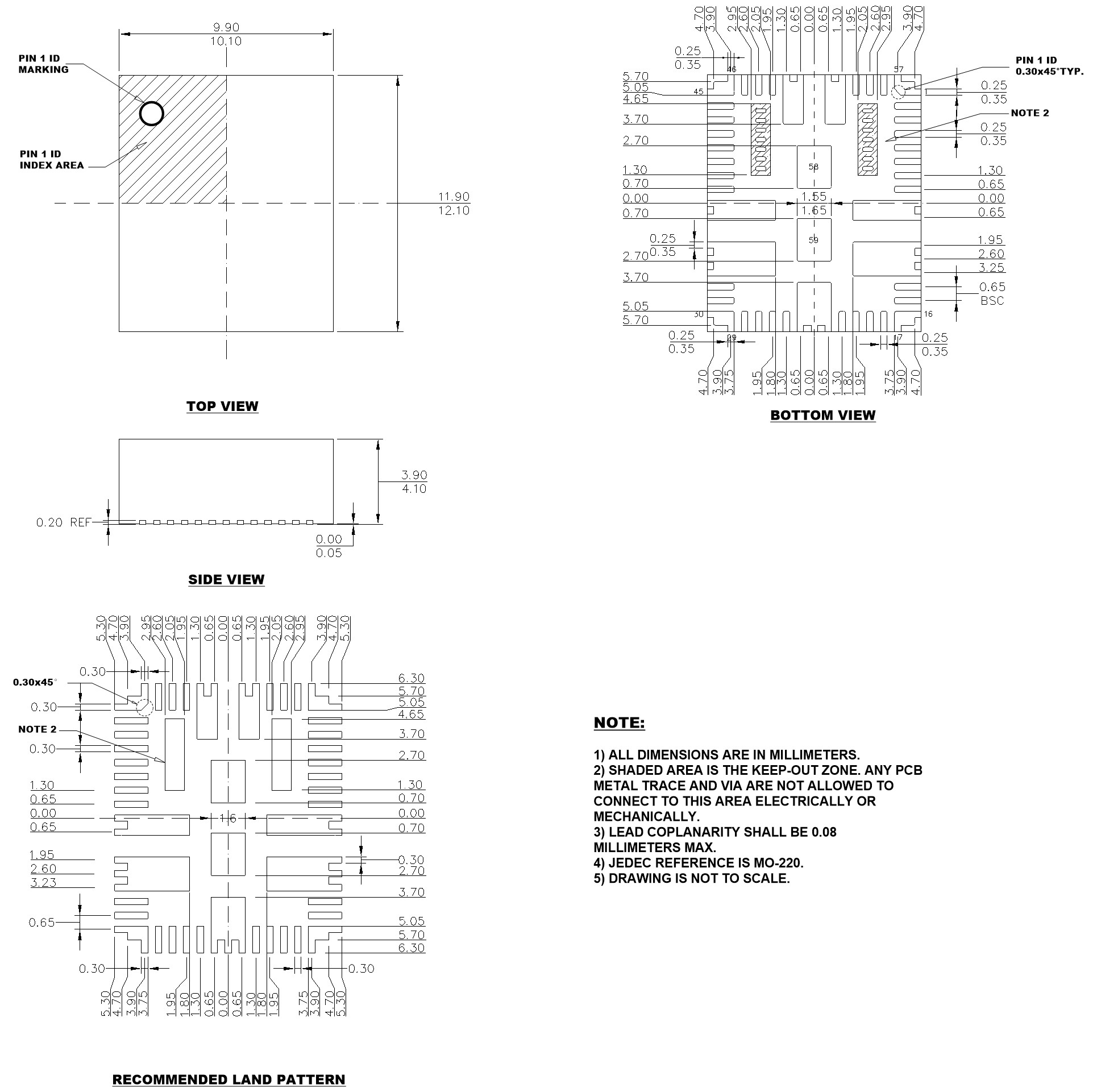

The mEZDPD1620 series are scalable, programmable DC/DC power supplies with up to 25A peak output current. There are two packages available: the mEZDPD1620AS is a surface mount (QFN package), and the mEZDPD1620A is in the DIP (Dual Inline Package).

20A

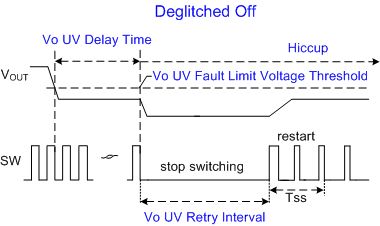

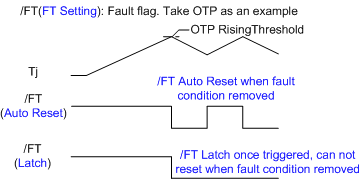

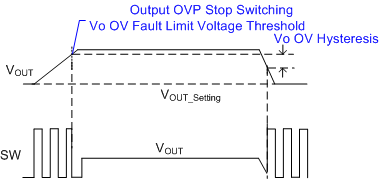

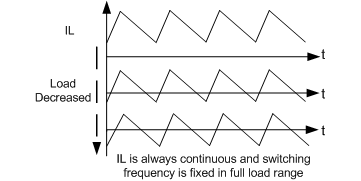

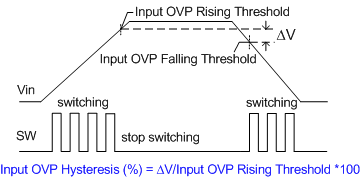

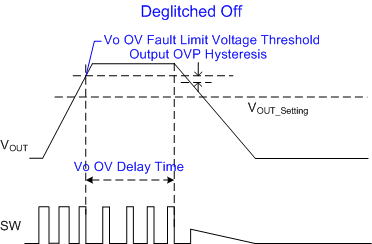

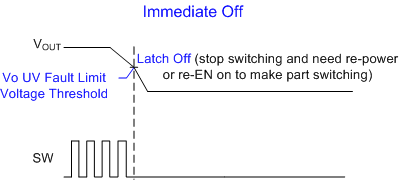

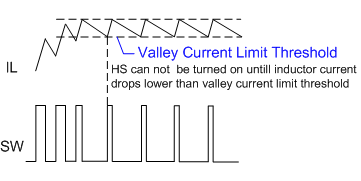

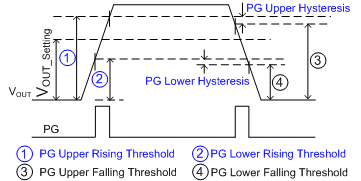

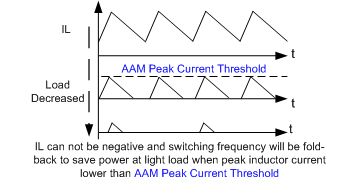

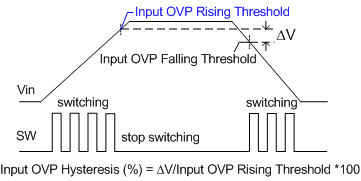

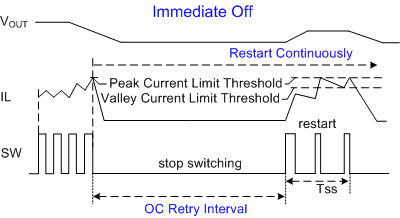

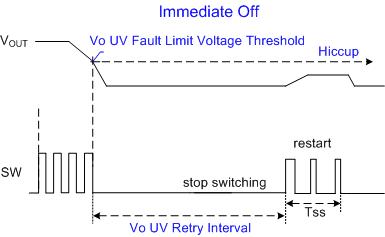

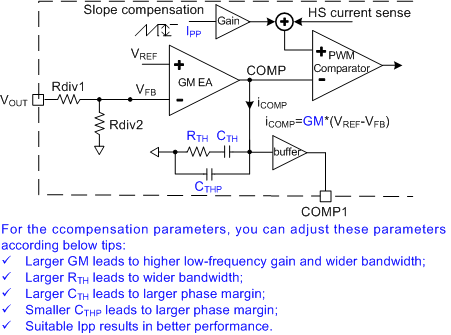

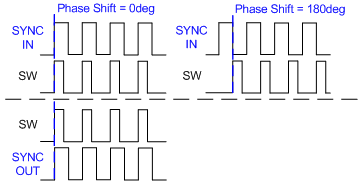

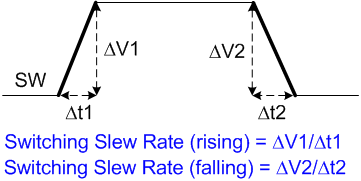

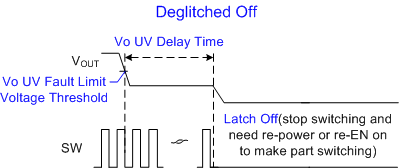

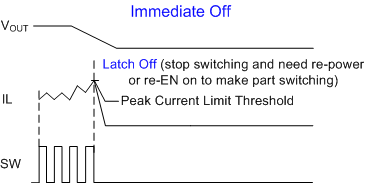

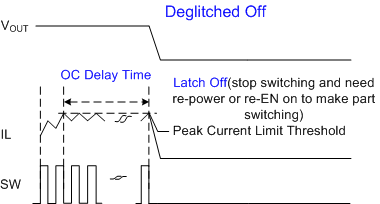

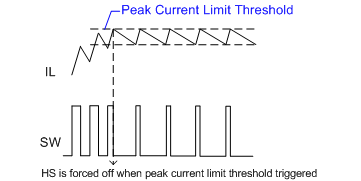

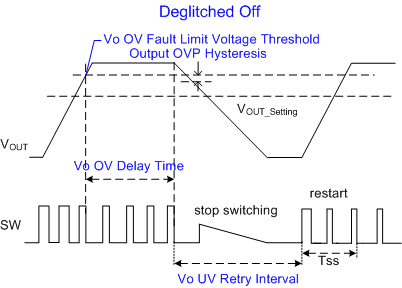

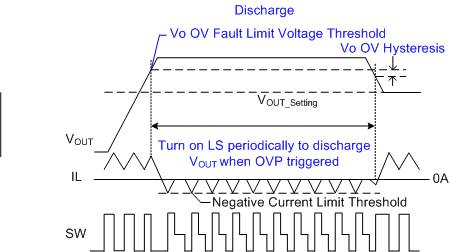

Digital programmable features enable the mEZDPD1620AS to be controlled and programmed via an I2C PMBus. Operation parameters can be programmed, including compensation, the output voltage transition slew rate, the switching frequency, and power save mode. Pre-configured DIP package modules are available to provide quick evaluation.

Want your custom configuration pre-loaded to the evaluation board module? Create and save a module configuration and order evaluation board here

  • 個数 価格
  • 1
    ¥1,325.53 /単位


評価ボード詳細をご覧ください。
エンジニアにコンタクト、もしくは見積もり入手

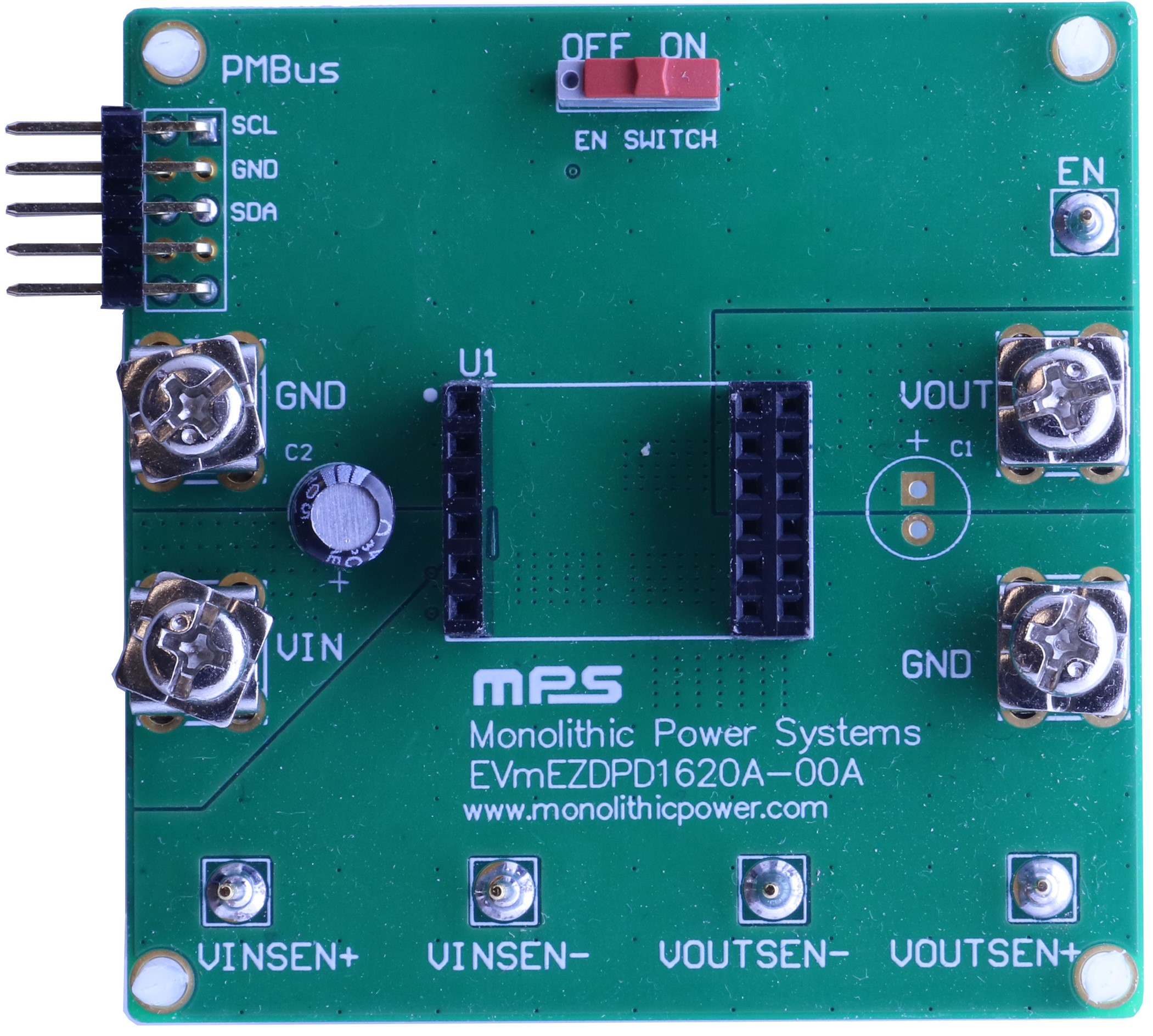

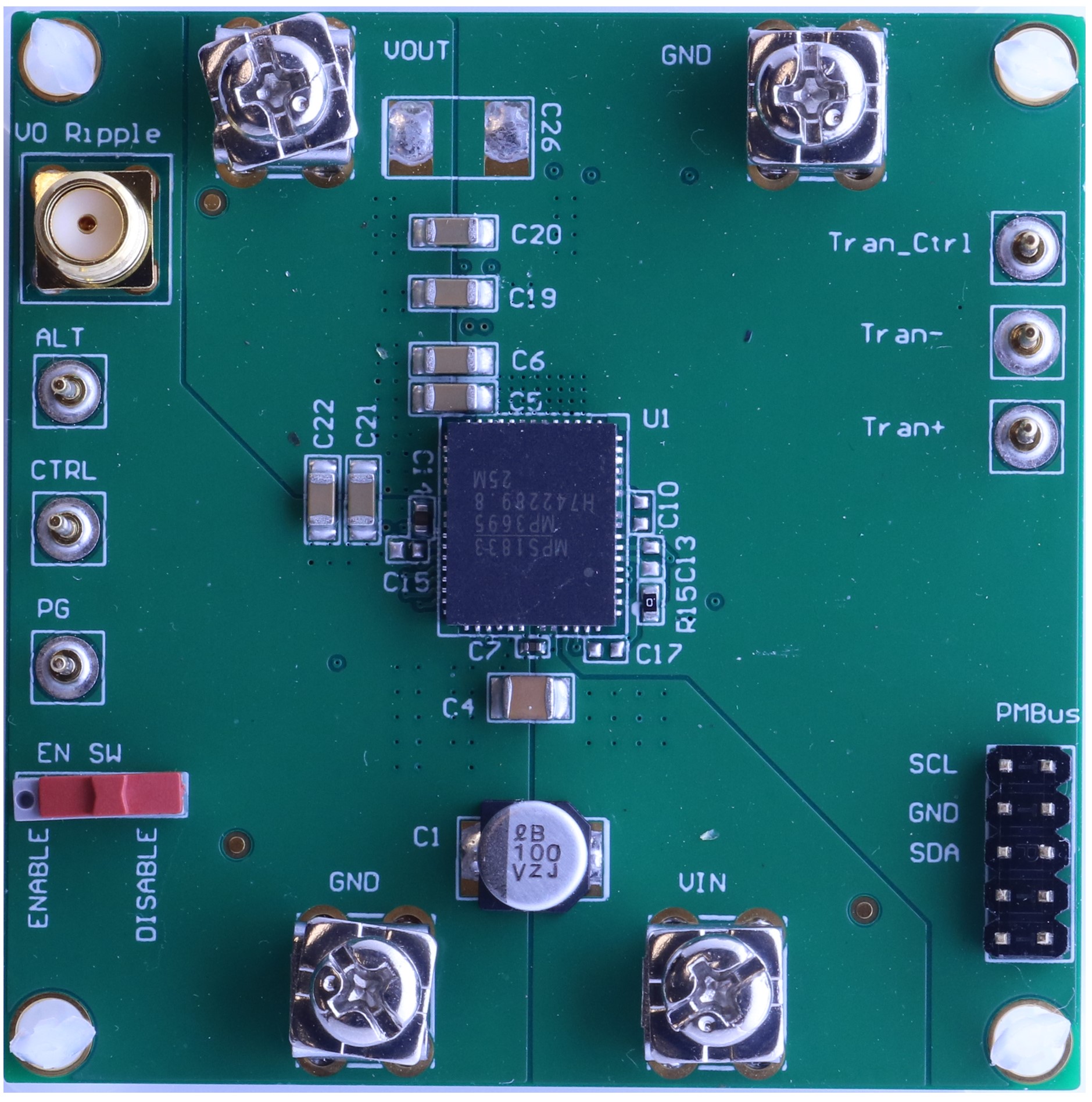

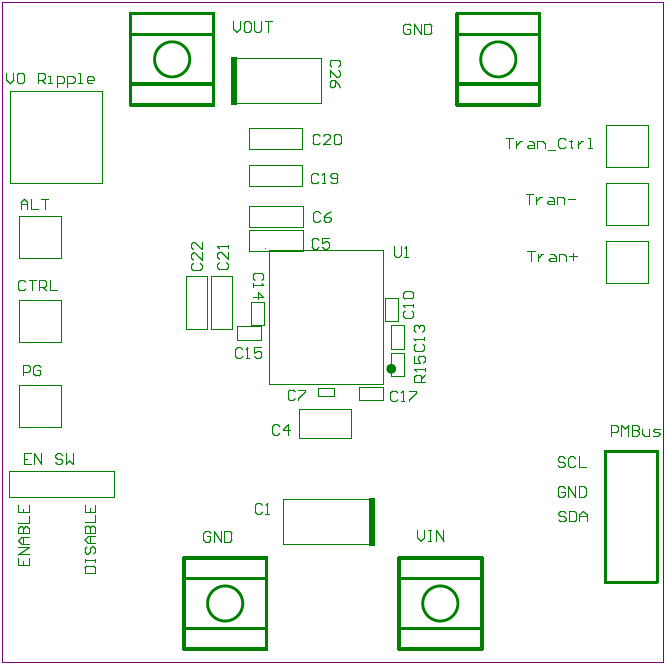

Evaluation board for the mEZDPD1620A configurable power module.

The EVmEZDPD1620A is the evaluation board for the mEZDPD1620A configurable DC/DC power module with up to 20A and 0.6-5.5V output voltage. This part has a multiple time programmable memory and can be programmed with the Virtual Bench Pro GUI software available below.

Use the GUI to configure and monitor part performance such as Vin, Vout, Iout & Temperature. Current and output voltage values are all that is needed to start evaluation. Additional parameters have default settings and can be re-configured as needed.

Want your custom configuration pre-loaded to the eval module? Create and save a module configuration here

¥543.25 + tax



Evaluation kit for the mEZDPD1620A configurable power module.

The PKT-mEZDPD1620A is the evaluation kit for the mEZDPD1620A configurable DC/DC power module with up to 20A and 0.6-5.5V output voltage. This part has a multiple time programmable memory and can be programmed with the Virtual Bench Pro GUI software available below.

Use the GUI to configure and monitor part performance such as Vin, Vout, Iout & Temperature. Current and output voltage values are all that is needed to start evaluation. Additional parameters have default settings and can be re-configured as needed.

Want your custom configuration pre-loaded to the eval module? Create and save a module configuration here

¥8,148.75 + tax



Graphical User Interface (GUI) supported by MPS used to configure and monitor multiple MPS digital power solutions with an I2C Interface

The Virtual Bench Pro 4.0  is a Graphical User Interface (GUI) supported by MPS used to configure and monitor multiple MPS digital power solutions with an I2C Interface. This GUI is an intuitive tool that can be used with MPS evaluation kits  and helps assist in the evaluation and in the testing phases of your design.

Hardware & Software Requirements:

  • USB to I2C Communication Device EVKT-USBI2C-02
  • PC running Window 7 or later
  • .Net Framework 4.0 or later

Features:

  • Support PMBus open standard protocol. Common commands such as setting the output, switching frequency, etc
  • Provide tips for the parameter configuration of the digital power solution
  • Monitor real-time data and displayed values by the GUI such as:
    • Input voltage
    • Output voltage
    • Output current
    • Temperature
    • Warnings and fault
  • Waveforms of the main signals
  • Automatically detected MPS digital power solutions
  • Evaluate MPS devices in an offline mode (with no hardware present)
  • Allow you to see the most recent programmed parameters through the Log Panel
  • Access to MPS Now platform to contact our product experts



通信インターフェースデバイスUSB to I2C / PMBusは、製品評価キットに含まれていますが、個別に購入することもできます

The EVKT-USBI2C-02は製品評価キットに含まれていますが、別途購入することもできます。 EVKT-USBI2C-02は、USBからI2CまたはUSBからPMBusの通信インターフェースを提供します。 MPS I2CおよびPMBus製品、Virtual Bench Pro、およびI2C GUIツールで動作するように設計されています。 USBドライバーは自動的にインストールされるか、直接ダウンロードされます
