Role of Power Conversion in Renewable Energy Systems

To efficiently and reliably transfer energy produced from renewable sources into a form that can be consumed by consumers directly or incorporated into the electrical grid, power conversion is essential to renewable energy systems. Renewable energy sources like solar and wind power are intermittent and variable, so advanced power conversion systems are necessary to make sure the energy is captured efficiently, converted with minimal loss, and delivered with the quality and reliability that modern power systems require.

Conversion from DC to AC Power

One of the primary functions of power conversion in renewable energy systems is to convert direct current (DC) power generated by photovoltaic (PV) solar panels and certain types of wind turbines into alternating current (AC) power, which is the standard form used by most electrical grids as well as household and industrial appliances. Inverters, which are power electrical devices that rapidly switch the DC input on and off, often perform this conversion process, resulting in a pulsating DC waveform that can be filtered into a smooth AC waveform.

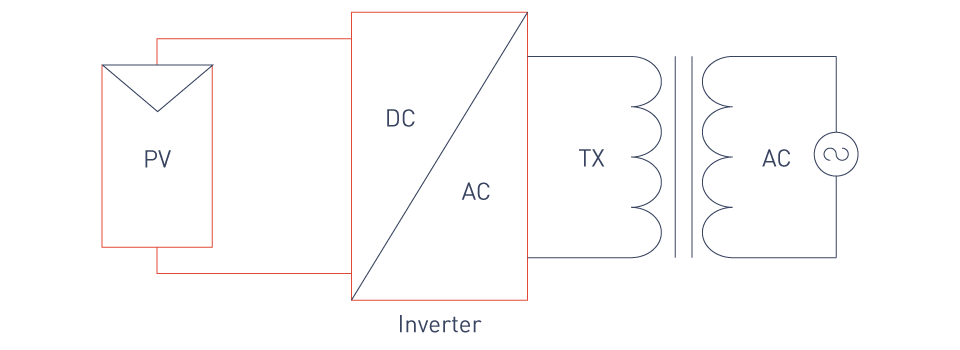

Figure 19: DC to AC conversion

For example, the DC output from solar panels in solar power systems fluctuates depending on the conditions of sunlight. As a result, the inverter must not only convert the power but also regulate it to maintain a constant output voltage and frequency that matches grid standards. To maximize the energy supply from solar panels and guarantee a smooth integration with the grid, this conversion must be carried out properly and efficiently.

Voltage Regulation and Control

Power converters are responsible for controlling the voltage levels of the electricity produced from renewable sources in addition to converting DC to AC. This is especially crucial since different climatic factors, such wind speed and solar irradiance, can induce fluctuations in the output voltage of renewable energy generators, including solar panels and wind turbines.

Power converters modify the voltage to a desirable level using a variety of control strategies, making it appropriate for either direct use or grid transmission. For instance, in wind energy systems, the power converter modulates the power electronics in the case of a doubly-fed induction generator (DFIG) or modifies the excitation current in the case of a synchronous generator to regulate the generator's output voltage. Maintaining grid stability and avoiding damage to grid-connected equipment rely on proper voltage management.

Power Quality Management

Another crucial function of power conversion in renewable energy systems is maintaining power quality. Renewable energy generators' non-linear characteristics and power output variability can lead to power quality issues like flicker, swells, sags, and harmonic distortion. By removing harmonics, regulating the flow of reactive power, and stabilizing the voltage, power converters are designed to help with these issues.

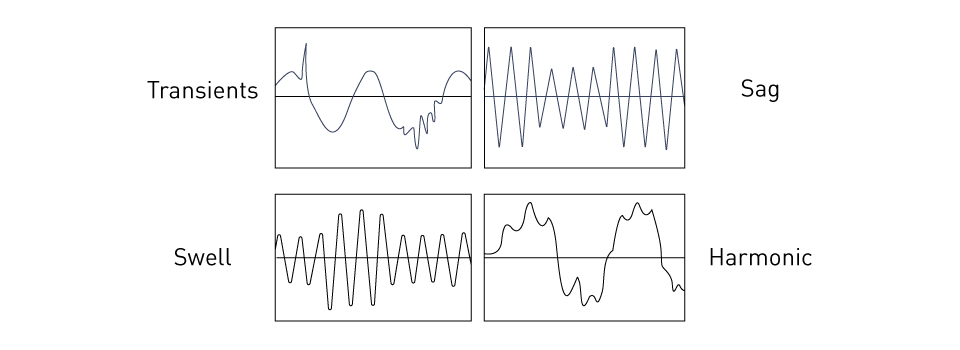

Figure 20: Types of power quality problems

For example, advanced control algorithms that actively monitor and address power quality issues are frequently used in PV system inverters. In order to maintain grid voltage stability, especially in weak grids or during disruptions, these inverters can inject or absorb reactive power as needed. Similar to this, power converters in wind energy systems aid in reducing flicker and other issues with power quality by smoothing out the power output and damping power oscillations.

Maximum Power Point Tracking (MPPT)

In renewable energy systems, especially solar and wind energy, power converters play a crucial role in Maximum Power Point Tracking (MPPT). Power converters use MPPT algorithms to continuously modify the renewable energy source's operating point in order to extract the most power feasible at any given time.

For example, in a solar PV system, the power converter dynamically modifies the solar panels' operating voltage to determine the maximum power point, which fluctuates in response to temperature and sunlight intensity variation. MPPT increases the system's overall efficiency and energy production by optimizing the operating point, which guarantees that the solar panels produce the most electricity feasible under the given conditions.

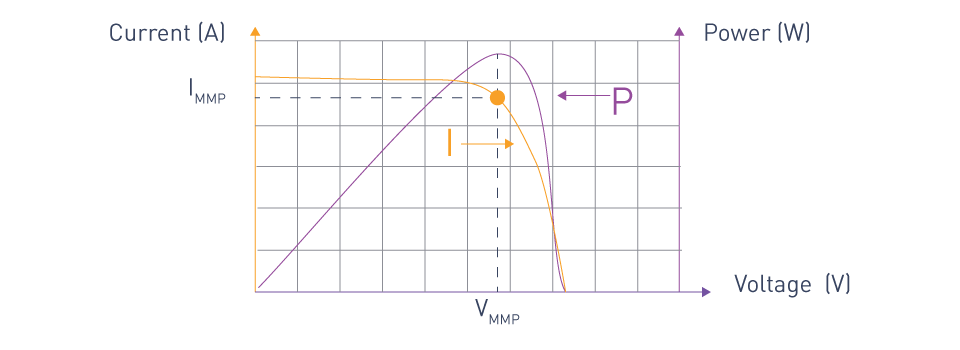

Figure 21: Solar Module I-V and Power Curves

In wind energy systems, MPPT techniques are utilized to maximize the extraction of kinetic energy from the wind by adjusting the wind turbine's rotor speed to operate at the ideal tip-speed ratio. This is especially crucial when there is fluctuating wind, as the wind speed can fluctuate quickly and unpredictably.

Integration with Energy Storage Systems

When combining renewable energy sources with energy storage devices like batteries or supercapacitors, power conversion is also essential. Because renewable energy generation is frequently sporadic, wind power relies on wind conditions, and solar power is only available during the day, energy storage systems are used to store extra energy when demand for it exceeds supply and to provide energy when generation is insufficient.

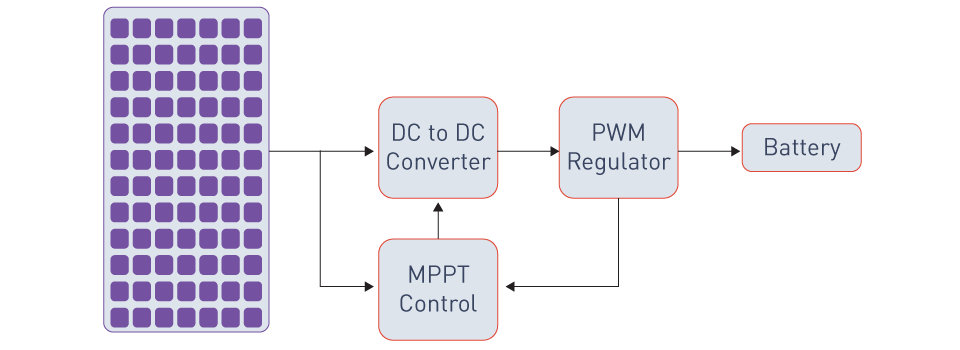

Figure 22: MPPT Charge Controller

Power converters enable the bidirectional flow of energy from the renewable energy source to the storage system and the grid. When energy is abundant, they make sure it is stored efficiently and retrieved when needed. In a solar-plus-storage system, for example, the power converter charges the battery during the day when solar generation is high and drains it at night or at instances when solar generation is low. This process must be controlled by the converter while preserving power quality and making sure the battery runs within its safe limits.

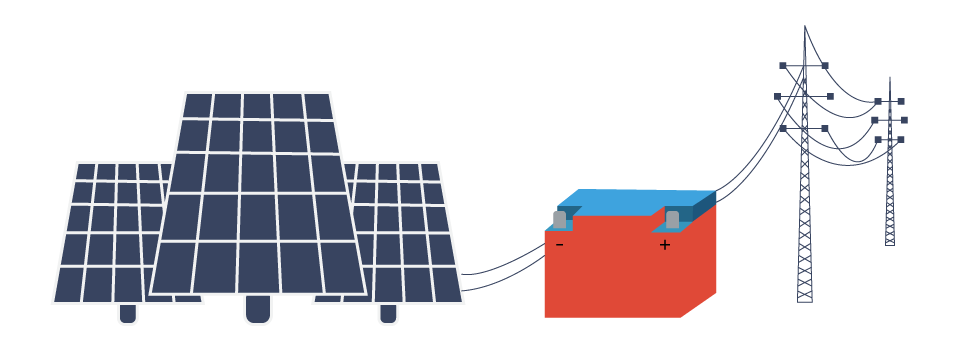

Figure 23: Solar-plus-storage system

Grid Synchronization and Integration

One of the primary functions of power converters in renewable energy systems is grid synchronization, which makes sure that before power from renewable sources is fed into the grid, it is in sync with the voltage and frequency of the grid. This is necessary to keep the electricity system stable and avoid disruptions.

Phase-locked loops (PLLs) and other synchronization methods are used by power converters to align the grid's voltage, frequency, and phase with the renewable energy output. In weak grids or microgrids, where grid conditions can vary significantly, this process is highly challenging. Power converters must be able to swiftly and precisely modify their output in these situations in order to stay in sync with the grid and facilitate the smooth integration of renewable energy into the power system.

Enhancing System Reliability and Flexibility

Lastly, power converters improve renewable energy systems' flexibility and reliability. They enable the efficient operation of renewable energy sources in a variety of conditions, such as during grid disruptions, voltage variations, and changes in load demand. To further improve the entire power system's reliability, advanced power converters can also offer the grid ancillary services including voltage support, frequency regulation, and black start capability.

Power converters are essential for controlling the interactions between various energy sources and maximizing system performance in hybrid renewable energy systems, which integrate several energy sources (such as solar, wind, and storage). In order to maximize efficiency and guarantee a steady supply of power, they allow the system to dynamically switch between energy sources or operate them simultaneously, based on availability and demand.

Control Challenges in Solar, Wind, and Hybrid Energy Systems

The intermittent and unpredictable nature of renewable energy sources such as wind and solar creates unique management issues when they are integrated into the power grid. Solar and wind energy are heavily dependent on environmental factors that are frequently unpredictable and outside of human control, in contrast to traditional power generation systems where power output can be controlled with reasonable predictability. In hybrid energy systems, which integrate several renewable sources to improve efficiency and reliability, these challenges become much more complicated. In order to manage these complexities and guarantee that renewable energy systems run effectively, consistently, and in harmony with the grid, effective control mechanisms are crucial.

Variability and Intermittency

Challenge: The inherent unpredictable and intermittent nature of the energy supply poses the biggest challenge to both solar and wind energy systems. The time of day, the weather, and seasonal variations all have an impact on solar power generation, which causes power output to fluctuate. In the same way, wind power generation is dependent upon wind direction and speed, both of which can fluctuate significantly over short periods of time. These fluctuations make it difficult to maintain consistent power output and grid stability.

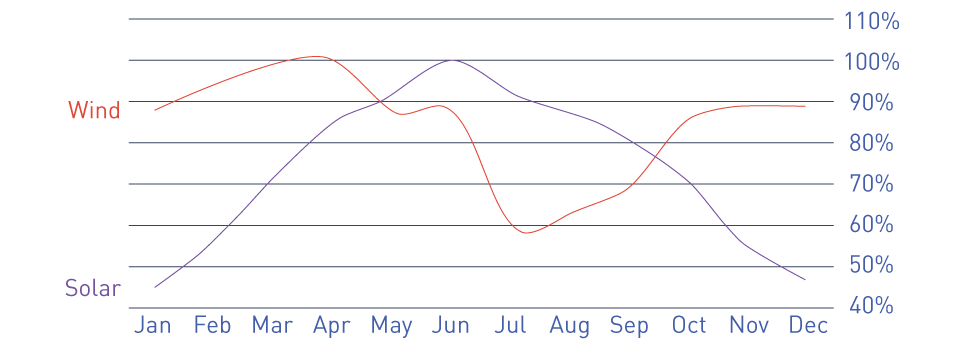

Figure 24: Representative power output compared to maximum monthly capacity

Solution: To handle the unpredictability and intermittent nature of renewable energy sources, advanced control systems are necessary. For instance, solar and wind energy systems use Maximum Power Point Tracking (MPPT) algorithms to continuously modify the system's operating conditions in order to maximize power output under a variety of environmental conditions. Furthermore, by storing excess energy during high generation periods and releasing it during low generation periods, energy storage systems, such as batteries, can be incorporated to mitigate the variations. To maximize system performance, control systems must regulate the storage system's cycles of charging and discharging.

Grid Integration and Synchronization

Challenge: Due to the fluctuating nature of solar and wind energy systems, synchronizing their output with the grid is a challenging process. To guarantee smooth integration, the generated power's frequency, phase, and voltage must all match those of the grid. Power quality issues such as voltage instability, frequency deviations, and even grid disturbances, can arise from any mismatch.

Solution: Power converters play an important role in grid integration because they transform the variable DC output of solar panels and some wind turbines into steady AC power that can be synchronized with the grid. Phase-locked loops (PLLs) and other control systems are employed to make sure that the output voltage and frequency match with the grid. The control system must oversee the synchronization of each source separately while guaranteeing the system's coordinated operation in hybrid systems, which combine multiple sources. Maintaining grid stability requires advanced controllers that can dynamically modify the output of renewable energy systems and swiftly adjust to changes in grid conditions.

Voltage and Frequency Regulation

Challenge: One of the most significant challenges when dealing with variable renewable energy sources is maintaining voltage and frequency stability. Fluctuations in generation can result in variations in grid voltage and frequency, which can cause instability and potentially harm electrical equipment if they are not adequately managed. The challenge of controlling voltage and frequency becomes even more difficult in hybrid systems, which combine multiple sources with different characteristics.

Solution: Control systems in renewable energy systems must be able to regulate voltage and frequency in real time. This is usually accomplished by using sophisticated power electronics and control algorithms that adjust the power output in response to real-time grid condition measurements. In a hybrid system, for instance, droop control methods can be used to distribute the load among multiple generators, preserving frequency and voltage stability. Furthermore, inertia emulation and frequency support techniques can help stabilize grid frequency, while reactive power compensation techniques can be used to regulate voltage levels.

Fault Detection and Ride-Through Capability

Challenge: The ability to identify and respond to faults, including short circuits or voltage sags, without disconnecting from the grid is essential for renewable energy systems, particularly those that are grid-connected. Fault ride-through (FRT) is a crucial capability that keeps the grid stable amid disturbances. The implementation of FRT capabilities is complicated by the intermittent nature of solar and wind energy, as these systems might not always be able to supply the required power support during a fault.

Solution: Renewable energy systems have advanced control algorithms that can identify faults and begin appropriate responses to improve fault detection and ride-through capability. For instance, the control system may temporarily lower power output or inject reactive power to support grid voltage during a voltage sag. The control system of hybrid systems, which have several energy sources, can transfer the load to more reliable sources, like energy storage or a backup generator, so that it can withstand the fault. To guarantee that renewable energy systems can support grid stability during disruptions, it is imperative to employ strong fault detection algorithms and dynamic control techniques.

Power Quality and Harmonics

Challenge: The non-linear nature of power conversion processes and the unpredictability of the energy sources can cause power quality problems including harmonics, voltage flicker, and imbalances when renewable energy sources are integrated into the grid. For instance, harmonics can lead to higher power system losses, communication system interference, and equipment overheating.

Solution: In order to mitigate power quality issues in renewable energy systems, advanced control techniques are required. To reduce harmonic distortion in the output waveform, both passive and active harmonic filtering are frequently employed. With the use of complex algorithms, active power filters can dynamically modify their operation to compensate for harmonics as they occur. Furthermore, cleaner output waveforms with lower harmonic content can be produced by employing multilevel converters and advanced PWM techniques. To minimize power quality issues and guarantee that the combined output satisfies grid requirements, the control system in hybrid systems must manage the interaction between different sources.

Scalability and Modularity in Hybrid Systems

Challenge: Scalability and modularity are essential for hybrid renewable energy systems, which integrate several energy sources like solar, wind, and storage. Future expansions, such the addition of more energy sources or storage capacity, will require this scalability. A major challenge, though, is making sure the control system can manage increasing complexity without sacrificing performance.

Solution: Distributed control architectures and modular power conversion units are frequently used in hybrid system design to overcome scalability and modularity challenges. While a supervisory control system coordinates the overall functioning, each module functions semi-independently. This modular design offers flexibility in operation and facilitates easy expansion. In order to maintain the system's stability and efficiency when additional components are added, the control system must be designed to handle the interactions between modules. Advanced communication protocols combined with decentralized control strategies are frequently employed to attain the required level of scalability and coordination.

Advanced Control Techniques for Maximizing Efficiency and Reliability

Advanced control techniques are more important than ever as renewable energy sources such as wind and solar are being included into the power grid to increase reliability and efficiency. To guarantee that the energy generated is both effectively used and consistently supplied to the grid, sophisticated control strategies are necessary due to the unpredictable and intermittent nature of these energy sources. This section explores advanced control techniques that are essential to accomplishing these goals, such as artificial intelligence (AI)-based controls, grid-forming and grid-following inverters, Maximum Power Point Tracking (MPPT), and model predictive control (MPC).

Maximum Power Point Tracking (MPPT)

Maximum Power Point Tracking (MPPT) is a basic control method used to optimize energy extraction in renewable energy systems, especially in photovoltaic (PV) solar panels and wind turbines. The power production of these systems can vary greatly because of variations in wind and sunlight. To make sure the system is running at the maximum power point (MPP), where the product of voltage and current is maximized, MPPT algorithms continuously modify the system's operating point.

Techniques:

• Perturb and Observe (P&O): One of the most basic and popular MPPT methods is the P&O method. It entails varying the operating voltage and monitoring the power shift that results. The perturbation continues in the same direction if the power rises, and in the opposite direction if the power decreases.
• Incremental Conductance (INC): To determine the direction of the MPP, the INC approach calculates the derivative of the power with respect to voltage. Although it is more complicated, it is more accurate than P&O under rapidly changing environmental conditions.
• Fuzzy Logic and Neural Networks: To improve tracking speed and accuracy, advanced MPPT methods utilizing fuzzy logic and neural networks have been developed. Compared to traditional methods, these AI-based techniques are more successful in optimizing the MPPT process and can adjust to various conditions.

Benefits: MPPT improves the efficiency of renewable energy systems by guaranteeing that the most energy is recovered from available resources. Given how quickly the environmental conditions can change with solar and wind systems, it is very crucial.

Grid-Forming and Grid-Following Inverters

Grid-Forming Inverters: In microgrid or islanded operations, grid-forming inverters can "form" the grid by producing a steady voltage and frequency. When renewable energy sources serve as the main or only source of electricity, as in distant or off-grid sites, these inverters are essential. They serve as a point of reference for additional inverters and load devices, guaranteeing system stability even in the absence of a main grid connection.

Grid-Following Inverters: On the other hand, grid-following inverters align their output with the voltage and frequency of the existing grid. In grid-tied applications, where renewable energy systems run parallel with the grid, they are frequently utilized. Using the grid as a reference, grid-following inverters provide power to the grid while staying in sync with its voltage and frequency.

Table 3: Grid-forming vs. grid-following inverters

Advanced Control Strategies:

• Virtual Synchronous Machines (VSM): VSM control strategies provide the grid damping and inertia by simulating the behaviors of a traditional synchronous generator. This is especially crucial in systems where traditional inertia is reduced due to the high penetration of renewables.
• Droop Control: Grid-forming inverters employ droop control to distribute load among several inverters in a microgrid. Without requiring communication between inverters, it ensures stable operation and power sharing by adjusting the output power in response to the frequency deviation.

Benefits: Advanced control techniques combined with grid-forming and grid-following inverters improve the stability and reliability of renewable energy systems, especially in distributed generation and microgrid applications.

Model Predictive Control (MPC)

Model Predictive Control (MPC) is an advanced control strategy that optimizes control actions and predicts future behavior using a mathematical model of the system. When balancing several control objectives at once, such as optimizing efficiency, preserving power quality, and guaranteeing grid stability, MPC is very helpful in renewable energy systems.

Applications in Renewable Energy:

• Wind Energy: MPC can optimize wind turbine performance in wind energy systems by modifying the generator torque, blade pitch, and other parameters to maximize energy capture and reduce mechanical stress.
• Solar Energy: MPC can be used to control the interaction with energy storage systems, optimize the MPPT process, and guarantee seamless grid integration in PV systems.

Benefits: In renewable energy systems, MPC offers a versatile and effective control method that enables proactive control action adjustment and disturbance prediction. This results in increased system reliability, minimized equipment wear and tear, and improved efficiency.

Artificial Intelligence (AI)-Based Control

In order to manage the complexity and unpredictability of renewable energy control systems, artificial intelligence (AI) is being incorporated into these systems more and more. Artificial intelligence (AI)-based control techniques, such as machine learning and deep learning, have the capacity to examine enormous datasets, recognize patterns, and make decisions in real time that maximize system performance.

Applications:

• Predictive Maintenance: AI can minimize downtime and increase the lifespan of renewable energy assets by predicting equipment failures and maintenance requirements through the analysis of operational data.
• Energy Forecasting: AI algorithms can estimate energy production based on weather data, enabling improved planning and integration of renewable energy into the grid.
• Dynamic Optimization: Renewable energy systems can be dynamically optimized using AI-based control, which can change parameters in real-time to increase reliability and efficiency.

AI integration improves control systems' ability to handle the complex dynamics of renewable energy systems, resulting in more reliable and efficient operations. Additionally, AI-based control makes it possible for autonomous and adaptive operation, which lessens the need for human intervention and improves a system's ability to adapt to changing conditions.

Energy Storage Management

Additional control opportunities and challenges arise when energy storage systems are integrated with renewable energy sources. To ensure that storage systems are used as efficiently as possible to balance supply and demand, stabilize the grid, and deliver backup power, advanced control techniques are needed to manage their charging and discharging.

Control Strategies:

• State of Charge (SoC) Management: Controlling the SoC of batteries is critical for extending their life and making them available when needed. Advanced SoC management algorithms consider issues including battery degradation, temperature, and usage patterns.
• Peak Shaving and Load Shifting: Energy storage can be utilized to reduce demand peaks and transfer loads to off-peak hours, easing system strain and lowering energy costs. Control systems must optimize the time and amount of these activities in order to maximize their advantages.

Benefits:The overall efficiency and reliability of renewable energy systems are improved by efficient energy storage management, which also lessens the impact of variability in renewable energy generation and allows improved grid integration.

Case Study: Control Systems in Renewable Energy Integration

The integration of renewable energy sources such as solar and wind into the power grid poses significant challenges that necessitate sophisticated control systems to ensure efficient and dependable operation. This case study looks at a real-world renewable energy integration project, specifically the control systems utilized to manage the fluctuation of renewable energy generation, assure grid stability, and maximize overall system efficiency.

In this case study, we examine a hybrid renewable energy plant that supplies electricity to a regional grid by integrating a large-scale photovoltaic (PV) solar farm, a wind farm, and an energy storage system (ESS). By utilizing the complementing characteristics of solar and wind energy, the facility is intended to supply the grid with a steady and reliable power supply. While the wind farm generates power throughout day and night, depending on wind conditions, the PV solar farm produces electricity during the day. In addition to storing extra energy and supplying backup power during times of low generation, the energy storage system is utilized to balance supply and demand.

Control System Architecture

This hybrid renewable energy plant's control system is made to coordinate the operations of the energy storage units, wind turbines, and solar panels. The architecture of the control system consists of:

Centralized Supervisory Control: The plant's whole operation is managed by the centralized control system. It makes decisions using predictive algorithms and current situations while monitoring real-time data from the grid, energy storage system, and all energy sources.

Local Controllers: The immediate control tasks, such MPPT for the PV panels, pitch control for the wind turbines, and charge/discharge management for the batteries, are managed by the local controllers of each plant component (solar farm, wind farm, and energy storage).

Communication Network: The local controllers and the centralized supervisory control system are connected by a fast communication network, which guarantees real-time coordination and data exchange.

Predictive Analytics and AI: In order to predict energy production based on weather data, anticipate demand patterns, and optimize plant operation to maximize efficiency and reliability, the control system uses predictive analytics and AI-based algorithms.

Key Control Challenges and Solutions

Variability in Renewable Energy Generation

Challenge: The fundamental issue with integrating solar and wind energy is their variability. Solar energy output varies according to the time of day and weather conditions, whereas wind energy is determined by wind speed, which can fluctuate rapidly.

Solution: To continuously modify the operating conditions and guarantee that the maximum amount of power is extracted under varying conditions, the control system uses MPPT algorithms for both solar and wind energy systems. In order to smooth out the unpredictability, AI-based forecasting technologies also predict energy production and modify the energy storage system's functioning.

Grid Synchronization and Stability

Challenge: Synchronizing the hybrid plant's output with the grid is crucial for ensuring grid stability, particularly during periods of fluctuating renewable energy generation.

Solution: To make sure that the output voltage and frequency are in sync with the grid, the plant uses grid-forming inverters with advanced control algorithms. In order to enhance grid stability and provide inertia, especially during transient events, the control system additionally incorporates a virtual synchronous machine (VSM) functionality.

Energy Storage Management

Challenge: The energy storage system is critical for balancing supply and demand but regulating the state of charge (SoC) and assuring the battery's longevity are key challenges.

Solution: The control system uses advanced SoC management algorithms that include variables like temperature, usage patterns, and battery health. To ensure optimum performance and longevity, the system constantly modifies the battery's cycles of charging and discharging based on real-time data and predictive models.

Power Quality and Harmonic Mitigation

Challenge: An energy storage system combined with several renewable energy sources can result in power quality issues including voltage fluctuations and harmonics.

Solution: The plant generates clean output waveforms with low harmonic distortion by using multilevel converters and advanced PWM techniques. In order to ensure that the power provided to the grid satisfies strict quality standards, active power filters are also used to correct for any remaining harmonics.

Performance and Outcomes

The hybrid renewable energy plant's control systems have shown to be highly successful, contributing to its high efficiency and reliability. Among the key performance indicators are:

High Energy Yield: The energy yield from both the solar and wind components has been maximized through the use of MPPT and predictive analytics, guaranteeing that the plant operates at its optimum capability under changing conditions.

Grid Stability: Even during times of high variability in renewable energy generation, the grid has been strongly supported by the grid-forming inverters and VSM functionality, which have maintained voltage and frequency stability.

Optimized Energy Storage: The energy storage system's advanced control has led to the batteries' effective utilization, longer lifespan, and lower maintenance needs.

Reduced Power Quality Issues: Grid standards have been achieved through the implementation of multilevel converters and active filters, which have reduced harmonic distortion and other power quality issues.
