Stepper Motor Solution for 3D Printer and Laser Engraver

MPS stepper motor drivers provide improved motion quality

• Monitor current at all times with internal current sensing
• Lower system cost by removing need for external low-ohm resistors
• Better current control
• Quiet smooth performance
• Small package size

Advanced design features provide a superior solution

• Internal Current Sense
• Proprietary Lossless measurement technique
• ISet Pin for desired peak current
• No tuning of stepper decay mode needed increasing performance
• 28 pin TSSOP Package or 5mm x 5mm QFN packaging

The MPS solution reduces costs

• Does not require current sense resistors
• Less PCB area

Easily transition your design

• Functionally compatible with existing solutions
• MPS Engineer Support via MPS Now

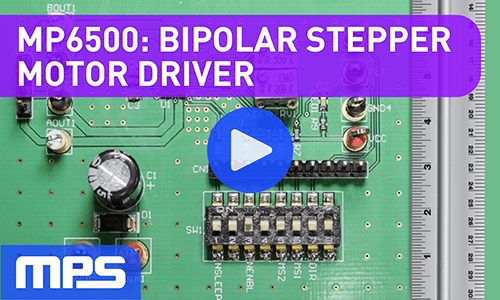

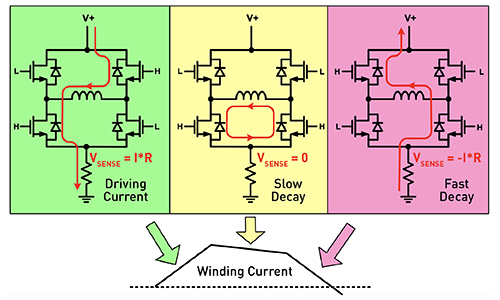

Watch Video	Read Application Note
