MP86920

Intelli-Phase^TM Solution with Integrated HS-FETs, LS-FETs, and Driver in an LGA (4mmx5mm) Package

Datasheet

Description

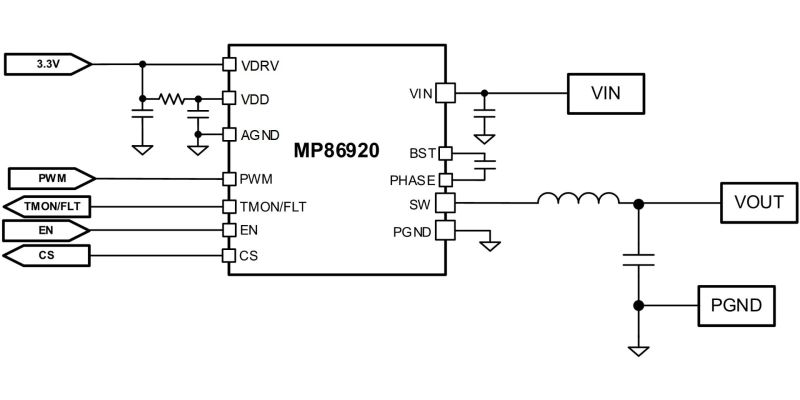

The MP86920 is a monolithic half-bridge driver with built-in internal power MOSFETs and gate drivers. It can achieve up to 20A of continuous output current (I_OUT) across a wide input voltage (V_IN) supply range.

The integrated driver and MOSFETs provide high efficiency by optimizing the dead time and reducing parasitic inductance. This device works with tri-state output controllers, and can operate between 100kHz and 2MHz. It also comes with a general-purpose current-sensing and temperature-sensing.

The device is well-suited for server and telecom applications where efficiency and small size are a premium.

The MP86920 is available in an LGA-27 (4mmx5mm) package.

Features & Benefits

Wide 4.5V to 16V Operating Input Range
Up to 20A Output Current (I_OUT)
Accepts Tri-State Pulse-Width Modulation (PWM) Signals
Built-In Switch for Bootstrap
Current Sense
Temperature Sense
Over-Current Protection (OCP)
Over-Temperature Protection (OTP)
Fault Reporting
Used for Multi-Phase Operation
Available in an LGA-27 (4mmx5mm) Package

Active Part Numbers:

MP86920GLV-Z MP86920GLV-P
