MP8004
Active Part Numbers:
MP8004GQW-P MP8004GQW-Z
Meaning of P & Z
Evaluation Tools
EV8004-QW-00A Evaluation Kit 13W 802.3af PoE-Powered Device Interface with Flyback DC/DC Converter Evaluation Board

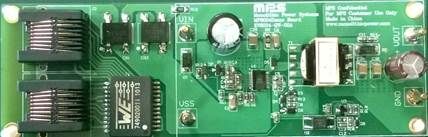

The EV8004-QW-00A is an evaluation board for the MP8004, which is an integrated IEEE 802.3af PoE-compliant powered device (PD) power supply solution. It includes a PD interface and an isolated/non-isolated flyback converter.
The PD interface includes detection and classification modes, as well as a 100V output pass device. Inrush current limit is included to slowly charge the input capacitor. The DC/DC converter includes a 150V power switch, and is capable of delivering 13W output power with high efficiency. It has internal soft-start, auto-retry, over current, short circuit, and over-voltage protection. It can also skip cycles during light-load conditions.
The MP8004 is available in a thermally-enhanced QFN-20 (4mmx6mm) package.
MP8004 Resources
-
UNDERSTANDING POWER OVER ETHERNET AND POE CONTROLLERS AND CONVERTERSThis introduction to power over Ethernet (PoE) covers the basics of PoE standards, how PoE structure functions, and how PoE works between the PSE and PD. PoE enables an Ethernet cable to transmit DC power while also transmitting data in parallel to IP terminal devices. PoE power delivery includes two equipment types: Power-sourcing equipment (PSE) or a power provider, and powered devices (PDs) or ...
-
POWER OVER ETHERNET (POE) POWER SUPPLY PROCESS ACROSS IEEE 802.3AF/AT/BT PROTOCOLAlthough there are various power supply types, this article will focus on Power over Ethernet (PoE) power supplies. In particular, PoE power supplies where the power sourcing equipment (PSE) supplies power to the powered device (PD) terminal equipment through the network cable. Figure 1 shows common PoE power supply equipment, including the PoE switch as well as power-receiving equipment (e.g. wir...
-
HOW TO OPTIMIZE A POWER OVER ETHERNET (POE) PD DESIGNPower over Ethernet (PoE) solutions enable Ethernet cables to transmit DC power while simultaneously transmitting data in parallel to IP terminal devices — all without changing the existing wire connections set by the Ethernet standard. Transmitting power and data in one cable simplifies installation, enhances reliability, and reduces cost by eliminating the need for a power and Ethernet line, whi...
-
FULLY INTEGRATED POE PD INTERFACE: MP8030The MP8030 is a fully integrated, 71W PoE PD interface with a high-efficiency flyback/forward controller, and is compatible with 802.3af/at/bt specifications. Power Over Ethernet, or PoE, devices can transmit both network and power signals with a single cable. By using an N-channel MOSFET in place of a diode and integrating a MOSFET at Gate 2, the MP8030 significantly reduces voltage drop, reduces...
-
THE POWER OVER ETHERNET (POE) POWERED MP8030With the abundance of electronic products, it is easy for desktops to become cluttered between various desktop power and signal interface cables. The development of Power over Ethernet (PoE) has resolved the challenge of managing multiple wires. PoE provides DC power while transmitting data signals for IP-based terminal equipment without changing the existing Ethernet Category 5 cabling infrast...
-
DESIGNING A POWER OVER ETHERNET (POE) SOLUTIONPower over Ethernet (PoE) is a power supply scheme that uses a network cable to transmit power. This scheme includes power sourcing equipment (PSE), a powered device (PD), and a network cable. With the popularity of IP device applications, PoE has become widespread among users due to its low installation costs, scalability, ease of management, and global compatibility. After over a decade since t...
-
DESIGNING AN ACTIVE-CLAMP FORWARD CONVERTER FOR POE-BT APPLICATIONS (PART I)When compared to traditional AC power supply modes, power over Ethernet (PoE) power supplies can simultaneously supply power and transmit data through an existing Ethernet cable. By integrating the power supply and data cables, PoE applications are cost-effective and provide flexible installation. PoE solutions are rapidly growing in popularity across multiple industries as applications continue t...
Learn about our Evaluation Kit
