MP2011A
NOT RECOMMENDED FOR NEW DESIGNS
MP2011A continues to be in production for existing customers. Please consider this alternative for new designs:
MP2015A
MP2015A
24V, 150mA, Low Quiescent Current Linear Regulator
Features & Benefits
- 2.5V to 24V Input Range
- 3.3µA Quiescent Supply Current
- Stable With low-value output ceramic capacitor (> 0.47μF)
- 150mA specified current for QFN-6 and QFN-8 Packages
- 100mA specified current for TSOT23-4 Packages
- 700mV Dropout at 150mA Load

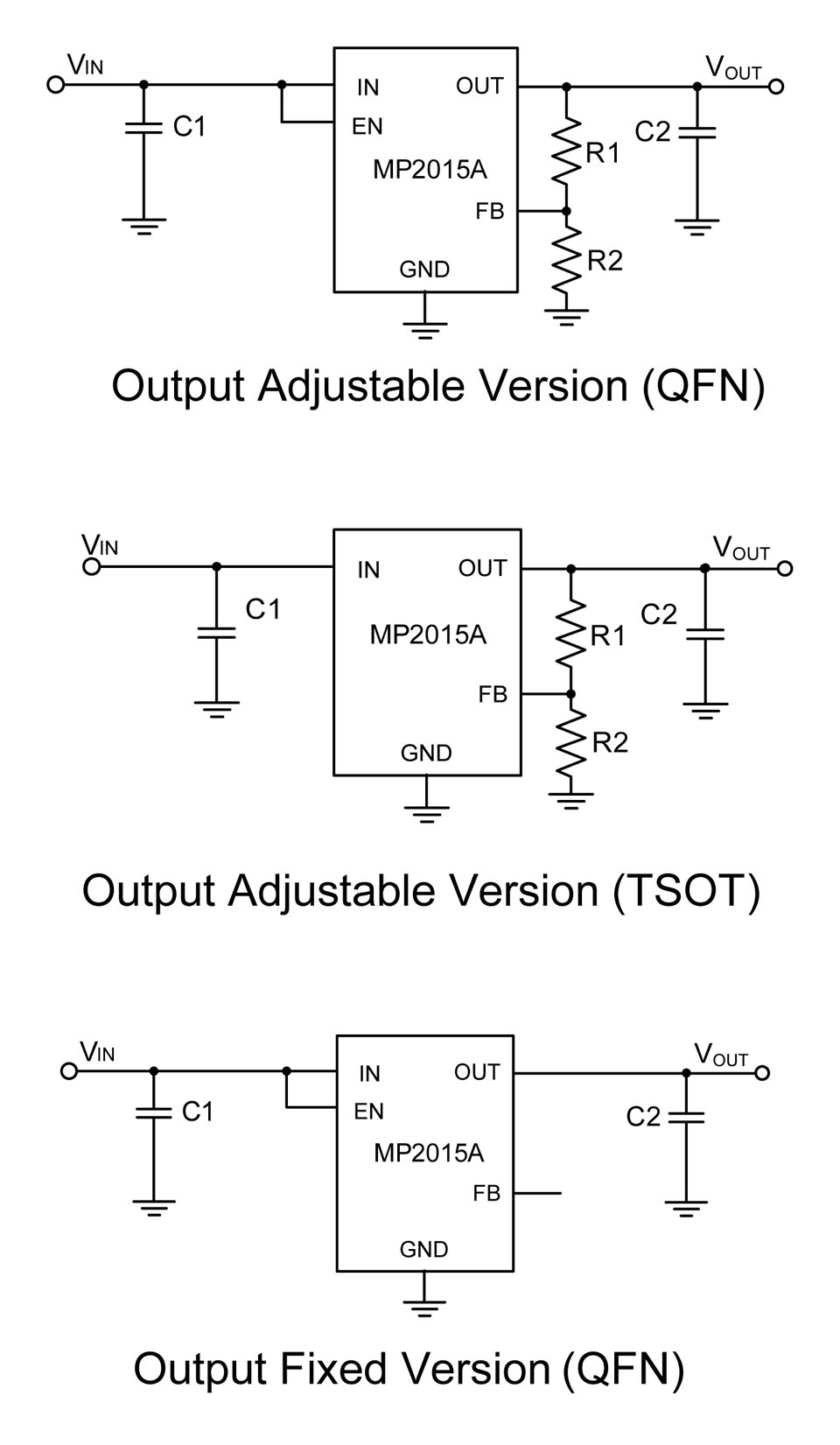

- Available in Fixed 3.3V Output and Adjustable Output (1.215V to 15V) versions
- Output ±2% Accuracy for QFN-6 and QFN-8 Packages
- Output ±4% Accuracy TSOT23-4 Packages
- Specified current limit
- Thermal Shutdown and Short-Circuit Protection
- Available in TSOT23-4, QFN-6 (2mmx2mm), or QFN-8 (3mmx3mm) Packages
… and many more!
Active Part Numbers:
MP2011AGG-33-Z MP2011AGG-Z
Meaning of P & Z
MP2011A Resources
-
