MP1496
NOT RECOMMENDED FOR NEW DESIGNS

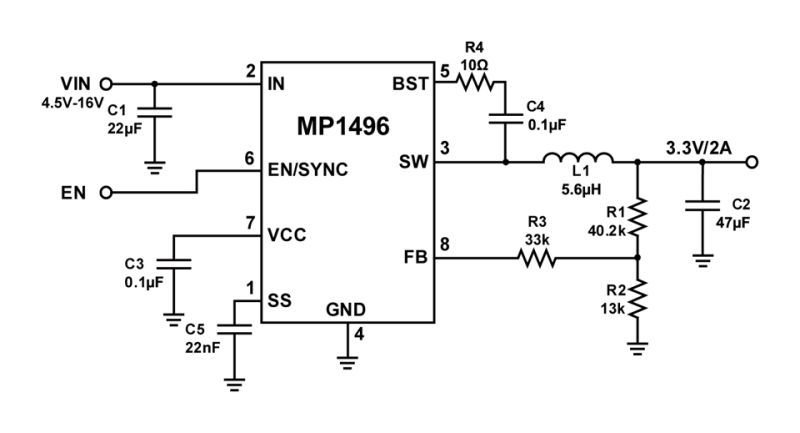

High-Efficiency, 2A, 16V, 500kHz, with SS, Synchronous Step-Down Converter
Active Part Numbers:
MP1496DJ-LF-P MP1496DJ-LF-Z MP1496DJ-LF MP1496XN
Meaning of P & Z
Recommended Inductors
MP1496 Resources
-
