MP6514
NOT RECOMMENDED FOR NEW DESIGNS
MP6514 continues to be in production for existing customers. Please consider this alternative for new designs:
MP6513GJ-Z

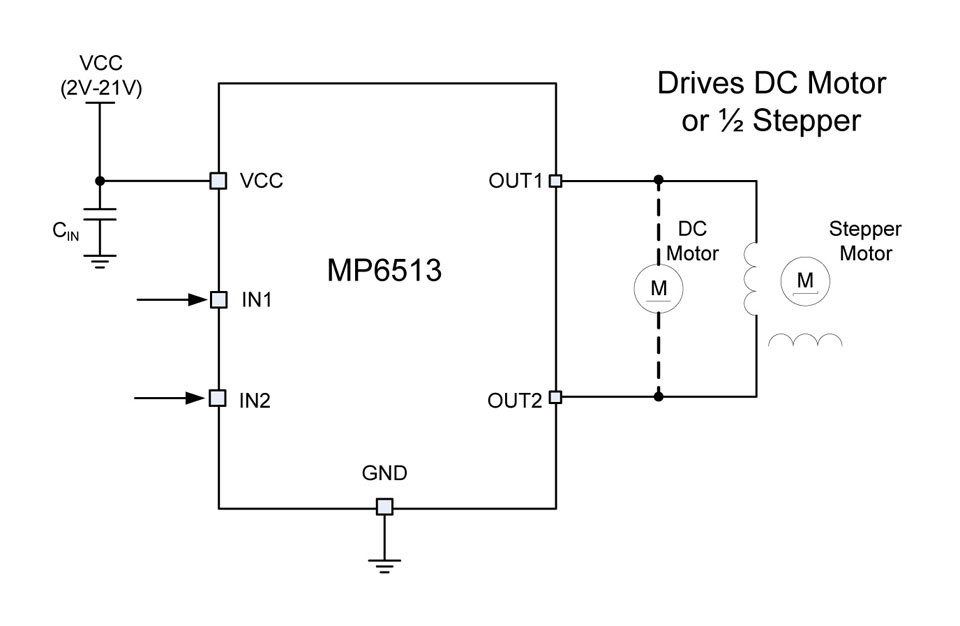

MP6513GJ-Z
2.5V - 21V, 0.8A, H-Bridge Motor Driver in a TSOT23-6
Features & Benefits
- Wide 2.5V to 21V Operating Input Range
- 0.8A Maximum Output Current
- Low MOSFET On Resistance (HS: 500mO; LS: 500mO)
- Forward, Reverse, Coast, or Brake Output Modes
- Low Standby Circuit Current when Inputs 1 and 2 are Both Low
- Thermal Shutdown
- Internal Charge Pump
- Cycle-by-Cycle Over-Current Protection (OCP)
- Short-Circuit Protection (SCP)
- Available in a TSOT23-6 Package
… and many more!
Active Part Numbers:
MP6514GGU-P MP6514GGU-Z
Meaning of P & Z
Evaluation Tools
EV6514-G-00A Evaluation Kit 0.6A, 14V, Half-Bridge Motor Driver Evaluation Board
The EV6514-G-00A is an evaluation board for the MP6514. The MP6514 is a half-bridge motor driver that consists of four N-channel power MOSFETs, which can drive two DC motors in a single-ended connection with separate controls for the high-side or low-side MOSFETs. The motor can be connected to either the supply or GND.
It operates from a supply voltage range of 2.5V to 14V, and can deliver motor current up to 0.6A. The input control signals for the MP6514 are applied through the connector.
