OrderMP6540H
Active Part Numbers:
MP6540HGU-P MP6540HGU-Z
Meaning of P & Z
Evaluation Tools

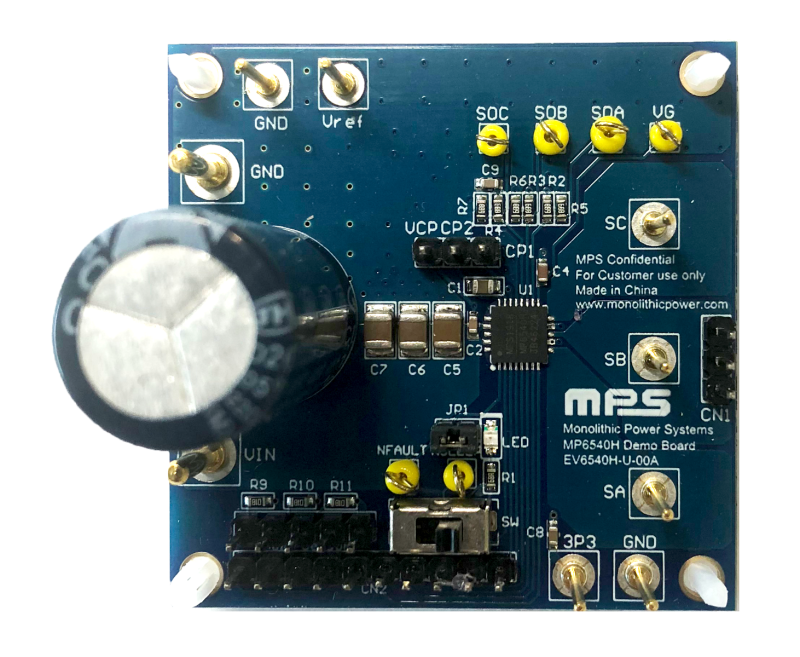

EV6540H-U-00A Evaluation Kit 6A, 50V Three-Phase BLDC Motor Driver Evaluation Board
The EV6540H-U-00A is an evaluation board for the MP6540HGU, a three-phase BLDC motor driver.
It operates from a supply voltage of up to 50V. It integrates three half-bridges consisting of 6 N-channel Power MOSFETs. The rotor position information is provided by the Hall sensors assembled in the motor and the driving control signals are generated by the external controller, such as MCU, FPGA, etc.
MP6540H Resources
-
DESIGNING A BRUSHLESS MOTOR DRIVER CIRCUIT WITH THE MP6540MPS recently released an integrated, compact gate driver circuit with six power MOSFETs. This article discusses the MP6540 series, including the MP6540A, MP6540H, and the MP6540HA. The MP6540 is a 3-phase, brushless DC (BLDC) motor driver that integrates three half-bridges consisting of six N-channel power MOSFETs. Conventional motor driver architecture combines a motor driver chip and the power ...
-
COMPACT POWER STAGE ICS USE CASE: ROBOTICSIn this use case, well consider the application of compact power stage ICs in Robotics. Robots are finding new applications every day. Small, specialized robots have much different engineering requirements than large factory floor robots, like those used to assemble cars, that we usually think of. Some robots are now quite small – small enough to fit on a desk. And others, like those used to a...
-
NEW, THREE-PHASE INTEGRATED POWER STAGE MOTOR DRIVERIntroducing the MP6540 and MP6540H: All new, highly integrated three-stage motor driver power stages from MPS. These parts offer high output current in a tiny package, with excellent efficiency and integrated FETs, saving design time and board space. MPS Motor Drivers Used: MP6540MP6540HMP6540AMP6540HA
-
