EVQ2451-G-01A

0.3A, 2MHz, 36V Step-Down Converter Evaluation Board

Datasheet

Shopping Cart

Order

Overview
Technical Forum
Quality
Order

Products
EV Kits and EV Boards
EVQ2451-G-01A

EVQ2451-G-01A

0.3A, 2MHz, 36V Step-Down Converter Evaluation Board

Datasheet

Description

The EVQ2451-G-00A is an evaluation board for the MPQ2451, a fixed 2MHz frequency step-down switching regulator with an integrated internal high-side high voltage power MOSFET. The IC provides 0.3A output with current mode control for fast loop response and easy compensation.

High power conversion efficiency over a wide load range is achieved by scaling down the switching frequency at light load condition to reduce the switching and gate driving losses.

The soft-start function helps prevent inductor current runaway during startup and thermal shutdown provides reliable, fault tolerant operation.

By switching at 2MHz, smaller value inductor and input/output capacitor can be used to lower down cost and save board space.

Product Evaluated

36V, 2MHz, 0.6A Step-Down Converter Industrial-Grade

36V, 2MHz, 0.6A Step-Down Converter Automotive-Grade

Features & Benefits

Wide Operating Input Range
Fixed 2MHz Switching Frequency
0.3A Output Current

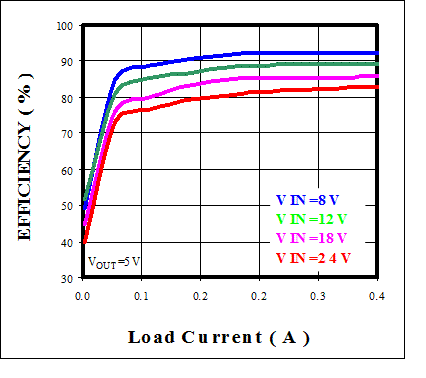

Up to 90% Efficiency

Active Part Numbers:

EVQ2451-G-01A

Buy direct from MPS

Standard Pricing

Quantity Price
1

$50.00 /unit

In stock

Arrives 3-4 business days.
Shipping only $5 per order.

SEE ALL BUYING OPTIONS

View distributor pricing and availability
