MP8200
NOT RECOMMENDED FOR NEW DESIGNS
MP8200 continues to be in production for existing customers. Please consider this alternative for new designs:

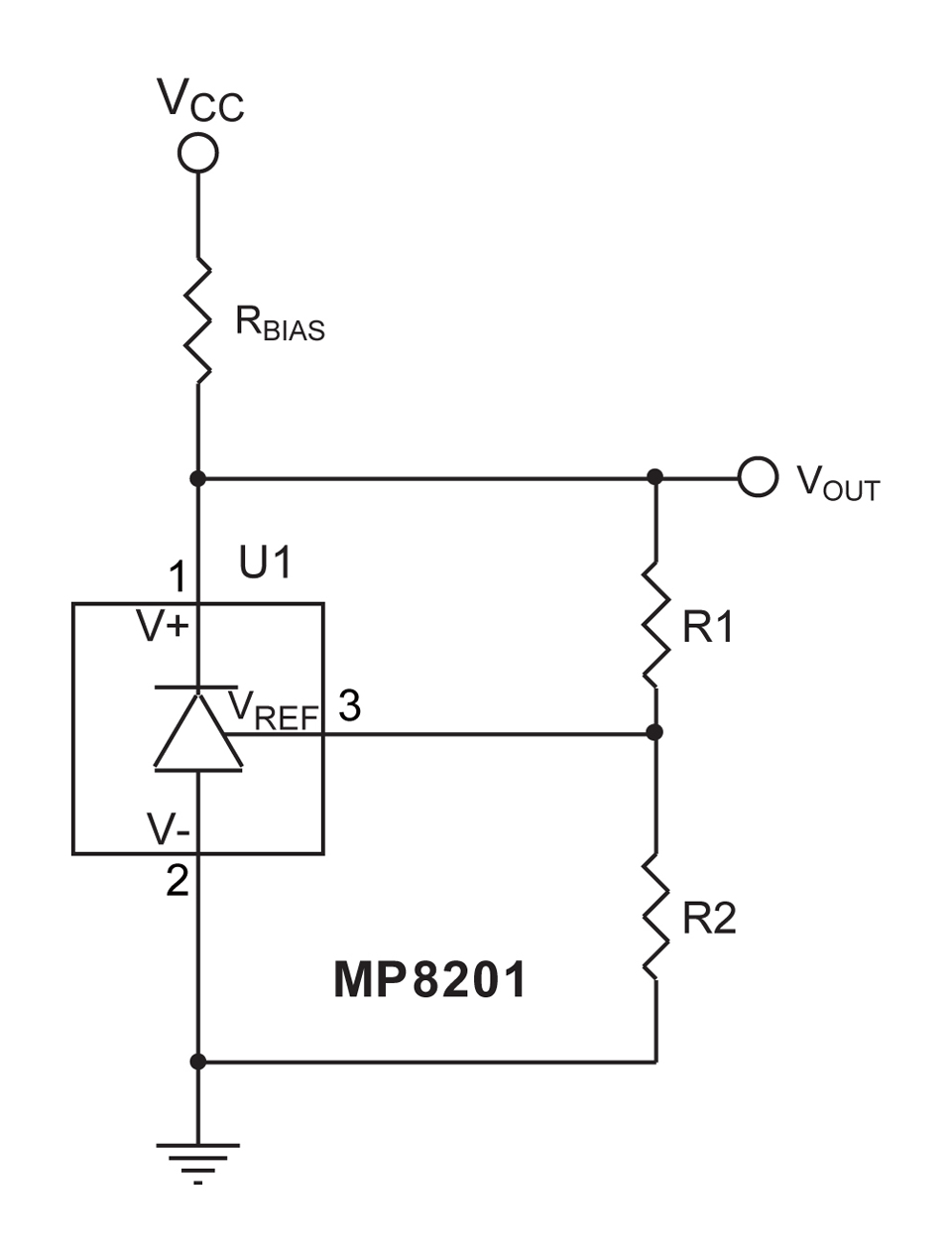

MP8201
MP8201
1.0V Shunt Reference
Features & Benefits
- Wide Input Voltage Range: 1.2V to 12V
- Operating Current From 60µA to 20mA
- SOT-23 Package
- Initial Accuracy: ±0.5%
- 1Ω Dynamic Output Resistance of
- Stable With No External Capacitor
- Temperature Range: -40°C to +85°C
… and many more!
Active Part Numbers:
MP8200DT-LF-P MP8200DT-LF-Z
Meaning of P & Z
