- MPQ8896
MPQ8896
Session textval
Session Titefor popup

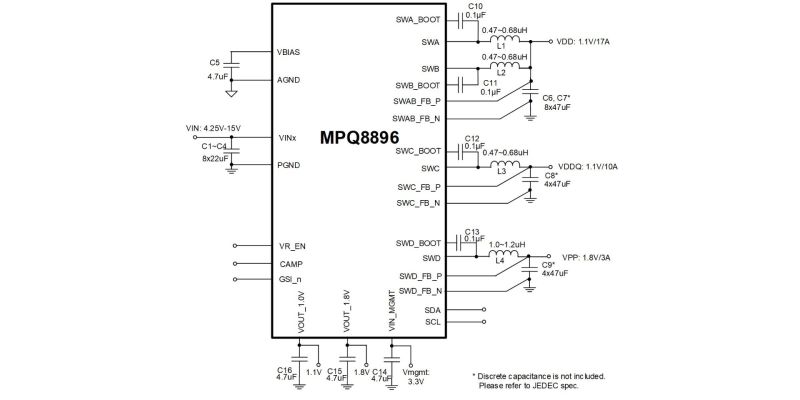

Description
The MPQ8896 is a complete power management IC (PMIC) that integrates four high-efficiency, step-down DC/DC converters and a flexible logic interface for DDR5.
The MPQ8896 provides four channel buck outputs. Buck A and buck B can be configured as a dual-phase interleaving buck converter with current-sharing performance. Buck C and buck D can be configured as two single-phase buck converters that are designed to support the specific DDR5 power requirements.
The DC/DC converters provide constant-on-time (COT) control for fast transient response. The configurable 500kHz to 1250kHz switching frequency (fSW) greatly reduces external inductor and capacitor size.
Full protection features include under-voltage lockout (UVLO), over-current protection (OCP), over-voltage protection (OVP), under-voltage protection (UVP), and thermal shutdown.
The MPQ8896 requires a minimal number of external components, and it is available in a space-saving QFN-35L (5mmx5mm) package.
-
Show more
Show less
Features & Benefits
- Wide 4.25V to 15V Input Voltage (VIN) Range
- JEDEC PMIC5020 Power Management IC (PMIC) Specification Rev 1.0 Compliant
- Adaptive Constant-On-Time (COT) for Ultra-Fast Transient Response
- Four High Efficiency Step-Down Regulators:
- Buck A: 8.5A DC/DC Converter
- Buck B: 8.5A DC/DC Converter
- Buck C: 10A DC/DC Converter
- Buck D: 3A DC/DC Converter
- Buck A/B Support Up to 17A of Continuous Current in Dual-Phase Mode
- I2C/I3C Configurable Output Voltage (VOUT) with Slew Rate Control:
- SWA/B/C: 0.8V to 1.435V in 5mV Steps, or 0.6V to 1.235V in 5mV Steps
- SWD: 1.5V to 2.135V in 5mV Steps, or 2.2V to 2.835V in 5mV Steps
- Configurable Switching Frequency (fSW): 500kHz to 1250kHz
- Differential VOUT Remote Sense
- Two Low-Dropout (LDO) Regulators:
- VOUT_1V: 0.9V to 1.2V in 0.1V Steps
- VOUT_1.8V: 1.7V to 1.9V in 0.1V Steps
- Fully Compliant with I2C and I3C Specifications
- Accurate VOUT, Current, Power, and Junction Temperature (TJ) Monitoring
- Open-Drain Power Good (PG) Indication and General Status Interrupt
- Configurable Slave Address via the Multiple-Time Programmable (MTP) Memory
- Selectable Pulse-Frequency Modulation (PFM)/Pulse-Width Modulation (PWM) Mode, Adjustable Frequency, and Current Limit
- Pre-Biased Start-Up
- Over-Current Protection (OCP)
- Under-Voltage Protection (UVP)
- Under-Voltage Lockout (UVLO)
- Thermal Shutdown
- Over-Voltage Protection (OVP)
Available in a QFN-35L (5mmx5mm) Package
Active Part Numbers:
MPQ8896GU-xxxx-Z MPQ8896GU-xxxx-P
Part numbers ending in P and Z are the same parts. P and Z only indicates reel size.
Meaning of P & Z
