MPQ4340-AEC1
36V, 4A, Ultra-Low Quiescent Current, Synchronous Step-Down Converter with Multi-Phase Capability, AEC-Q100 Qualified
Session textval
Session Titefor popup
Description
The MPQ4340 is a configurable-frequency (350kHz to 2.5MHz), synchronous step-down switching converter with an integrated, internal high-side MOSFET (HS-FET) and low-side MOSFET (LS-FET). It provides up to 4A of highly efficient output current (IOUT) with fixed-frequency, zero-delay pulse-width modulation (PWM) (ZDP) control for near optimal transient response.
The wide 3.3V to 36V input voltage (VIN) range with 42V load dump support accommodates a variety of step-down applications in automotive input environments. A 1μA shutdown current (ISD) allows the device to be used in battery-powered applications.
High power conversion efficiency across a wide load range is achieved by scaling down the switching frequency (fSW) under light-load conditions to reduce switching and gate driver losses. An open-drain power good (PG) signal indicates whether the output voltage (VOUT) is within 94% to 106% of its nominal voltage range. Thermal shutdown provides reliable, fault-tolerant operation. A high duty cycle and low-dropout (LDO) mode are provided for automotive cold-crank conditions.

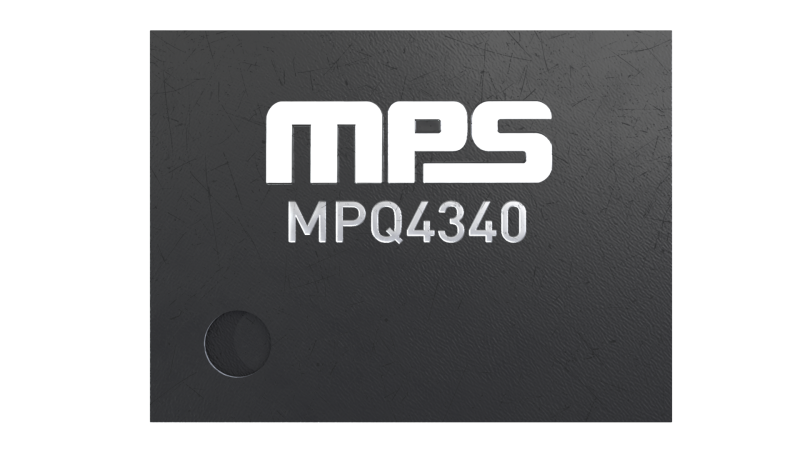

The MPQ4340 is available in a QFN-17 (3mmx4mm) package, and it is AEC-Q100 qualified.
-
Show more
Show less
Features & Benefits
- Designed for Automotive Applications
- 42V Load Dump Tolerance
- Supports Up to 3.1V Cold Crank
- Low-Dropout (LDO) Mode
- Up to 4A of Continuous Output Current (IOUT)
- Continuous Operation Up to 36V
- Zero-Delay PWM (ZDP) Control
- Multi-Phase Capability
- 20ns Minimum On Time
- -40°C to +150°C Operating Junction Temperature (TJ) Range
- Available in AEC-Q100 Grade 1
- Increases Battery Life:
- 1μA Low Shutdown Current (ISD)
- 3μA Sleep Mode Quiescent Current (IQ)
- Advanced Asynchronous Modulation (AAM) Mode Increases Efficiency under Light Loads
- High Performance for Improved Thermals:
- Internal 60mΩ High-Side MOSFET (HS-FET) and 35mΩ Low-Side MOSFET (LS-FET)
- Optimized for EMC/EMI:
- 350kHz to 2.5MHz Configurable Switching Frequency (fSW)
- Symmetric VIN Pinout
- Frequency Spread Spectrum (FSS) Modulation
- CISPR25 Class 5 Compliant
- MeshConnectTM Flip-Chip Package
- Additional Features:
- Fixed Output Options: 1V, 1.1V, 1.8V, 2.5V, 3V, 3.3V, 3.8V, or 5V
- Synchronizable to External Clock
- Synchronized Clock Output
- Power Good (PG) Output
- External Soft Start (SS)
- Over-Current Protection (OCP) with Hiccup Mode
- Available in a QFN-17 (3mmx4mm) Package with Wettable Flanks
Active Part Numbers:
MPQ4340GLE-33-AEC1-Z MPQ4340GLE-33-AEC1-P MPQ4340GLE-5-AEC1-Z MPQ4340GLE-5-AEC1-P
Part numbers ending in P and Z are the same parts. P and Z only indicates reel size.
Meaning of P & Z
