42V Load Dump Tolerant, 1A, Ultra-Compact, Low Quiescent Current, Synchronous Step-Down Converter, AEC-Q100 Qualified

Datasheet

Description

The MPQ4321 is a configurable-frequency (350kHz to 2.5MHz), synchronous, step-down switching converter with integrated internal high-side and low-side power MOSFETs (HS-FET and LS-FET, respectively). The device can achieve up to 1A of highly efficient output current (I_OUT) with peak current mode control.

The wide 3.3V to 36V input voltage (V_IN) range with 42V load dump tolerance accommodates a variety of step-down applications in automotive input environments. A 1μA shutdown mode quiescent current allows the device to be used in battery-powered applications.

High power conversion efficiency across the wide load range is achieved by scaling down the switching frequency (f_SW) under light-load conditions to reduce the switching and gate driver losses. An open-drain power good (PG) signal indicates whether the output is within 94.5% to 105.5% of its nominal voltage.

Frequency foldback helps prevent inductor (I_L) current runaway during start-up. Thermal shutdown provides reliable, fault-tolerant operation. A high duty cycle and low-dropout mode are provided for automotive cold-crank conditions.

The MPQ4321 is available in a QFN-12 (2mmx3mm) package or a QFN-12 (3mmx4mm) package with wettable flanks.

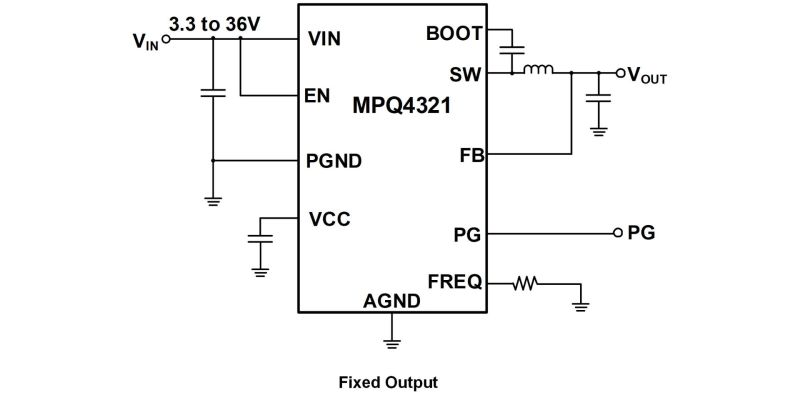

Features & Benefits

Designed for Automotive Applications:

42V Load Dump Tolerant
Supports 3.1V Cold Crank
Low-Dropout Mode
1A of Continuous Output Current (I_OUT)
Continuous Operation Up to 36V
-40°C to +150°C Operating Junction Temperature (T_J)
150°C Absolute Maximum T_J
65ns Minimum On Time (t_{ON_MIN})
50ns Minimum Off Time (t_{OFF_MIN})

Increases Battery Life:

1µA Shutdown Current
20µA Sleep Mode Quiescent Current
Advanced Asynchronous Modulation (AAM) Mode For High Efficiency at Light Loads

High Performance for Improved Thermal Performance:

Integrated 70mΩ High-Side MOSFET (HS-FET) and 50mΩ Low-Side MOSFET (LS-FET)

Optimized for EMC/EMI Reduction:

Frequency Spread Spectrum Modulation
Symmetric VIN Pinout
CISPR25 Class 5 Compliant
350kHz to 2.5MHz Configurable Switching Frequency (f_SW)
MeshConnect^TM Flip-Chip Package

Additional Features:

Power Good (PG) Output
Over-Current Protection (OCP) with Hiccup Mode
Available in a QFN-12 (2mmx3mm) Package or a QFN-12 (3mmx4mm) Package with Wettable Flanks
Available in AEC-Q100 Grade 1

Active Part Numbers:

MPQ4321GDE-AEC1-Z MPQ4321GDE-5-AEC1-Z MPQ4321GLE-AEC1-Z MPQ4321GDE-AEC1-P MPQ4321GDE-5-AEC1-P MPQ4321GLE-AEC1-P

Meaning of P & Z

Related Products

EVQ4321-D-00A 36V, 1A, Low-I_Q, Synchronous Step-Down Converter in a QFN-12 Package Evaluation Board, AEC-Q100 Qualified

The EVQ4321-D-00A evaluation board is designed to demonstrate the capabilities of the MPQ4321, a 350kHz to 2.5MHz configurable-frequency, synchronous, step-down switching regulator with integrated, internal high-side MOSFETs (HS-FETs) and low-side MOSFETs (LS-FETs).

The MPQ4321 provides 1A of highly efficient output current (I_OUT) with peak current mode control. The wide 3.3V to 36V input voltage (V_IN) range and 42V load dump tolerance accommodate a variety of step-down applications in automotive input environments.

A 1μA quiescent current (I_Q) in shutdown mode allows the device to be used in battery-powered applications. High power conversion efficiency across a wide load range is achieved by scaling down the switching frequency (f_SW) under light-load conditions, which reduces the switching and gate driver losses.

An open-drain power good (PG) signal indicates whether the output is within 94.5% to 105.5% of its nominal voltage. Frequency foldback helps prevent inductor current (I_L) runaway during start-up. Thermal shutdown provides reliable, fault-tolerant operation. A high duty cycle and low-dropout (LDO) mode are provided for automotive cold-crank conditions.

The EVQ4321-D-00A is fully assembled and tested. The MPQ4321 is available in a QFN-12 (2mmx3mm) package with wettable flanks. It is available in AEC-Q100 Grade 1.
