MPQ4230

MPQ4230

NOT RECOMMENDED FOR NEW DESIGNS

36V, 6A Peak, Buck-Boost Converter with I²C Interface for Automotive Power Delivery, AEC-Q100

ALTERNATIVE PART

MPQ4230 continues to be in production for existing customers. Please consider this alternative for new designs:

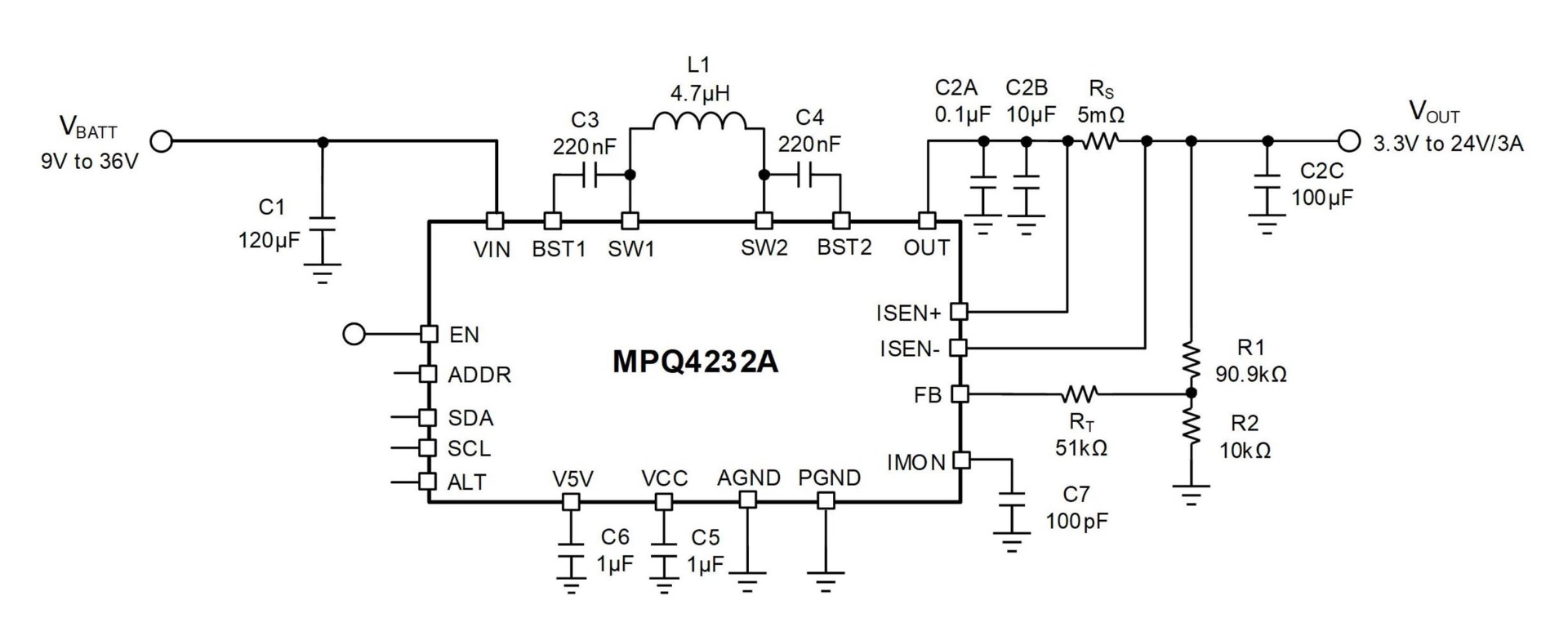

MPQ4232AGVE-AEC1

36V, 6A Buck-Boost Converter with Four Integrated MOSFETs and I²C Interface, AEC-Q100 Qualified

Features & Benefits

6A Buck-Boost Converter with Four Integrated MOSFETs
3V to 36V Operating Input Voltage (V_IN) Range, 2.7V Falling Voltage
1V to 24V Output Voltage (V_OUT) Range
I²C-Configurable Reference Voltage (V_REF) Range: 0.1V to 2.147V with 1mV Resolution
Up to 98.14% Peak Efficiency
Integrated 5V/60mA Low-Dropout (LDO) Regulator to Supply External Microcontroller Unit (MCU)
Selectable Input or Output Constant-Current (CC) Limit with 5% Accuracy via Factory Trimming
Accurate Output Current (I_OUT) Monitor
Selectable 280kHz, 420kHz, 600kHz, or 1MHz Switching Frequency (f_SW) with Frequency Spread Spectrum (FSS)
Selectable Automatic Pulse-Frequency Modulation (PFM) or Pulse-Width Modulation (PWM) Mode and Forced PWM Mode
Configurable I²C Slave Address Supported by the ADDR Pin and I²C Register
Line Drop Compensation
I²C, Alert, and One-Time Programmable (OTP) Memory
Enable (EN) Shutdown Passive Discharge
Available in a QFN-19 (4mmx5mm) Package with Wettable Flanks
Available in AEC-Q100 Grade 1

… and many more!

Description

The MPQ4230 is a buck-boost converter with four integrated power switches. The device can deliver up to 5A of output current within a certain input-supply range with excellent load and line regulation.

The MPQ4230 is designed for USB power delivery (USB PD) application. It can work well with external USB PD controller through an I²C interface. The I²C interface and MTP (2-time programmable) provide flexibility of configurable features.

Fault condition protections include CC current limiting, output OVP, and thermal shutdown (TSD). The MPQ4230 requires a minimal number of readily available, standard external components. The MPQ4230 is available in a QFN-21 (4mmx5mm) package.

Features & Benefits

Supports 60W Buck-Boost or 5A Peak I_OUT
Wide 4V to 36V Operating Input Voltage Range
3.6V to 20.5V Output Voltage Range, 10mV resolution
250kHz, 350kHz, and 420kHz Frequency Selectable or SYNC Input
Frequency Spread Spectrum Selectable
Line Drop Compensation
Accurate CC Output Current Limit
I²C Interface and 2-Times Programmable MTP (PMBus Compatible):
- PFM/PWM Mode, Current Limit, Output Voltage, Frequency Spread Spectrum, Line Drop Comp, etc.
- CRC Check for MTP Integrity
Battery Short-to-Ground Protection Driver
Load-Shedding Alert
EN Shutdown Active Discharge
Available in a QFN-21 (4mmx5mm) Package with Wettable Flanks
Available in AEC-Q100 Grade
