MP28115

MP28115

NOT RECOMMENDED FOR NEW DESIGNS

4A, 1.5MHz Synchronous Step-Down Converter

ALTERNATIVE PART

NRFND Datasheet

MP28115 continues to be in production for existing customers. Please consider this alternative for new designs:

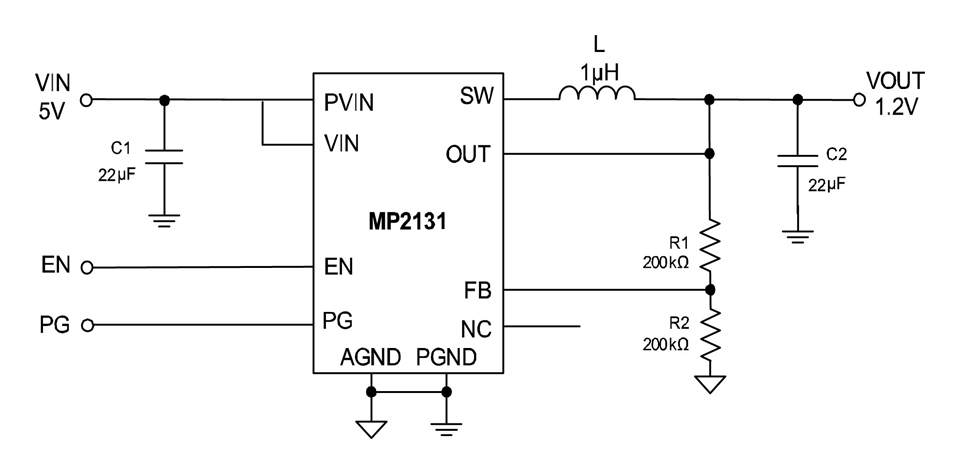

MP2131GG-Z

4A, 5.5V, 1.2MHz, High Efficiency, COT Synchronous Step-Down Converter with PG and Auto Discharge

Features & Benefits

Wide 2.7 V to 5.5 V Operating Input Range
Output Voltage as Low as 0.6 V
4 A Output Current
35 mΩ and 18 mΩ Internal Power MOSFET
Above 96% Peak Efficiency
Above 80% Light Load Efficiency
Low IQ: 19 μA
1.2 MHz Frequency
100% Duty Cycle in Dropout
0.5 ms Internal Soft-Start Time
EN and Power Good for Power Sequencing
Auto Discharge at EN Off
Short-Circuit Protection with Hiccup Mode
Available in a QFN-12 (2mm x 2mm) Package

… and many more!

Description

The MP28115 is an internally compensated 1.5MHz fixed frequency PWM synchronous step-down regulator. MP28115 operates from a 2.7V to 6V input and generates an adjustable output voltage from 0.8V to 0.9xVIN at up to 4A load current. The MP28115 integrates a 60mO high side switch and a 60mO synchronous rectifier for high efficiency without an external Schottky diode. With peak current mode control and internal compensation, the MP28115 based solution achieves minimum footprint and component count. Fault condition protection includes Hiccup short-circuit protection, cycle-by-cycle current limiting and thermal shutdown. Other features include frequency synchronization input, internal soft-start and power good output. The MP28115 is available in a small 3x3mm 10-lead QFN package.

Features & Benefits

4A Output Current
Input Operation Range: 2.7V to 6V
1.5% Output Accuracy
60mO Internal Power MOSFET Switches
All Ceramic Capacitor Design
Up to 95% Efficiency
1.5MHz Fixed Switching Frequency
Internal Soft-Start
Frequency Synchronization Input
Power Good Output
Cycle-by-Cycle Current Limiting
Hiccup Short Circuit Protection
Thermal Shutdown
3x3mm 10-Lead QFN Package

Active Part Numbers:

MP28115DQ-LF-P MP28115DQ-LF-Z

Meaning of P & Z

Evaluation Tools

4EV28115DQ-00B Evaluation Kit A, 6V, Synchronous Step-Down Switching Regulator EV Board

The EV28115DQ-00B is an evaluation board for the MP28115. The MP28115 delivers 4A continuous load current over an operating input voltage 2.7V to 6.0V. The output is adjustable over a range of 0.8V to 0.9xVIN by means of an external resistor from FB pin to ground.

The current mode control used in MP28115 provides fast transient response and cycle-by-cycle current limiting. The EV board will go into hiccup mode to protect against over current/short circuit.

This EV board can be turned on or shut down via a remote ON/OFF input that is referenced to ground. This input is compatible with popular logic devices.

This EV board also has power good indicator. The output of POK is pulled to ground when output voltage is under or over 10% of its setting voltage.
