EVQ6600L-R-00A

EVQ6600L-R-00A

35V, 1.5A, Bipolar Stepper Motor Driver Evaluation Board, AEC-Q100 Qualified

Datasheet

Description

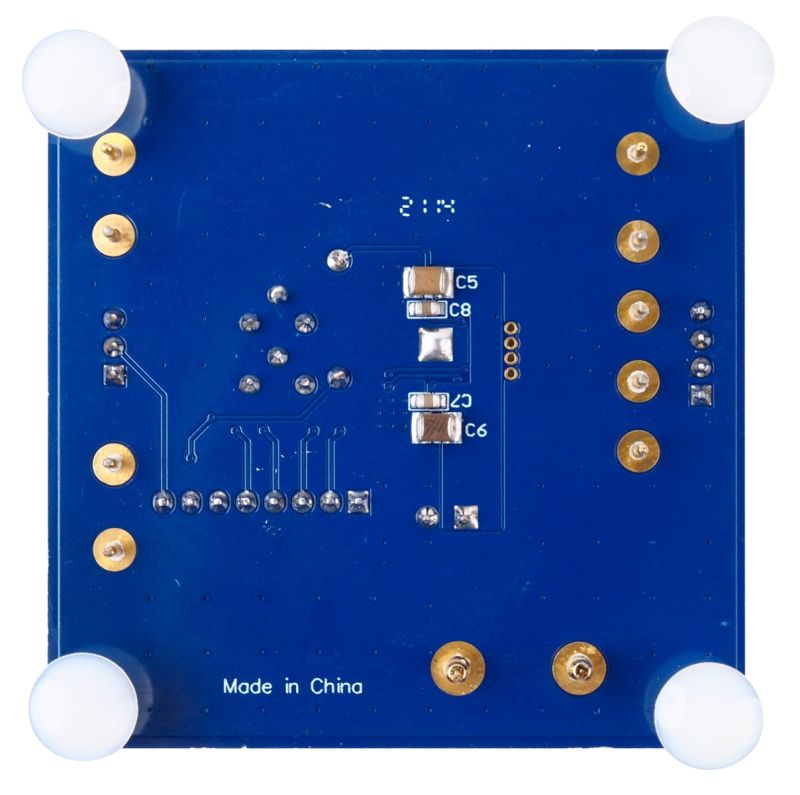

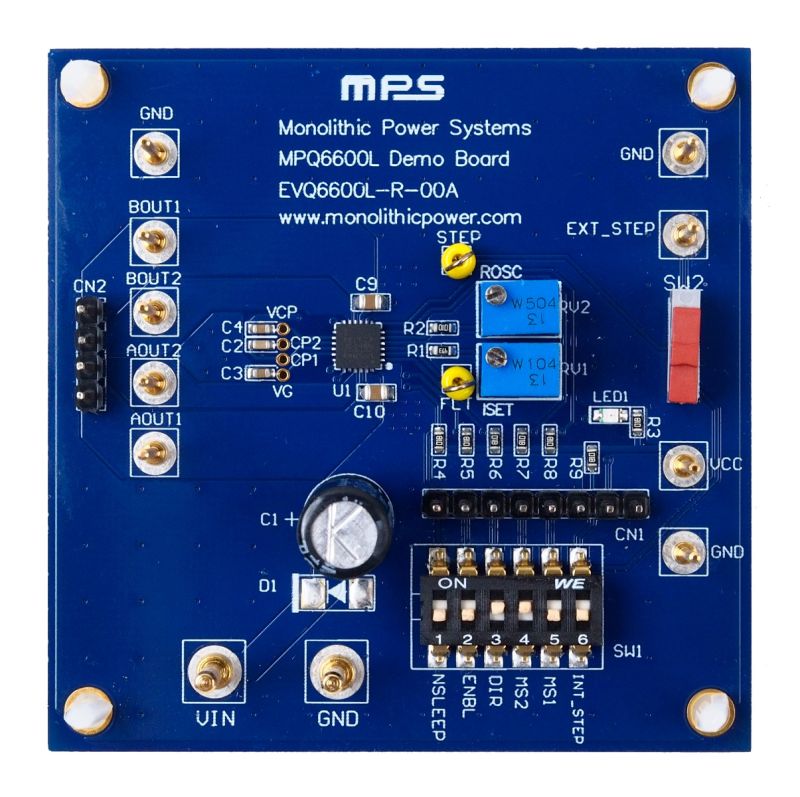

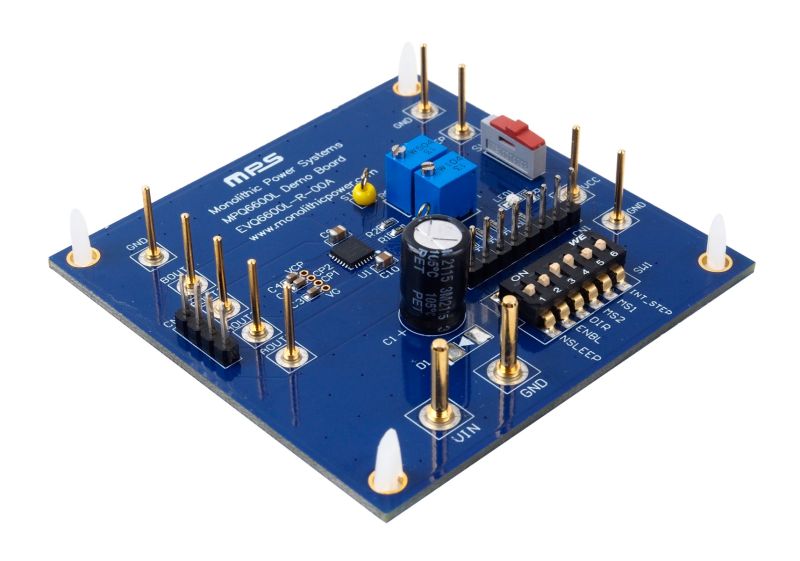

The EVQ6600L-R-00A is an evaluation board designed to demonstrate the capabilities of the MPQ6600L-AEC1, a stepper motor driver with a built-in, microstepping translator.

The MPQ6600L-AEC1 operates from a supply voltage up to 35V and can deliver motor currents up to 1.5A. It can operate a bipolar stepper motor in full-, half-, quarter-, and eighth-step modes by setting MS2 and MS1. The input control signals for the MPQ6600L-AEC1 are applied through the connector or generated on the board.

The MPQ6600L-AEC1 is available in a QFN-24 (4mmx4mm) package, and it is available in AEC-Q100 Grade 1. It is recommended to read the MPQ6600L-AEC1 datasheet prior to making any changes to the EVQ6600L-R-00A.

Product Evaluated

Features & Benefits

Wide 4.5V to 35V Input Voltage (V_IN) Range
Two Internal Full-Bridge Drivers
Internal Current Sensing and Regulation
Low On Resistance (R_DS(ON)): 195mΩ High-Side MOSFET (HS-FET) and 170mΩ Low-Side MOSFET (LS-FET)
No Control Power Supply Required
Simple Logic Interface
3.3V and 5V Compatible Logic Supply
Step Modes from Full Step to Eighth-Step
Up to 1.5A of Output Current (I_OUT)
Automatic Current Decay
Over-Current Protection (OCP)
Input Over-Voltage Protection (OVP)
Thermal Shutdown and Under-Voltage Lockout (UVLO) Protection
Fault Indication Output
Available in a QFN-24 (4mmx4mm) Package with Wettable Flanks
Available in AEC-Q100 Grade 1

Active Part Numbers:

EVQ6600L-R-00A

Buy direct from MPS

Standard Pricing

Quantity Price
1

$100.00 /unit

In stock

Arrives 3-4 business days. Shipping only $5 per order.

Quantity

100 Max per Company.
Limited Inventory to support product development.
