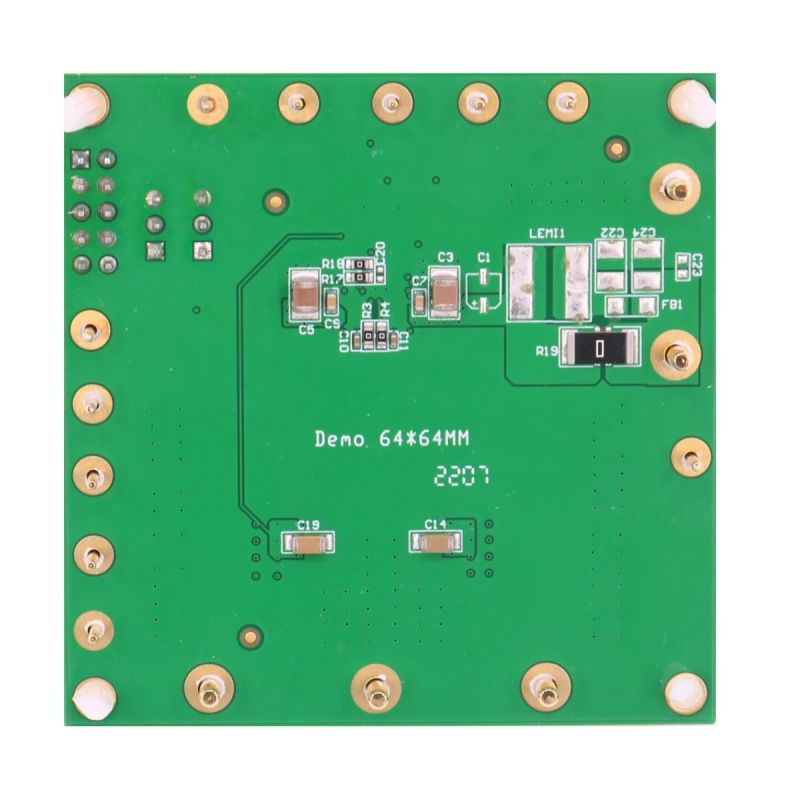

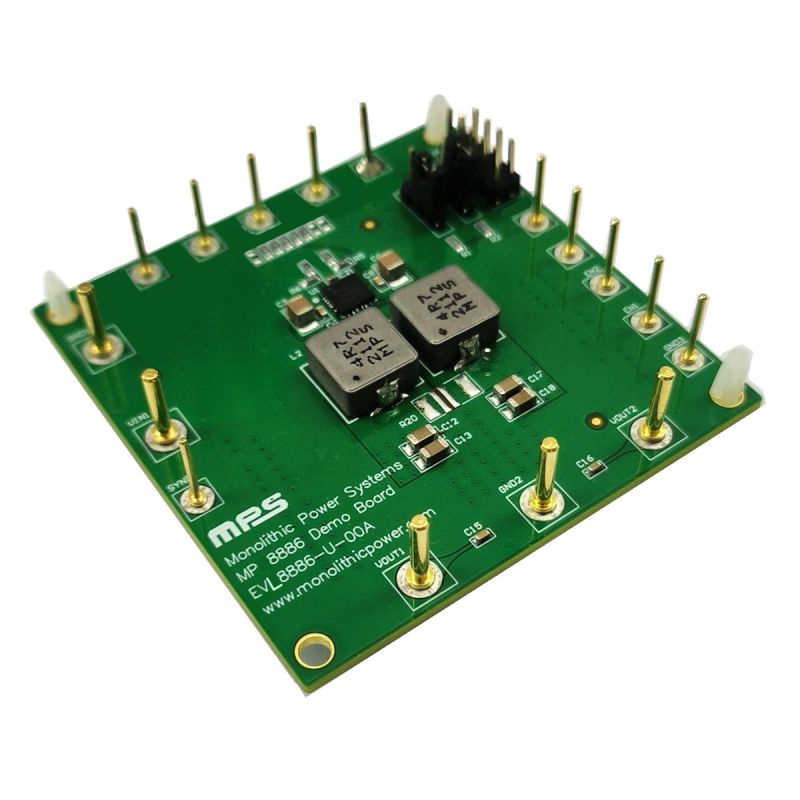

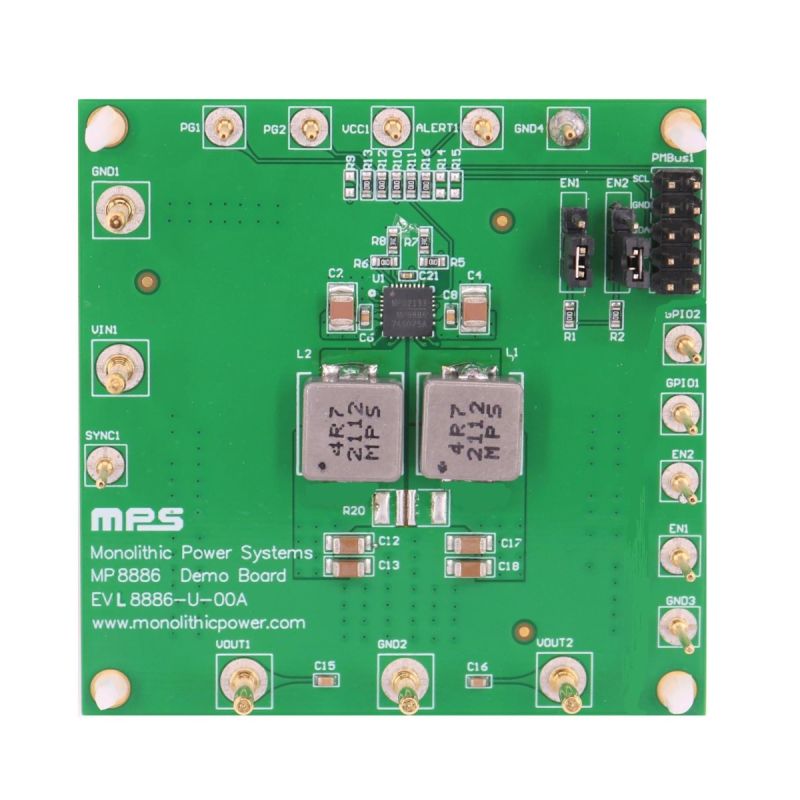

The EVL8886-U-00A evaluation board is designed to demonstrate the capabilities of the MP8886, a 45V input, dual-phase, dual-output, high-efficiency, synchronous step-down converter with a PMBus control interface and multiple-time programmable (MTP) memory. The device can achieve up to 3A of continuous output current (IOUT) for two channels, or up to 6A of continuous IOUT for a single channel, with excellent load and line regulation across a wide input voltage (VIN) range.
The output voltage (VOUT) can be controlled on the fly via the PMBus serial interface. VOUT can be set between 0.6V and 24V. The voltage transition rate, switching frequency (fSW), and power-saving modes can also be configured via the PMBus interface.
It is recommended to read the MP8886 datasheet prior to making any changes to the EVL8886-U-00A.
