EV6637-TL-00A

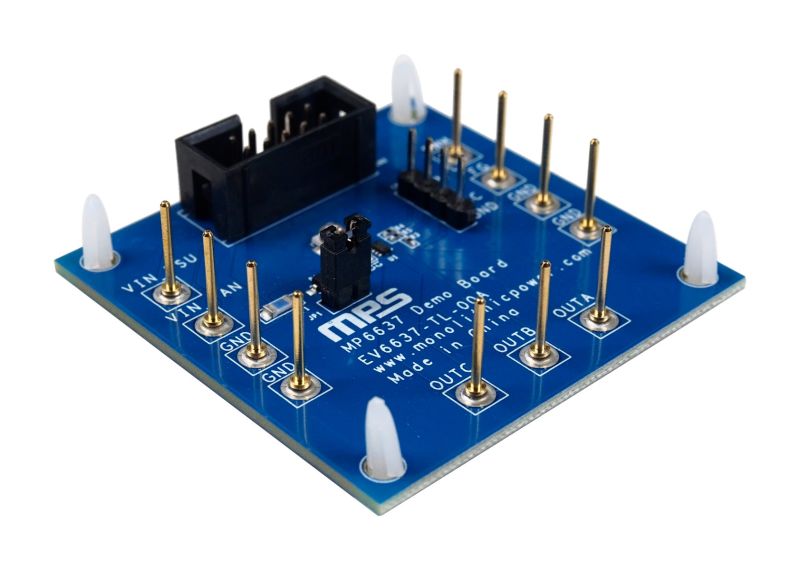

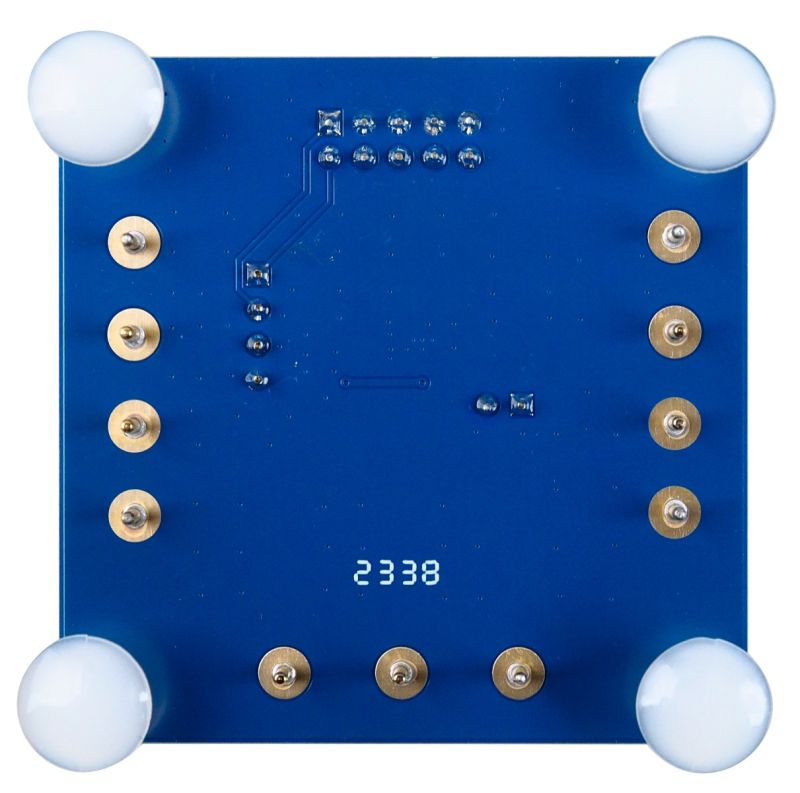

The EV6637-TL-00A is designed to evaluate the performance of the MP6637, a three-phase, sensorless, brushless DC (BLDC) motor driver with integrated power MOSFETs. The MP6637 features sinusoidal sensorless control for better efficiency and low vibration. The input voltage (V_CC) ranges from 2.5V to 5.5V.

The MP6637 controls the motor speed through the pulse-width modulation (PWM) signal with a 1kHz to 100kHz PWM input frequency.

The MP6637 features rotational speed detection. The rotational speed is an open-drain output via the FG/RD pin.

Rich protection features include input over-voltage protection (OVP), under-voltage lockout (UVLO), locked-rotor protection, over-current protection (OCP), and thermal shutdown.

The MP6637 is available in an SOT583 package.
