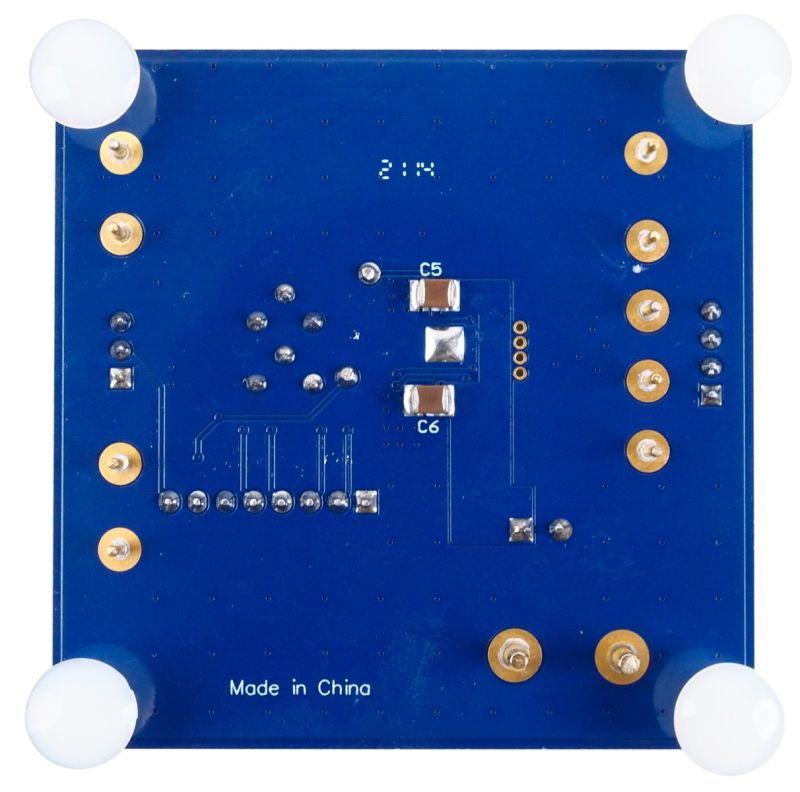

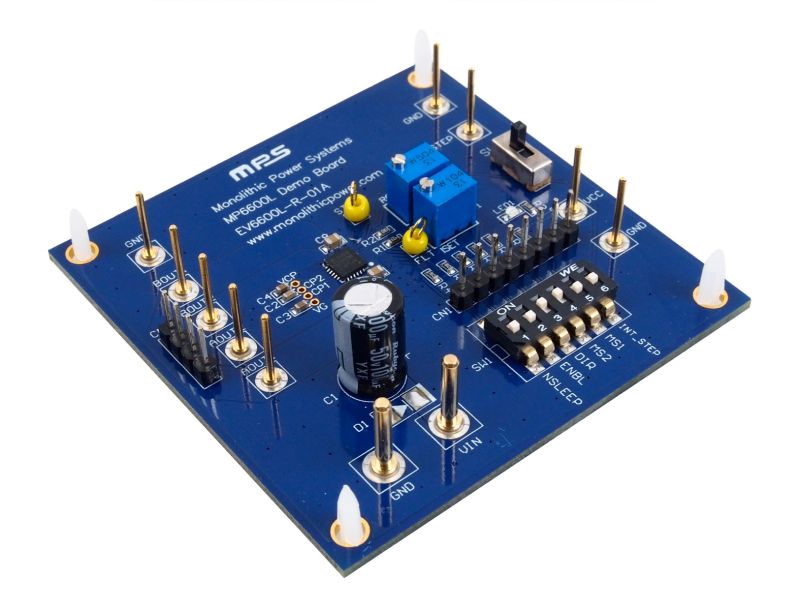

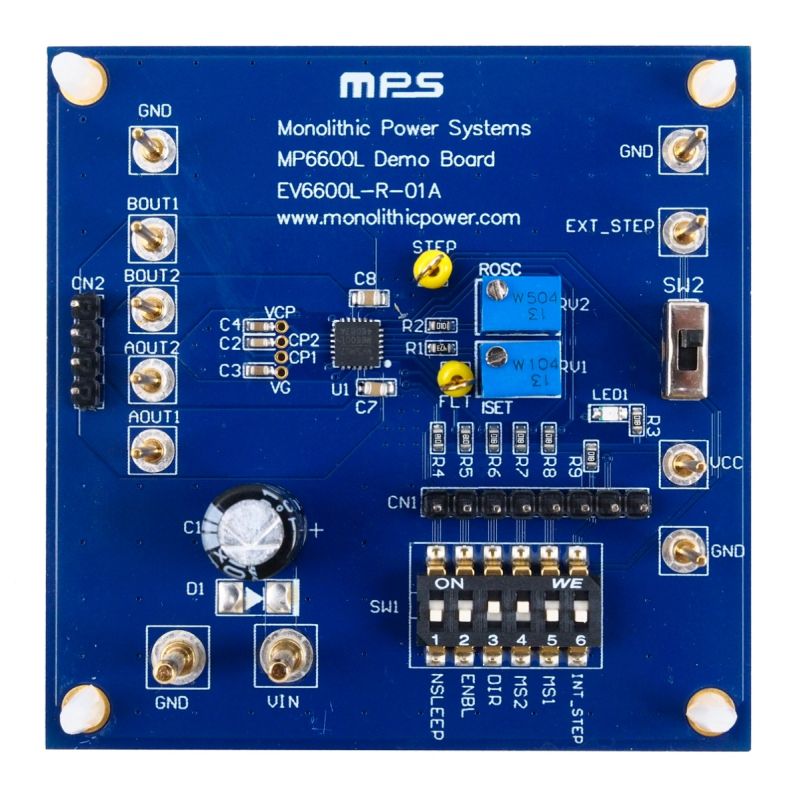

The EV6600L-R-01A is an evaluation board designed to demonstrate the capabilities of the MP6600L, a stepper motor driver with a built-in, microstepping translator and internal current sense.

The MP6600L operates from a supply voltage of up to 35V, and can deliver a motor current of up to 1.5A. It can operate a bipolar stepper motor in full-, half-, quarter-, and eighth-step modes by setting MS2 and MS1. The MP6600L's input control signals are applied through the connector or generated on the board.

The MP6600L is available in a QFN-24 (4mmx4mm) package. It is recommended to read the MP6600L datasheet prior to making any changes to the EV6600L-R-01A.
