EV6600-R-01A

EV6600-R-01A

35V, 1.5A, Bipolar Stepper Motor Driver Evaluation Board

Datasheet

Description

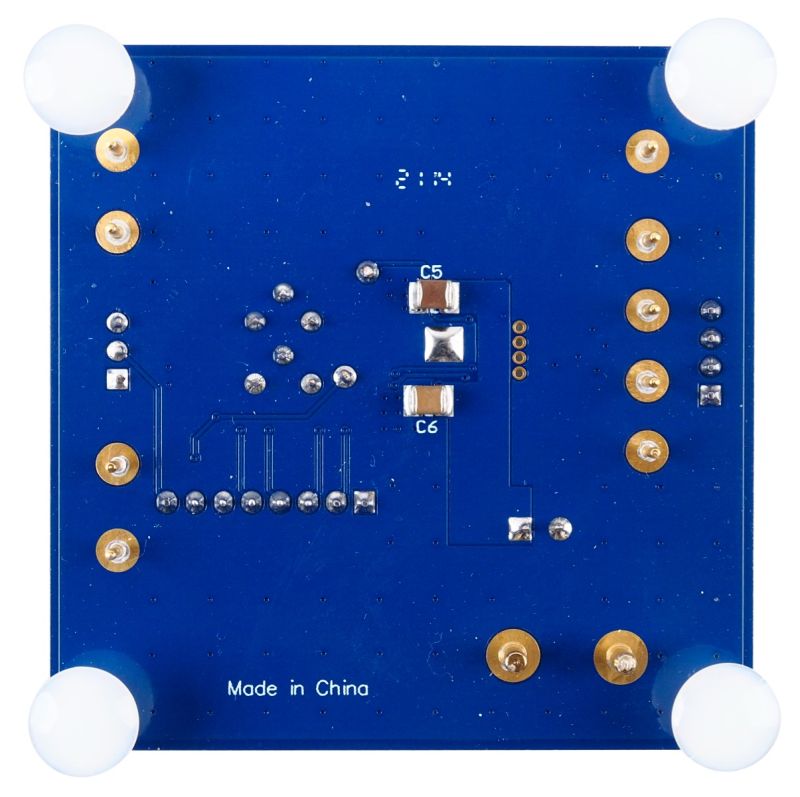

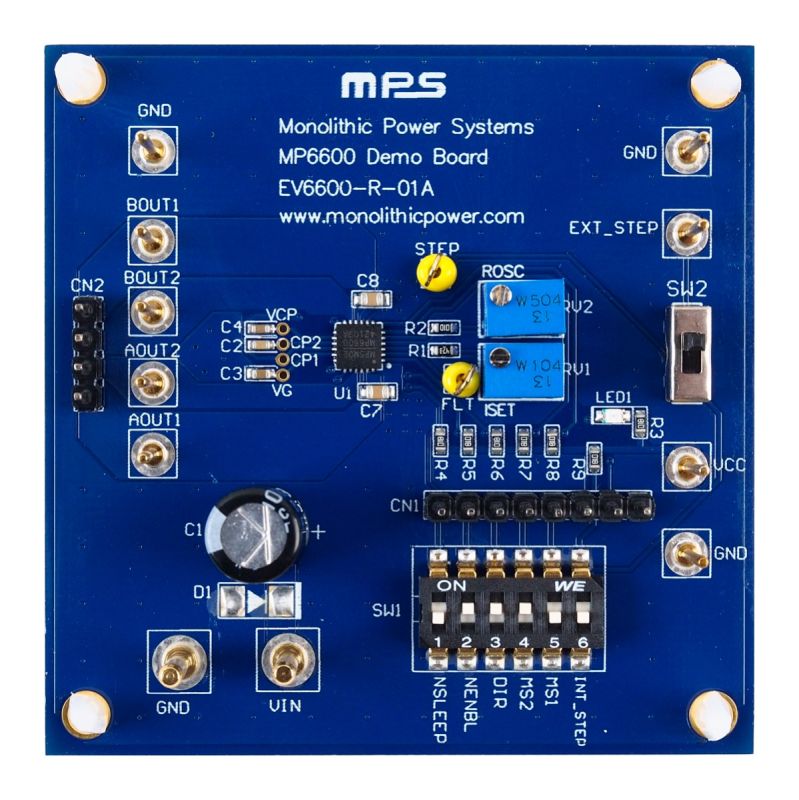

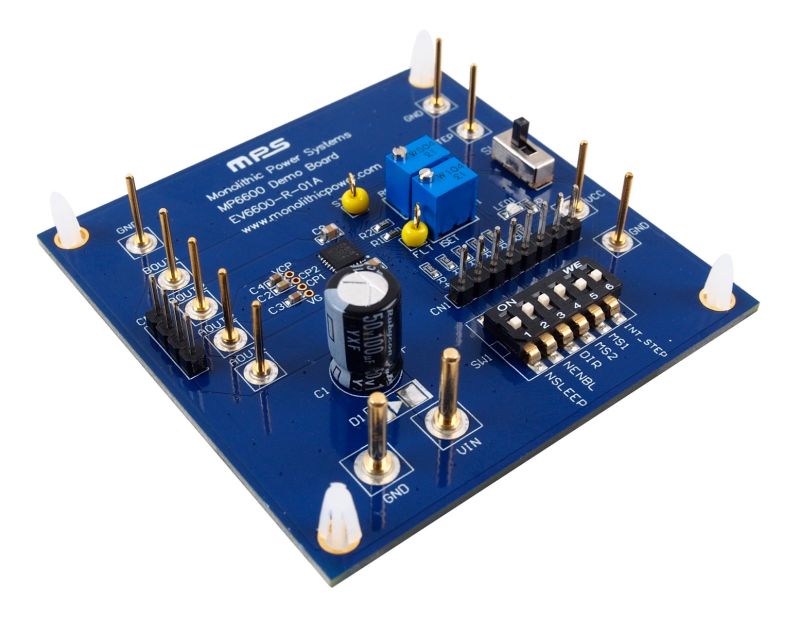

The EV6600-R-01A is an evaluation board designed to demonstrate the capabilities of the MP6600, a stepper motor driver with a built-in, microstepping translator. The MP6600 operates from a supply voltage of up to 35V, and can deliver a motor current up to 1.5A.

The MP6600 can operate a bipolar stepper motor in full-, half-, quarter-, and eighth-step modes by setting MS2 and MS1. The input control signals for the MP6600 are applied through the connector or generated on the board. It is recommended to read the MP6600 datasheet prior to making any changes to the EV6600-R-01A.

The MP6600 is available in a QFN-24 (4mmx4mm) package.

Product Evaluated

Features & Benefits

Wide 4.5V to 35V Input Voltage (V_IN) Range
Two Internal Full-Bridge Drivers
Internal Current Sensing and Regulation
Low On Resistance (R_DS(ON)) (High-Side: 195mΩ, Low-Side: 170mΩ)
No Control Power Supply Required
Simple Logic Interface
3V and 5V Compatible Logic Supply
Step Modes from Full-Step to Eighth-Step
5A Output Current (I_OUT)
Automatic Current Decay
Over-Current Protection (OVP)
Input Over-Voltage Protection (OVP)
Thermal Shutdown and Under-Voltage Lockout (UVLO) Protection
Fault Indication Output
Available in a QFN-24 (4mmx4mm) Package

Active Part Numbers:

EV6600-R-01A

Buy direct from MPS

Standard Pricing

Quantity Price
1

$100.00 /unit

In stock

Arrives 3-4 business days. Shipping only $5 per order.

Quantity

100 Max per Company.
Limited Inventory to support product development.
