EV6509-F-00A

EV6509-F-00A

1.2A, 18V, Bipolar Stepper Motor Driver Evaluation Board

Datasheet

Description

The EV6509-F-00A is an evaluation board for the MP6509GF, a bipolar stepper motor driver with dual, built-in full bridges consisting of N-channel power MOSFETs.

The device operates from a 2.7V to 18V supply voltage range, and can deliver output currents up to 1.2A per channel. The safety features
include sink and source current limits implemented with external sensors, undervoltage lockout (UVLO), and thermal shutdown.
An over-temperature output flag is available to indicate thermal shutdown.

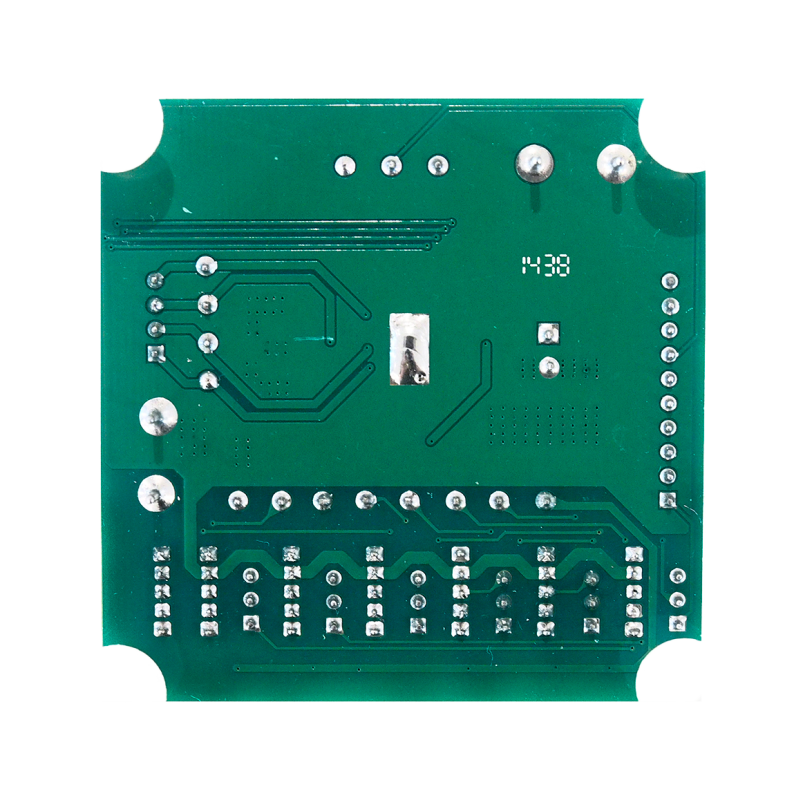

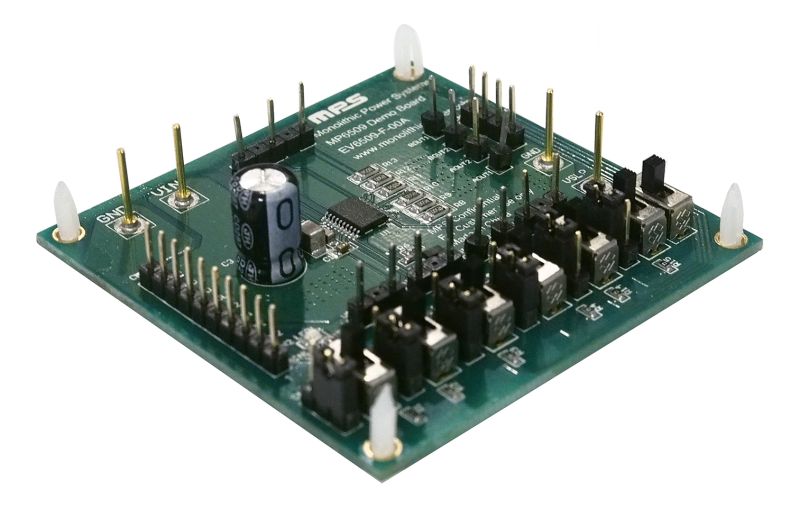

The EV6509-F-00A is a fully assembled and tested PCB. The input control signals for the MP6509 are applied through the connector, or
generated on the board. The board can drive a bipolar stepper motor with both full step and half-step mode. It also can drive two independent DC motors.

Product Evaluated

Features & Benefits

Wide 2.7V to 18V Input Voltage Range
Over-Current and Over-Temperature Indication
Alternative Input Control Signals (External or Generated on Board)
Four Selectable Current Attenuation Modes

Active Part Numbers:

EV6509-F-00A

Buy direct from MPS

Standard Pricing

Quantity Price
1

$75.00 /unit

In stock

Arrives 3-4 business days. Shipping only $5 per order.

Quantity

100 Max per Company.
Limited Inventory to support product development.
