EV6500-U-01A

EV6500-U-01A

35V, 2.5A, Bipolar Stepper Motor Driver with Internal Current Sense Evaluation Board

Datasheet

Description

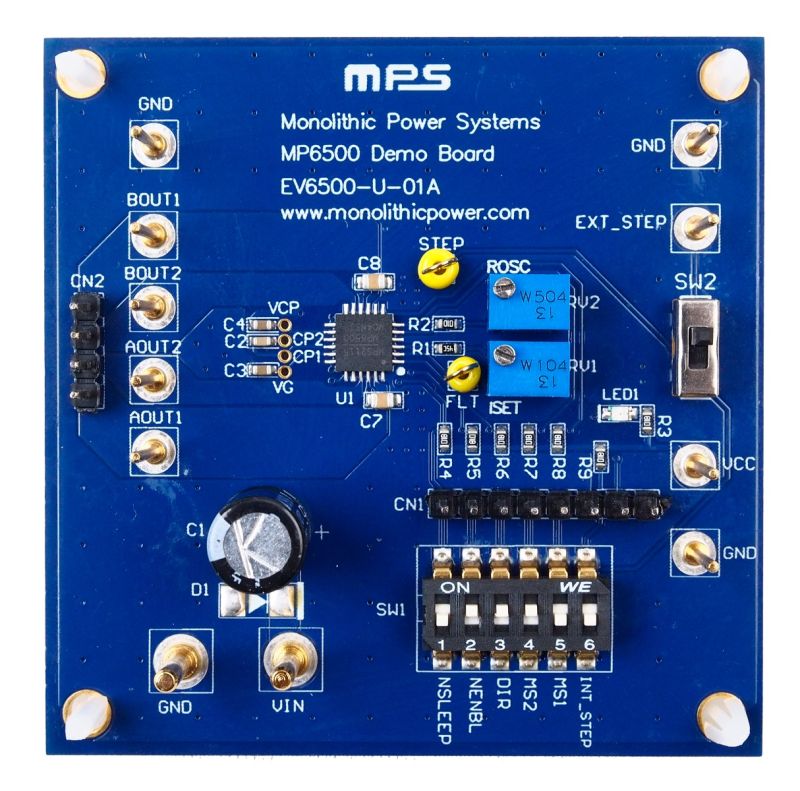

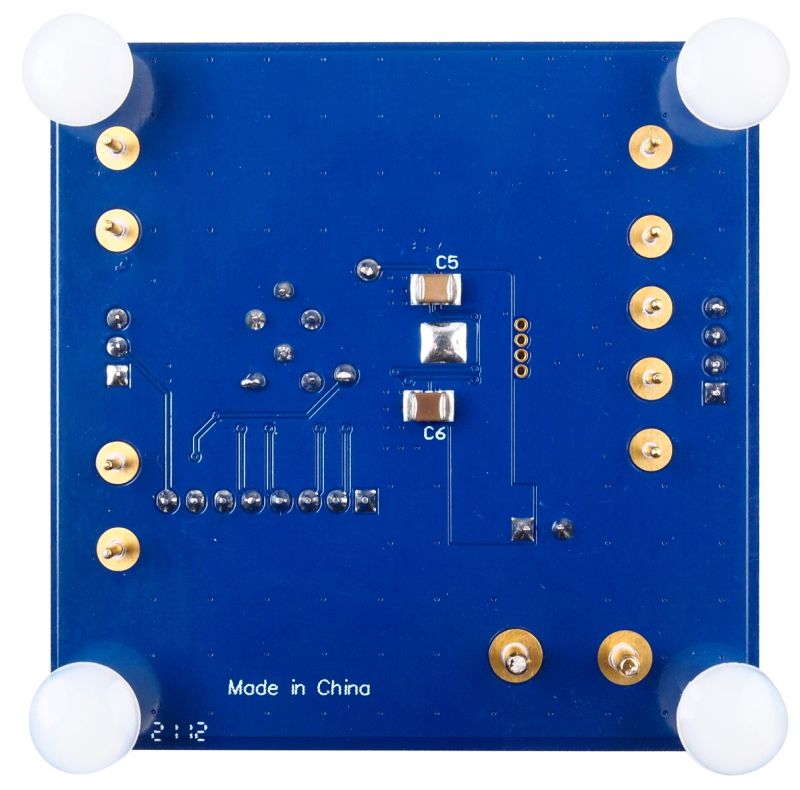

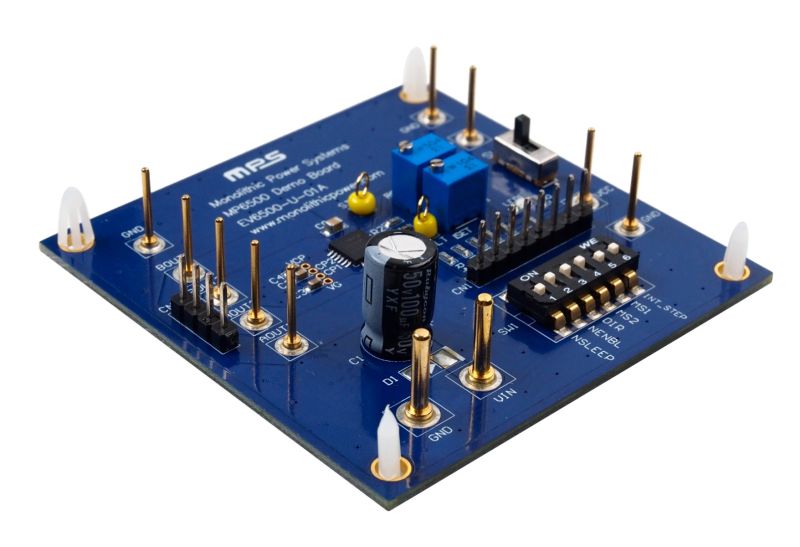

The EV6500-U-01A is an evaluation board for the MP6500GU, a stepper motor driver with a built-in, micro-stepping translator.

The MP6500 operates from a supply voltage of up to 35V and can deliver a motor current up to 2.5A. It can operate a bipolar stepper motor in full-, half-, quarter-, and eighth-step modes by setting the MS2 and MS1. The input control signals for the MP6500 are applied through the connector or generated on the board.

The MP6500GU is available in a QFN-24 (5mmx5mm) package.

Product Evaluated

Features & Benefits

Wide 4.5V to 35V Input Voltage (V_IN) Range
Two Internal Full-Bridge Drivers
Internal Current Sensing and Regulation
Low On Resistance (R_DS(ON)) (HS: 195mΩ, LS: 170mΩ)
No Control Power Supply Required
Simple Logic Interface
3.3V and 5V Compatible Logic Supply
Step Modes from Full-Step to Eighth-Step
2.5A Output Current (I_OUT)
Automatic Current Decay
Over-Current Protection (OCP)
Input Over-Voltage Protection (OVP)
Thermal Shutdown and Under-Voltage Lockout (UVLO) Protection
Fault Indication Output
Available in a QFN-24 (5mmx5mm) Package

Active Part Numbers:

EV6500-U-01A

Buy direct from MPS

Standard Pricing

Quantity Price
1

$100.00 /unit

In stock

Arrives 3-4 business days.
Shipping only $5 per order.

Quantity

100 Max per Company.
Limited Inventory to support product development.
