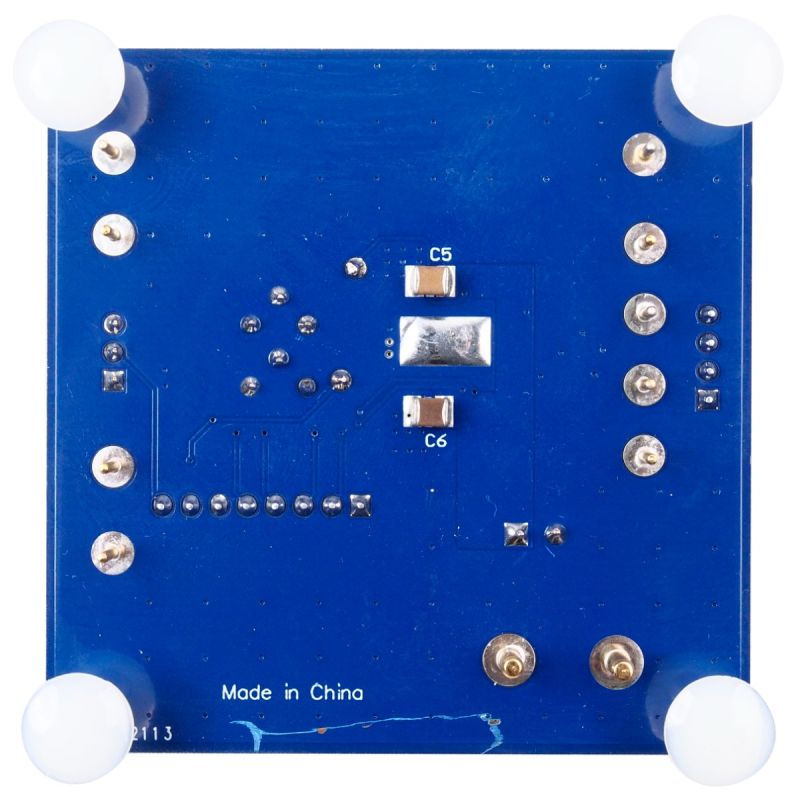

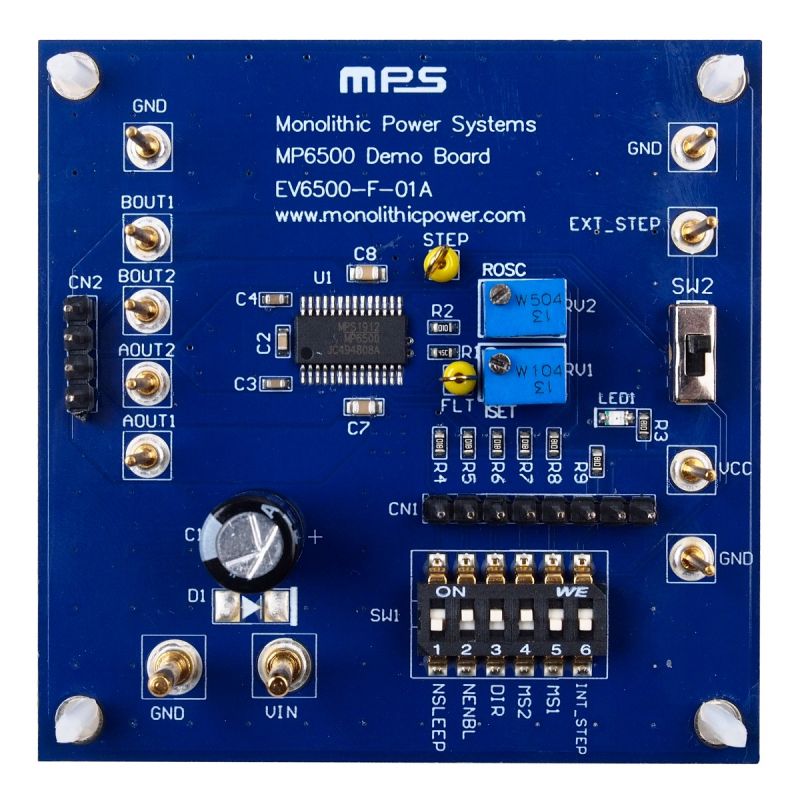

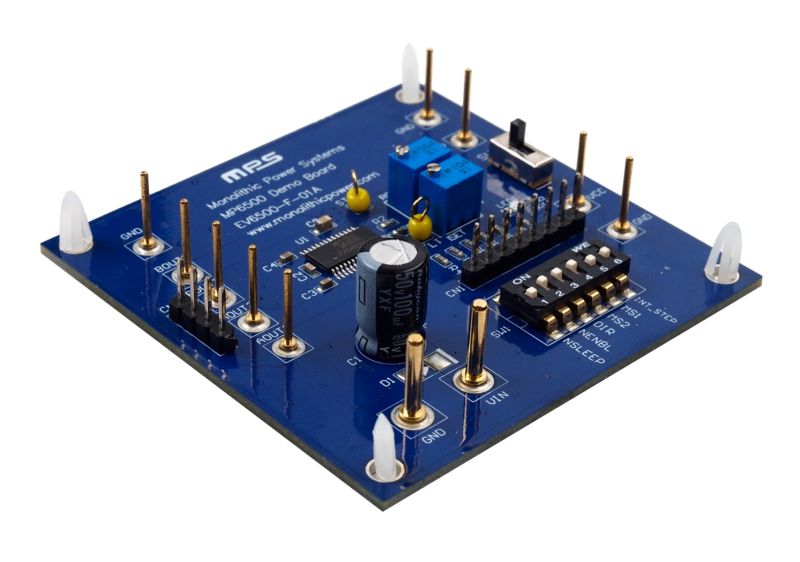

The EV6500-F-01A is an evaluation board designed to demonstrate the capabilities of the MP6500GF, a stepper motor driver with a built-in, microstepping translator.

The MP6500 operates from a supply voltage of up to 35V, and can deliver a motor current up to 2.5A. It can operate a bipolar stepper motor in full-, half-, quarter-, and eighth-step modes by setting MS2 and MS1. The input control signals for the MP6500 are applied through the connector or generated on the board.

The MP6500GF is available in a TSSOP-28EP package. It is recommended to read the MP6500 datasheet prior to making any changes to the EV6500-F-01A.
