EV5512-V-00A

18V Energy Storage and Management Unit for SSD Application Evaluation Board

Active

Datasheet

Shopping Cart

Order

Overview
Design Resources
Technical Forum
Quality
Order

EV Kits and EV Boards
EV5512-V-00A

EV5512-V-00A

18V Energy Storage and Management Unit for SSD Application Evaluation Board

Active

Datasheet

Description

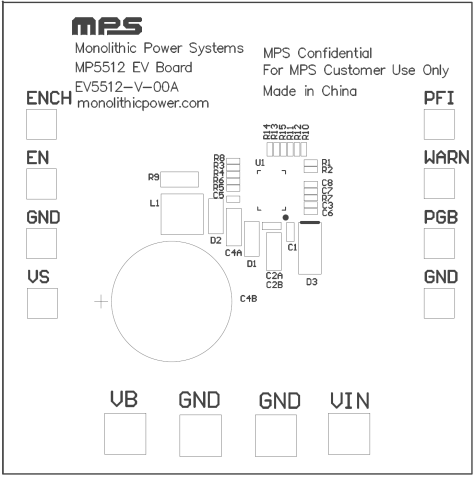

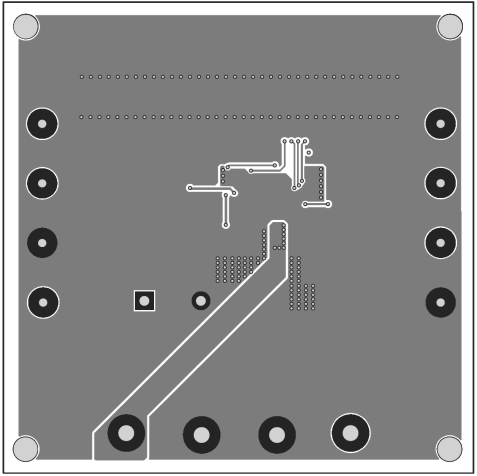

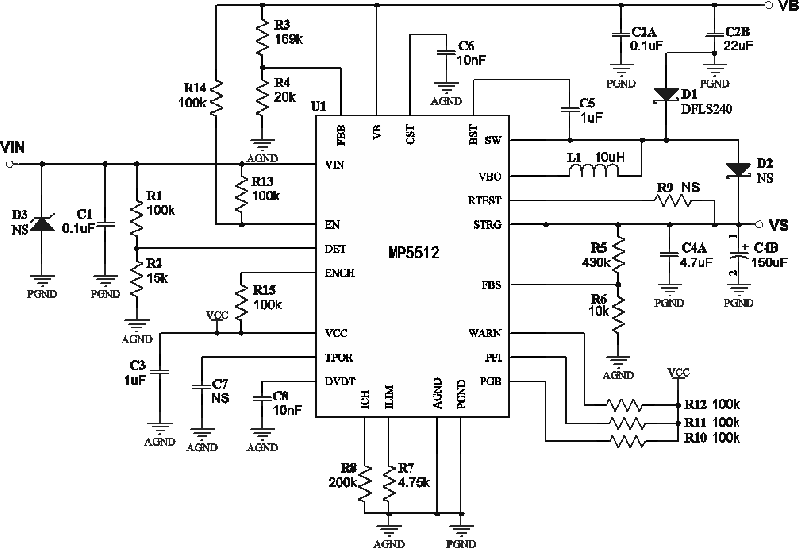

EV5512-V-00AEvaluation Board is designed to demonstrate the capabilities of MP5512. MP5512 is a peak power assist device intelligently designed for use in solid state drives and smart speakers.

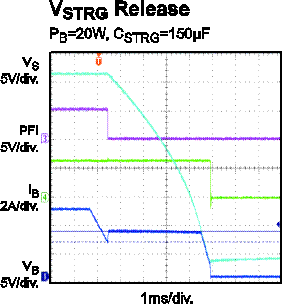

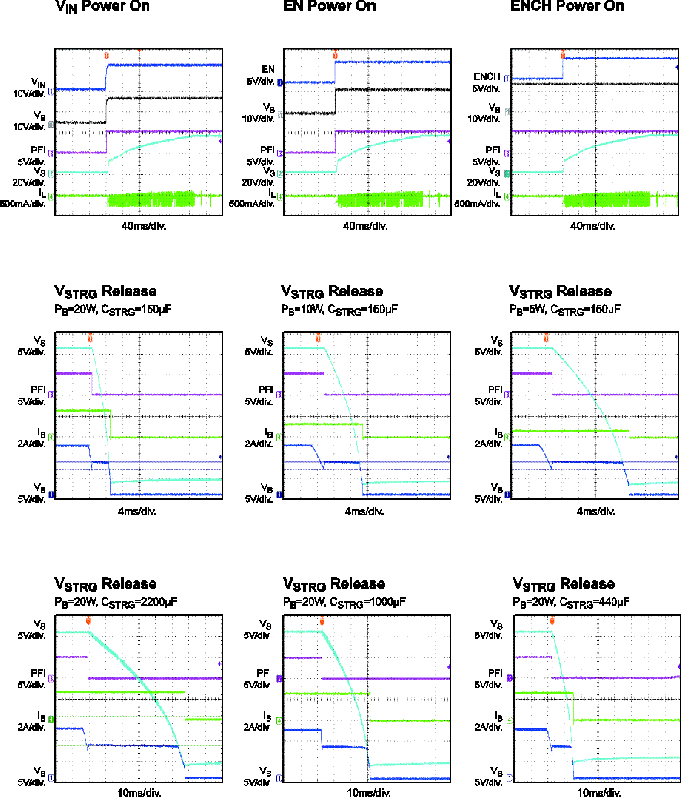

MP5512 supports input hot-swap, input reverse current protection, input power failure indication and high efficient power backup. The built-in boost mode converter charges storage bulk capacitors to a programmed voltage while the system is powered up. For smart speakers, during peak power consumption, MP5512 supplies additional energy to the system to prevent browning out and system reset. For SSDs, in the case of input power failure, MP5512 transfers energy to support system data backup.

MP5512 is available in QFN28-4x5mm package.

Product Evaluated

18V, 4.5A, High-Efficiency Energy Storage and Hot-swap Management Unit for enterprise PCIe/SAS SSD Applications

Features & Benefits

Wide 4V to 18V OperatingInputRange
Programmable up to 40V Storage Voltage
Up to 4.5A Input Current Limit
Input Reverse Current Protection
Adjustable Slew Rate for VB Start-up Rising
14mΩ MOSFET for Input Hot-swap
High EfficiencyPowerBackup with Internal 140mΩ and 110mΩPowerSwitches
Input Failure Indicator and Input Early Warning for V_IN
Programmable Input Current Limit and Current Monitor
Stable Work with 0.1μF Input Capacitor for Hot-swap
Thermal Protection
Available in a QFN28 (4mm×5mm) Package
