EV5416-R-00B

Active

5V Power Management IC Evaluation Board

  • Quantity Price
  • 1
    $25.00 /unit
In stock

Arrives 3-4 business days.
Shipping only $5 per order.

Talk to an Engineer or get a Quote

Datasheet (EN)

You have a basic account.
A myMPS+ account is needed.

Upgrade to myMPS+

Product Description

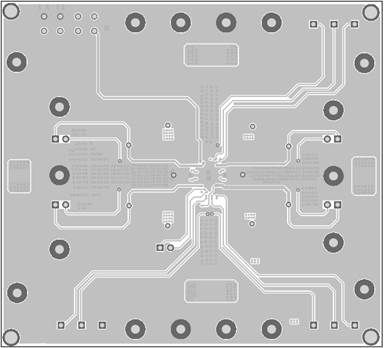

The EV5416-R-00B is an evaluation board for MP5416, a complete power management solution which integrates four high efficiency step-down DC/DC converters, five low dropout regulators and flexible logic interface.

COT control DC/DC converter provides fast transient response. 1.5MHz default fixed switching frequency during CCM mode greatly reduces external inductor and capacitor value. Full protection features include UVLO, OCP and thermal shutdown.

Output voltage is adjustable through I2C bus or preset by OTP (One Time Programmable). The power on/off sequence is also programmable by OTP or can be controlled through I2C bus online.

The MP5416 requires a minimal number external components, and is available in space-saving 28-pin QFN28 (4x4mm) package. Electrical Specification.

Product Features

  • High Efficiency Step-Down Converters
    • Buck1: 4.5A DC/DC Converter
    • Buck2: 2.5A DC/DC Converter
    • Buck3: 4A DC/DC Converter
    • Buck4: 2A DC/DC Converter
    • 2.8V to 5.5V Operating Input Range
    • Adjustable Switching Frequency
    • Programmable Forced PWM/Auto PFM/PWM Mode
    • Hiccup Over Current Protection
  • Low Dropout Regulators
    • One RTC Dedicate LDO
    • Four Low Noise LDOs
    • Two Separate Input Power Supplies
    • 100mV Dropout at 300mA Load
  • System
    • I2C Bus and OTP
    • Power On/off Button
    • Power On Reset Output
    • Flexible Power On/off Sequence via OTP
    • Flexible DC/DC, LDO On/off via OTP
    • ±4kV HBM and ±2kV CDM ESD Rating for all pins

Parametrics

  • IC Supported 1MP5416
  • IC Supported 2MP5416 OTP GUI
  • EV PartNumber 1EVKT-USBI2C-02
  • EV PartNumber 2EVKT-5416

MP5416


5V PMIC with High-Efficiency 4.5A/4A/2.5A/2A Four Step-Down Converters, Five LDOs with I2C and OTP

The MP5416-0001 is a complete power management solution that integrates four high-efficiency, step-down, DC/DC converters, five low-dropout regulators, and a flexible logic interface. A constant-on-time (COT) control DC/DC converter provides fast transient response. The 1.5MHz default fixed switching frequency during continuous conduction mode (CCM) reduces the external inductor and capacitor values greatly. Full protection features include under-voltage lockout (UVLO), over-current protection (OCP), and thermal shutdown. The output voltage is adjustable through the I2C bus or pre-set by the one-time programmable (OTP) function. The power on/off sequence is also programmable by the OTP or can be controlled through the I2C bus online. The MP5416-0001 requires a minimal number of external components and is available in a space-saving, 28-pin QFN (4mmx4mm) package.

MP5416 OTP GUI


I2C communication to configure, read, OTP and monitor system.

MP5416 I2C GUI with OTP allows full read and write access to the MP5416 registers through I2C. This GUI allows for full programming configuration to the MP5416 utilizing OTP. This software is designed to help you more easily use the MP5416 with I2C function.

Software Requirements:

Windows 7 or later

.NET Framework 4.0

Hardware Requirements:

PC with USB port

22.2 MB of available space

EVKT-USBI2C-02


Communication Interface Device USB to I2C/PMBus

EVKT-USBI2C-02 is the evaluation kit that provides the USB to I2C port as well as PMBus capabilities. It is designed to work with MPS I2C and PMBus products, and Virtual Bench Pro, and I2C GUI tools.  Together with MPS Virtual Bench Pro and I2C GUI tools, it provides a quick and easy way to evaluate the performance of MPS digital products.

The EVKT-USBI2C-02 kit includes:

  • 1 USB to I2C communication device interface
  • 1 USB cable
  • 1 10-pin ribbon cable
  • 1 3-pin ribbon cable
  • Thumbdrive with datasheet and driver files

$25.00 + tax


EVKT-5416


MP5416 Evaluation Kit 2.8-5.5V, Power Management IC with Four Buck Converters and 5 LDOs

The EVKT-5416 is an evaluation kit for the MP5416, a complete power management IC, which integrates four high-efficiency, step-down, DC/DC converters, five low-dropout regulators, and flexible system configurations via I2C. The kit allows for quick evaluation of the PMIC and offers One-Time Programming (OTP) capabilities, which allow users to program custom configurations, supporting a wide range of designs.

$75.00 + tax
