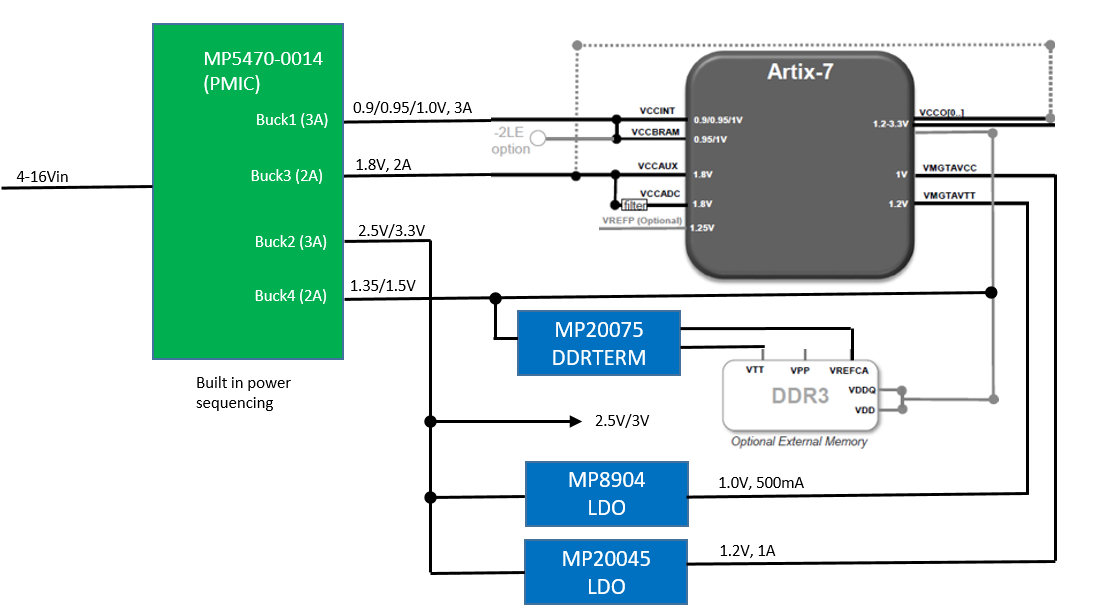

Artix - 7 PMIC Reference Design

For more information on reference designs

Contact Us

Response within 2 business days

AMD Xilinx part numbers:
  • XC7A12T
  • XC7A15T
  • XC7A25T
  • XC7A35T
  • XC7A50T
  • XC7A75T
  • XC7A100T
  • XC7A200T


Contact MPS with exact requirements

MPS Products

 Rail Number  Rail  Voltage (V)     Seq      MPS Part Number (max current)
1

VCCINT, VCCBRAM

0.95/1V ±5%

0.9V ±3% (-2LE)

1/3

MP5470 buck1 (3A)

2

VCCAUX& VCCADC

1.8V ±5%

2/2

MP5470 buck3 (2A)

VCC_DDR

1.5/1.35V ±5%

3/1

MP5470 buck4 (2A)

VCC_IO (optional)

2.5/3.3V±5%

3/1

MP5470 buck2 (3A)

3

VMGTAVTT

1V ±2.5%

2/2

MP8904 (500mA)

4

VMGTAVCC

1.2V ±3%

2/2

MP8904 (500mA)

DDR_VTT

DDR_VREF

VCC_DDR/2

3/1

MP20075 (3A)
